Arduino UNO Q 5V GPIO Kit

SKU: KZ-0092

Table of Contents

1. Product Overview
2. Safety Instructions
3. Kit Contents
4. Hardware Introduction
5. Installation Instructions
6. Software Preparation
7. Basic Experiments

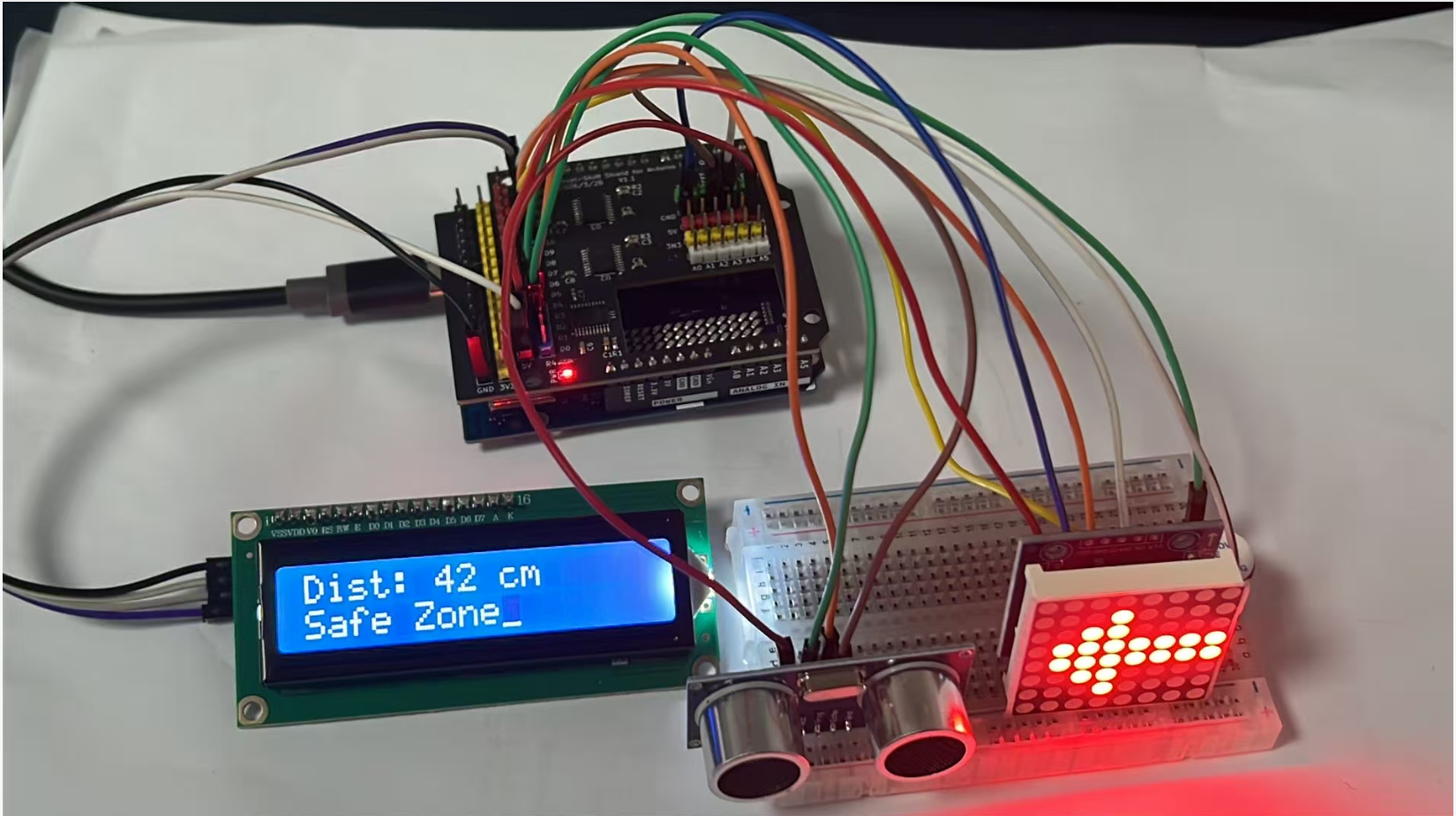

8. Comprehensive Project
9. Troubleshooting
10. Appendix

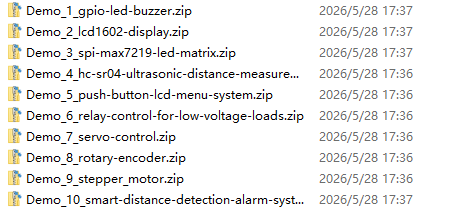

11. Download DemoCodes Zip files

1. Product Overview

The Arduino UNO Q 5V GPIO Kit is a comprehensive learning and prototyping package designed to bridge the gap between the Arduino UNO Q's 3.3V GPIO logic and the vast ecosystem of 5V-compatible sensors, displays, and actuators.

1.1 Why This Kit?

The Arduino UNO Q uses an STM32U585 Cortex-M33 microcontroller with 3.3V GPIO logic levels. While some digital pins are 5V-tolerant in digital mode, the analog inputs (A0–A5) and I2C pins in analog mode must never exceed 3.6V — voltages above VDD + 0.3V will permanently damage the chip.

Most traditional Arduino sensors, displays, and actuators on the market are designed for 5V logic levels. Direct connection without proper level translation results in:

• Communication failure: 3.3V HIGH may not be recognized as logic "1" by 5V devices
• Device damage: 5V signals back-feed into 3.3V pins, burning the MCU
• Analog reading distortion: 5V sensor outputs exceed the 3.3V ADC range
• USB-to-TTL 1.8V UART debug module: A dedicated debug adapter that connects to the Arduino UNO Q's JCTL interface to provide direct serial console access to the on-board Linux system at 115200 bps — handy for low-level debugging when a USB hub is not available.

The 52Pi EP-0257 Level-Shift Shield uses the TI TXS0108EPWR auto-direction-sensing bidirectional level translator to safely convert all digital and analog pins to 5V-compatible levels, while preserving the onboard LED matrix visibility window.

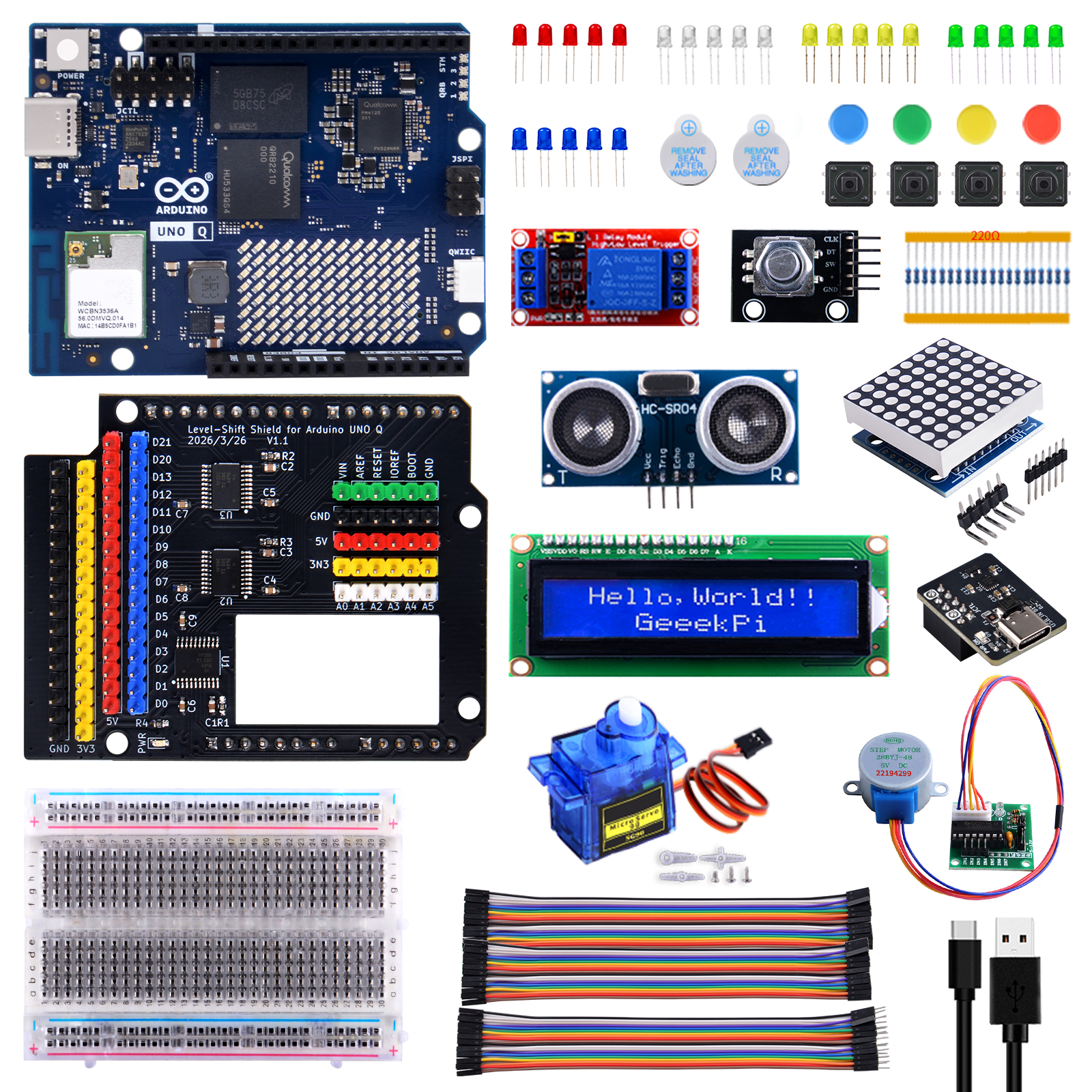

Figure 1-1: Complete kit contents overview

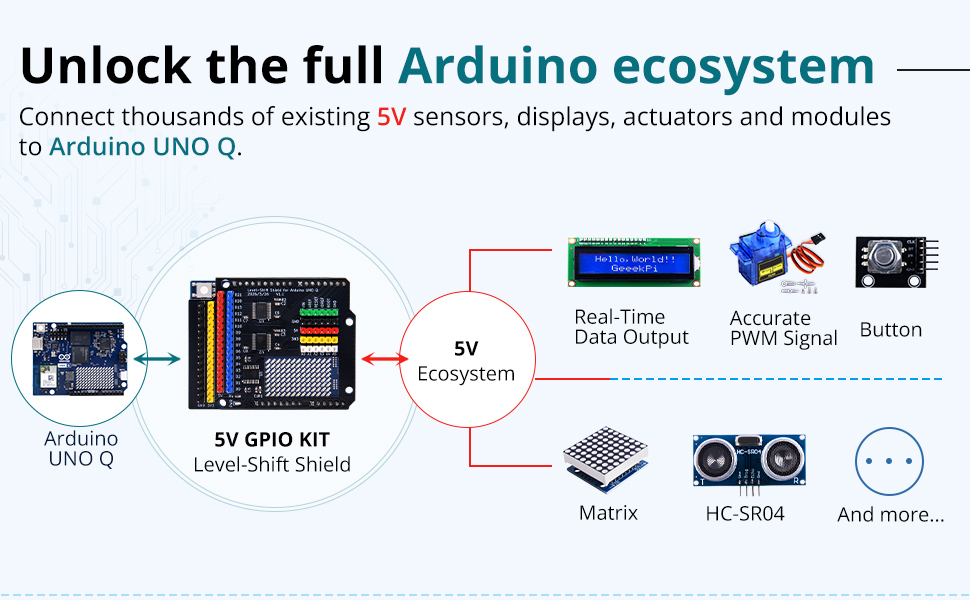

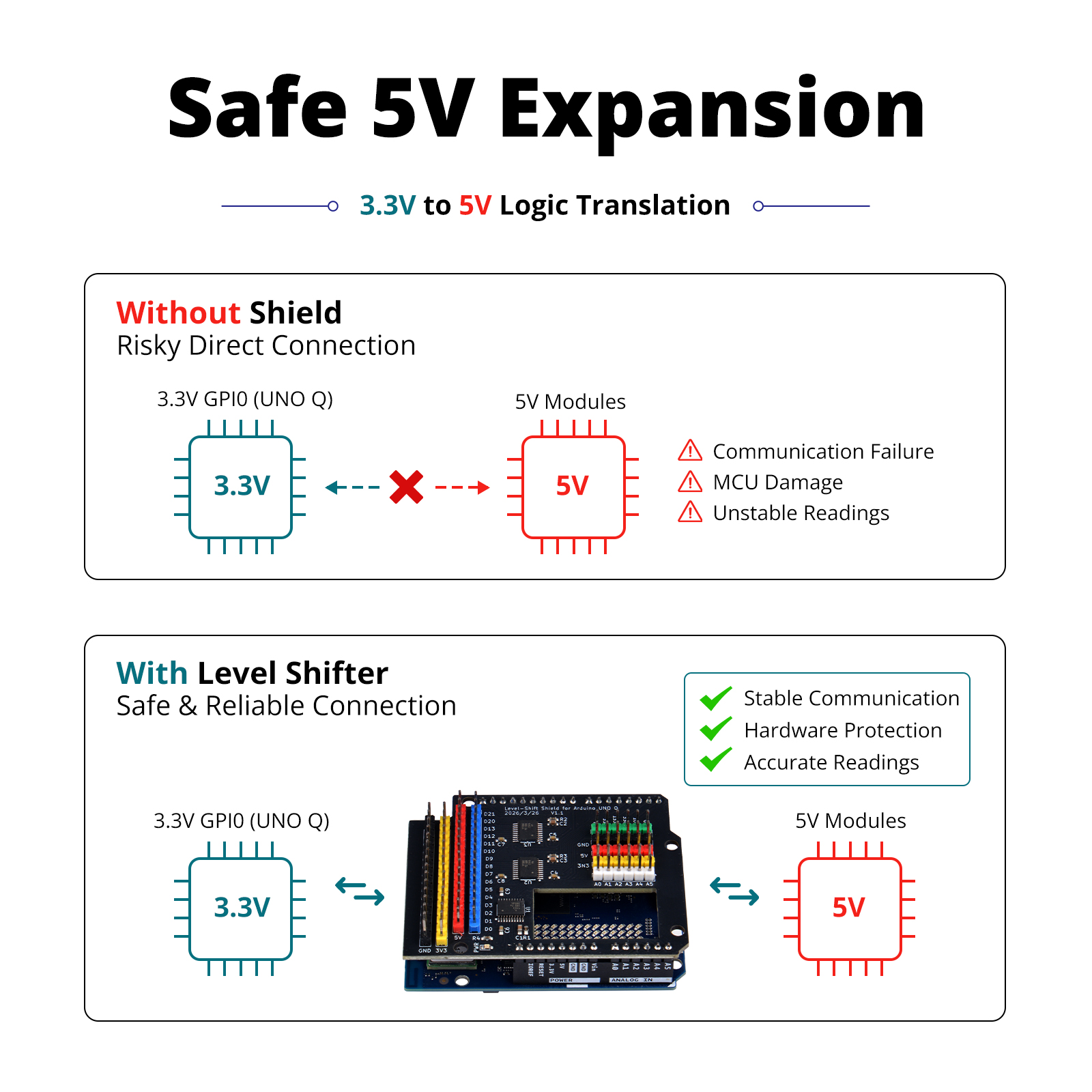

Figure 1-2: Safe 5V expansion with level-shifting shield

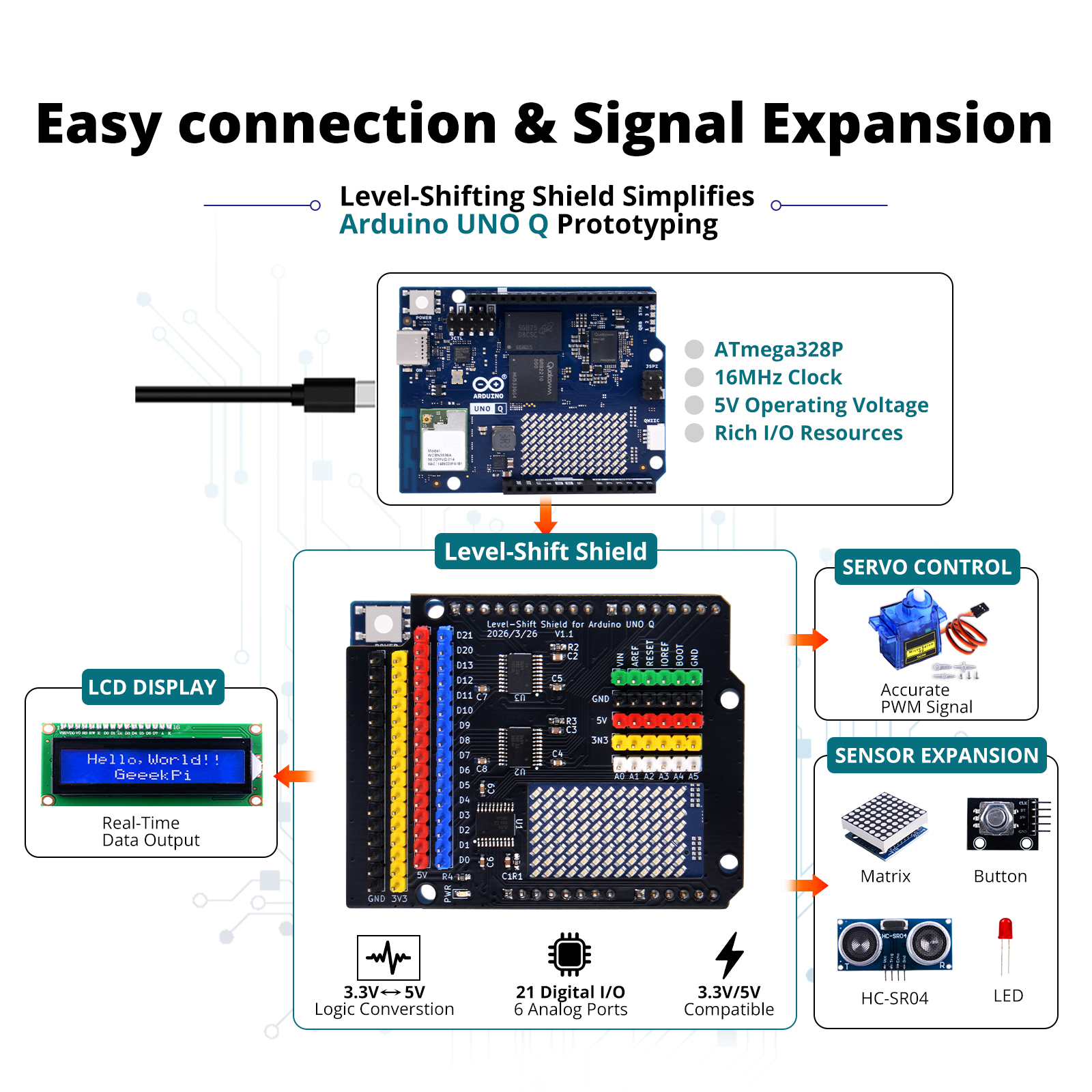

Figure 1-3: Easy connection and signal expansion diagram

2. Safety Instructions

⚠️ Read these safety instructions carefully before using this kit.

2.1 General Safety Warnings

1. Power Off Before Wiring: Always disconnect USB or external power before connecting or disconnecting any components. Hot-swapping Dupont lines may cause voltage surges that damage sensitive components.

2. Green Pin Warning: The green pins on the EP-0257 shield (VIN, AREF, IOREF, RESET, BOOT) are pass-through pins directly connected to the UNO Q internal circuitry. Never connect 5V signals to these pins — doing so will permanently damage the mainboard.

3. Voltage Limits: When using A0–A5 as analog inputs, input voltage must never exceed 3.3V. A voltage divider (e.g., 10kΩ + 20kΩ) is required when interfacing with 5V analog sensors.

4. High Voltage Prohibition: The relay module in this kit is intended for low-voltage loads only (<< 30V DC). Controlling mains voltage (220V AC) requires professional knowledge and insulation protection — beginners are strictly prohibited from attempting this.

5. Current Budget: The UNO Q USB power total is ~500mA, and the 3.3V regulator output is ~150mA. High-power devices (servo, relay, motor) must use external power with a common ground connection.

6. Servo Power Requirement: The SG90 servo must be powered by an external 5V supply. The UNO Q should only provide the PWM signal and share a common ground.

2.2 Safe Operating Practices

3. Kit Contents

3.1 Component List

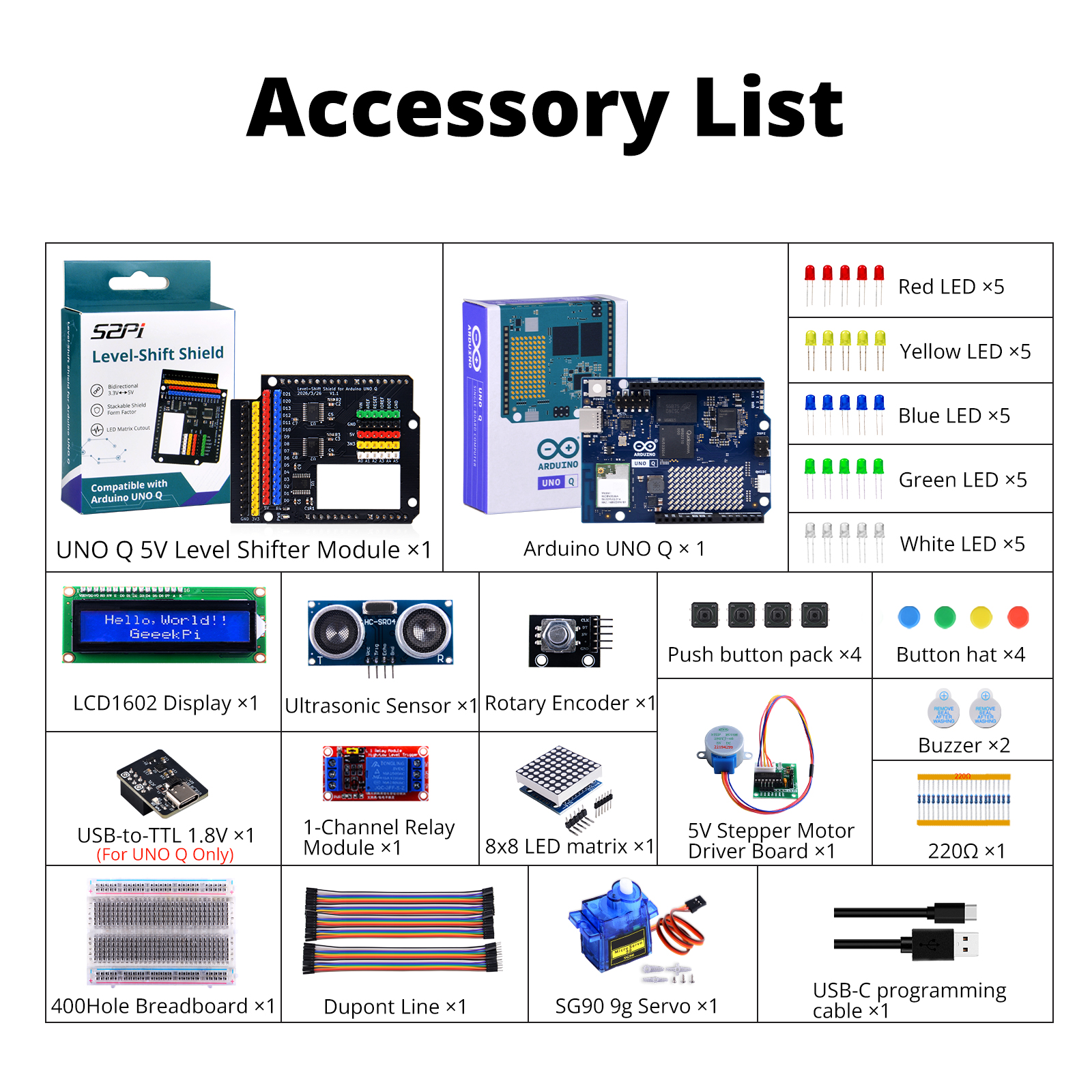

Figure 3-1: Complete accessory list with all components

3.2 Additional Components

Based on the product images, the kit also includes:

• Red LED × 5
• Yellow LED × 5
• Blue LED × 5
• Green LED × 5
• White LED × 5
• Button hat × 4
• Buzzer × 2
• 220Ω Resistor pack × 1

4. Hardware Introduction

4.1 Arduino UNO Q Board

The Arduino UNO Q features:

• MCU: STM32U585 Cortex-M33 @ 160MHz

• Operating Voltage: 5V (via USB-C or DC jack)

• GPIO Logic: 3.3V (5V-tolerant on digital pins only)

• I/O: 21 Digital I/O, 6 Analog Inputs (A0–A5)

• Communication: I2C (A4/A5), SPI (D10–D13), UART (D0/D1)

• Onboard Features: LED matrix, USB-C programming port

Figure 4-1: Arduino UNO Q with key features highlighted

4.2 EP-0257 Level-Shift Shield

The 52Pi EP-0257 shield is the core component enabling safe 5V expansion:

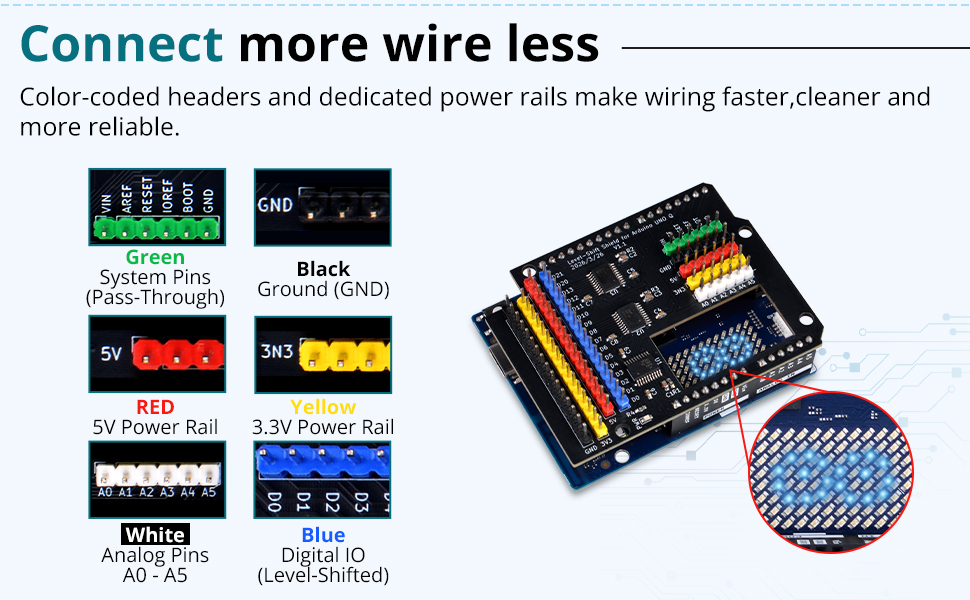

Figure 4-2: Shield mounting orientation

4.3 Module Specifications

LCD1602 I2C Display

• Interface: I2C (SDA/SCL)
• Controller: PCF8574 I/O expander
• Address: 0x27 (default) or 0x3F
• Backlight: Blue LED
• Voltage: 5V

MAX7219 8×8 LED Matrix

• Interface: SPI (CS, DIN, CLK)
• Driver: MAX7219 dedicated LED driver
• Cascade: Supports multiple modules chained
• Voltage: 5V

HC-SR04 Ultrasonic Sensor

• Range: 2cm – 400cm
• Accuracy: ±3mm
• Trigger: 10μs HIGH pulse
• Echo: Pulse width proportional to distance
• Voltage: 5V

SG90 Servo

• Type: Micro servo, 9g
• Rotation: 0°–180°
• PWM: 20ms period, 0.5ms–2.5ms pulse width
• Current: ~100mA typical, ~250mA stall
• Voltage: 5V

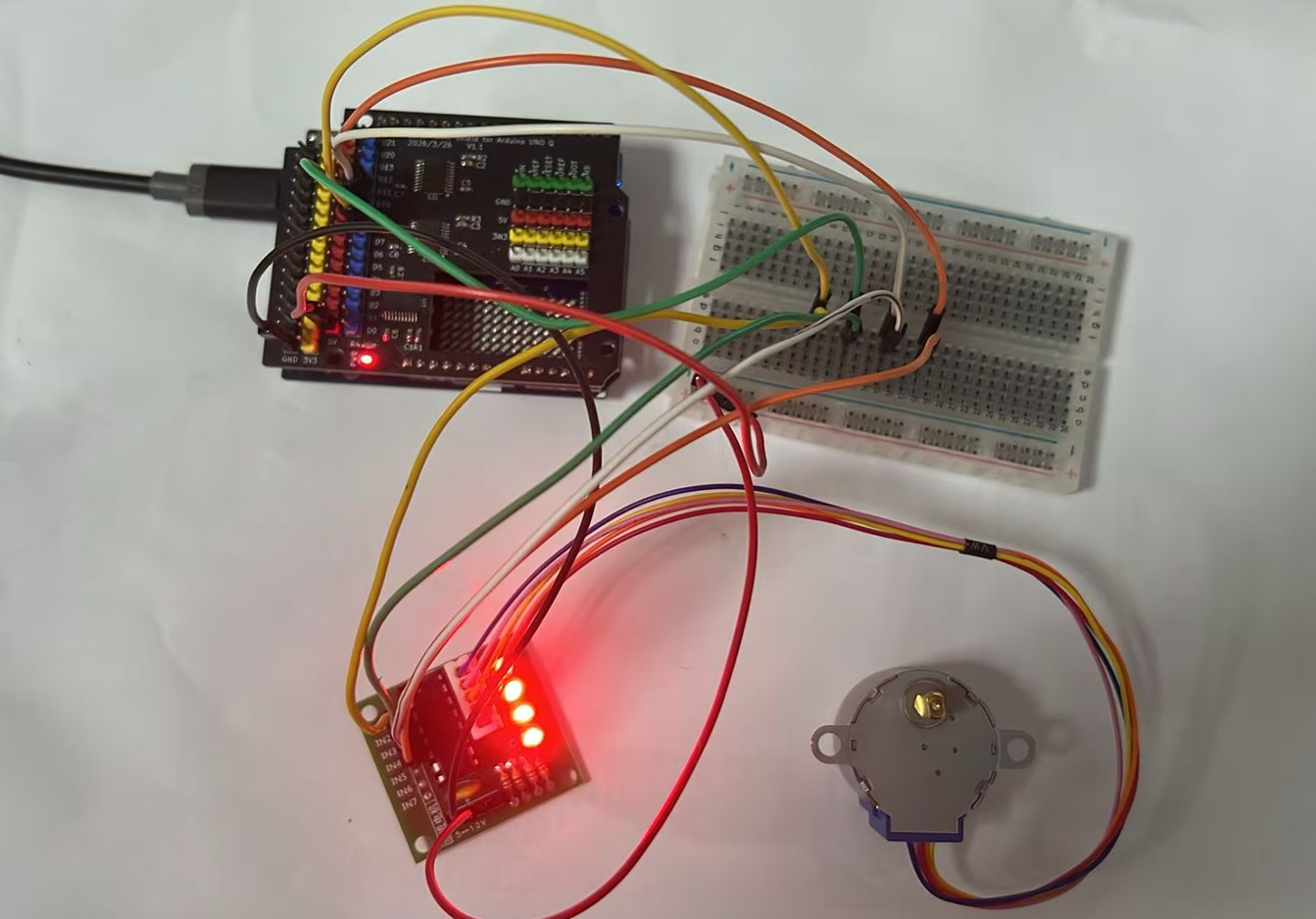

28BYJ-48 Stepper Motor

• Type: 4-phase, 5-wire unipolar
• Step angle: 5.625° (with 64:1 gear ratio, effective ~0.088°)
• Driver: ULN2003 Darlington transistor array
• Voltage: 5V
• Current: ~100–200mA per phase

1-Channel Relay Module

• Trigger: Active-LOW or Active-HIGH (selectable via jumper)
• Isolation: Optocoupler isolation
• Rating: 10A @ 250V AC / 10A @ 30V DC
• LED indicator: Shows relay state
• Voltage: 5V

USB-to-TTL 1.8V UART Debug Module

• Logic Level: 1.8V (matches Arduino UNO Q JCTL interface)
• Default Baud Rate: 115200 bps (8N1)
• Interface: USB-C → JCTL (GND / TX / RX)
• Status LEDs: Power, TXD, RXD, USB
• Compatibility: Arduino UNO Q only (do not use with 3.3V / 5V UART devices)
• Use Case: Low-level Linux serial console access in SE Mode (when no USB hub is available)

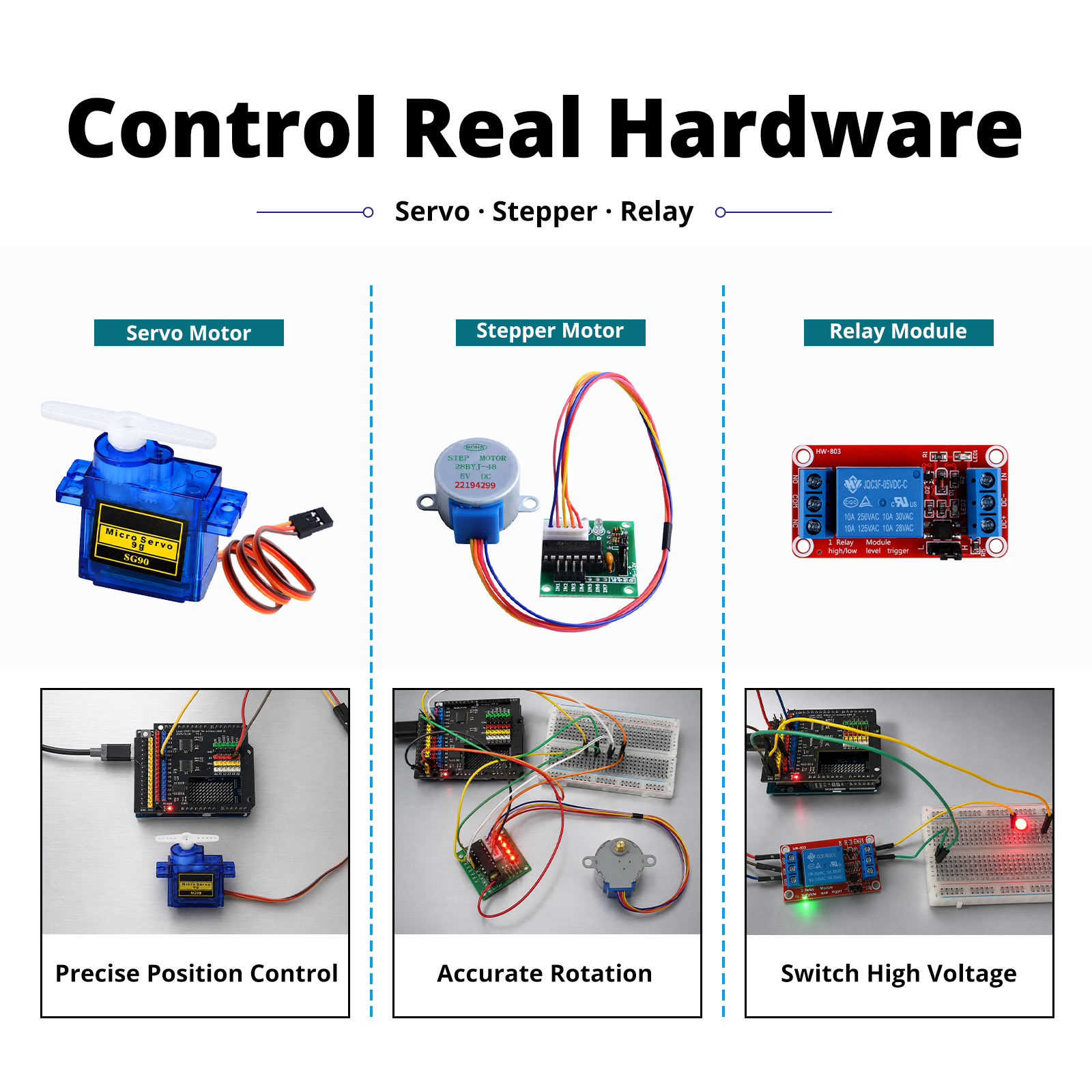

Figure 4-3: Servo, stepper motor, and relay module control examples

4.4 USB-to-TTL 1.8V UART Debug Module

The USB-to-TTL 1.8V UART Debug Module is a dedicated serial debug tool designed exclusively for the Arduino UNO Q. It connects to the board's JCTL header and exposes the on-board Linux system's serial console over USB, so you can log in and troubleshoot the Linux side of the UNO Q from any host computer.

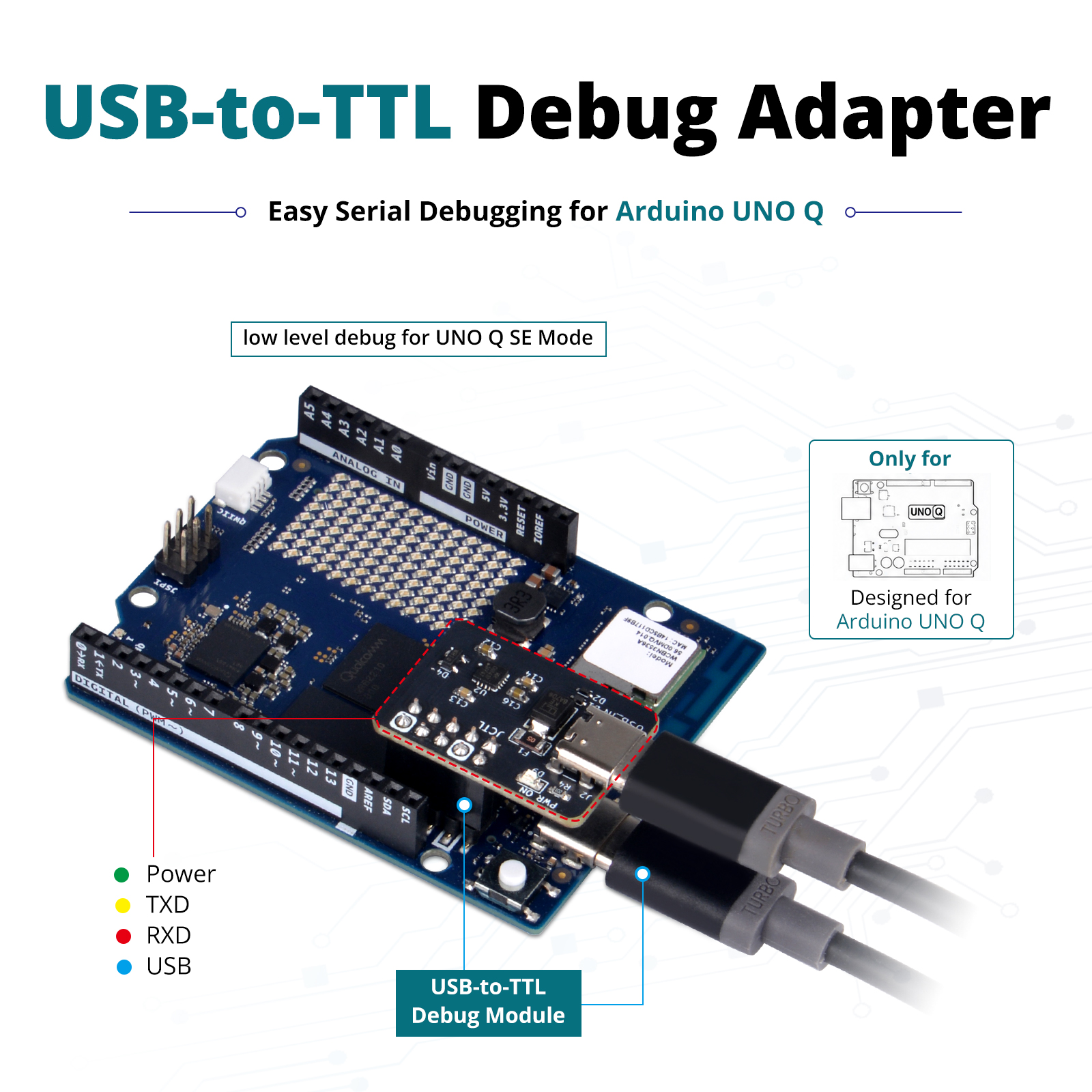

Figure 4-4: USB-to-TTL Debug Module — only for Arduino UNO Q, with Power / TXD / RXD / USB status indicators

4.4.1 What It Does

• Connects to the JCTL interface of the Arduino UNO Q and bridges it to a USB port on your host computer.
• Gives you a serial console (115200 bps, 8N1) into the UNO Q's Linux system — no USB hub required.
• Supports any standard serial terminal tool (minicom, picocom, PuTTY, screen, Arduino IDE Serial Monitor, etc.).
• Designed for low-level debug of the UNO Q in SE Mode — useful when no USB hub is at hand, when the board is installed in an enclosure, or when all USB ports on the host are already in use.

4.4.2 When to Use It

Reach for the USB-to-TTL module whenever you need to:

• Watch the Linux boot log and kernel messages from the UNO Q.
• Log in to the Linux shell of the UNO Q over a wired serial link.
• Debug problems at the system level (network, services, peripherals) that the Arduino App Lab cannot reach.
• Recover the board when network access is unavailable.

⚠️ Voltage Warning: This module uses 1.8V logic levels and is only compatible with the Arduino UNO Q's JCTL interface. Do not connect it to 3.3V or 5V UART devices — doing so may permanently damage the module or the host device.

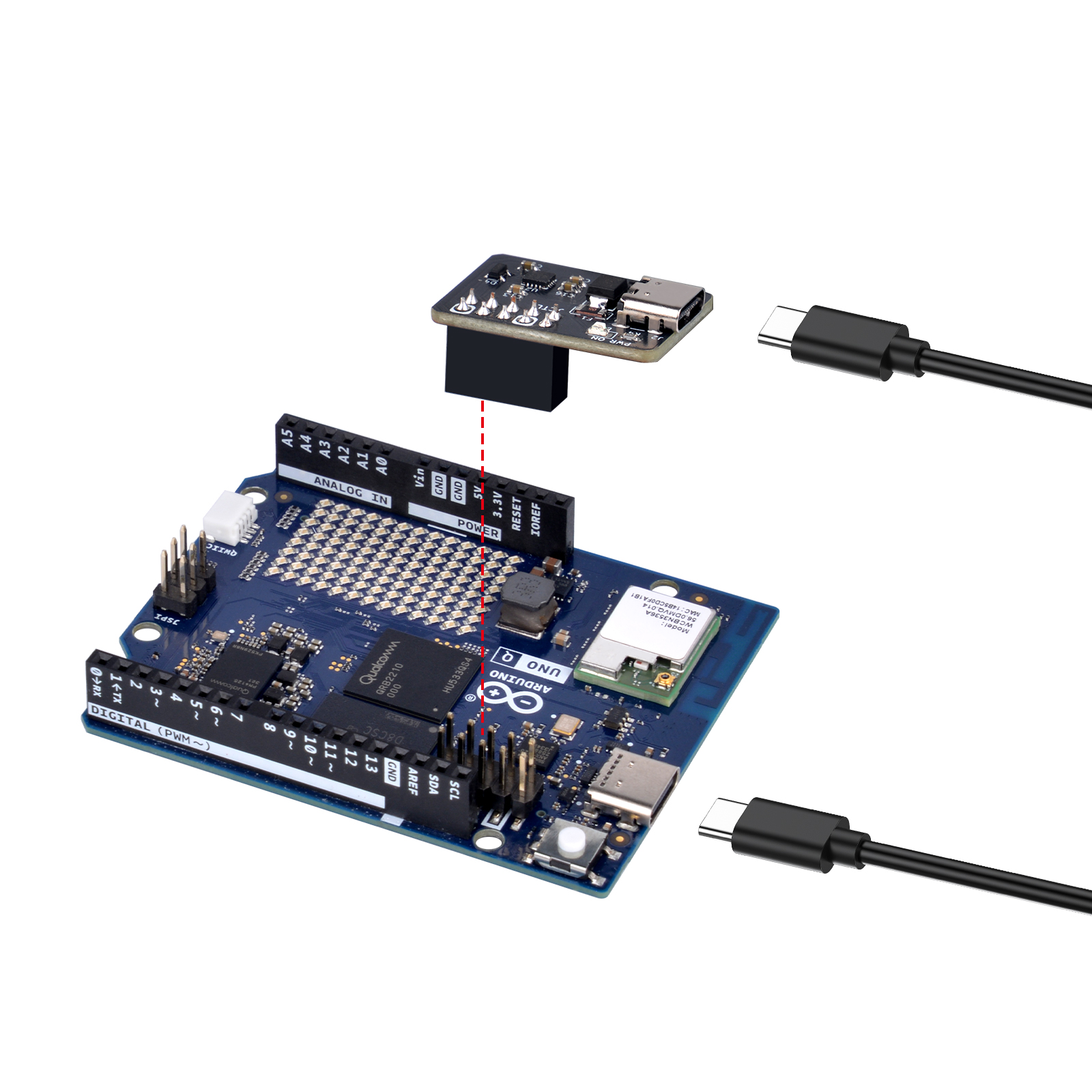

Figure 4-5: USB-to-TTL module plugged into the UNO Q's JCTL header for serial console access

4.4.3 How to Use It

1. Power off the Arduino UNO Q (disconnect USB-C and any external supply).
2. Plug the USB-to-TTL module into the JCTL header on the UNO Q — align the GND / TX / RX markings on the module with the pins on the board.
3. Connect the USB end of the module to a USB port on your host computer.
4. Power on the Arduino UNO Q via the USB-C port.
5. Open a serial terminal on the host and configure it for 115200 bps, 8N1 (8 data bits, no parity, 1 stop bit), no flow control. Example commands:
6. Linux: minicom -D /dev/ttyUSB0 -b 115200
7. macOS: screen /dev/tty.usbserial-* 115200
8. Windows: PuTTY → Serial → COMx → 115200
9. Press Enter if needed — a Linux login prompt (or boot log) should appear, granting you shell access to the UNO Q's Linux system for debugging.

4.4.4 Example

• Download and install terminal software: MobaXterm
• From the menu, create a new session: Sessions → New session:

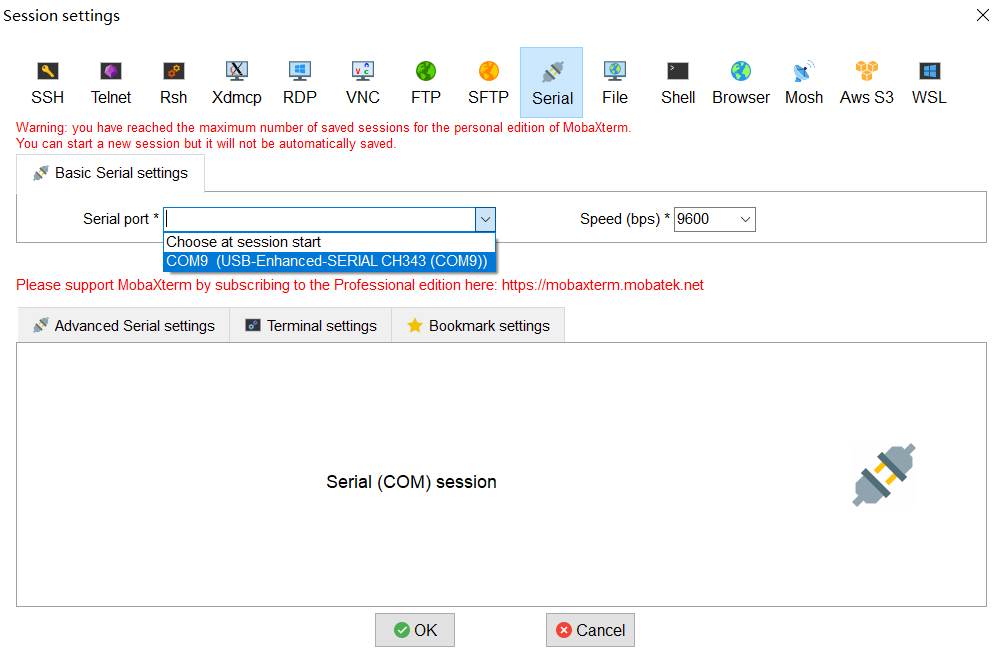

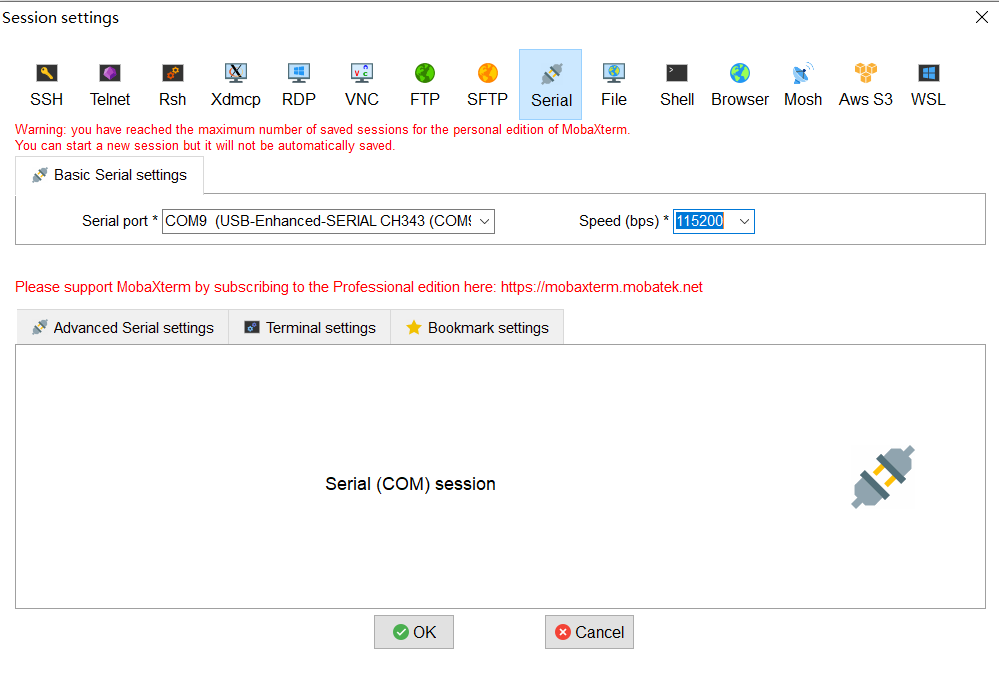

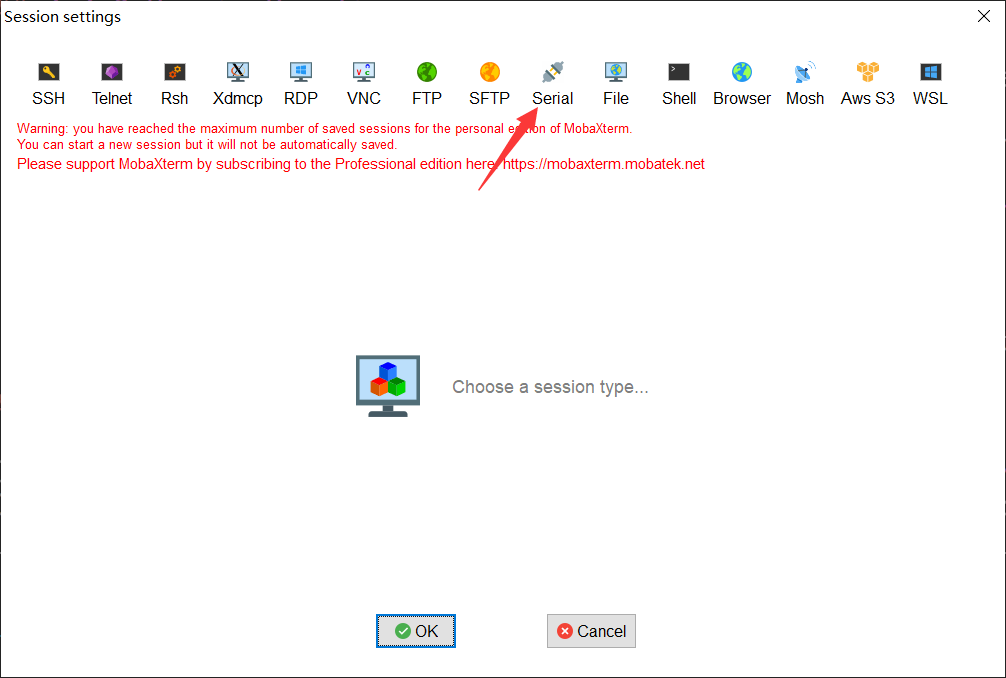

Figure 4-6: MobaXterm settings

Figure 4-7: MobaXterm settings

Figure 4-8: MobaXterm settings

You will see the boot sequence on the terminal.

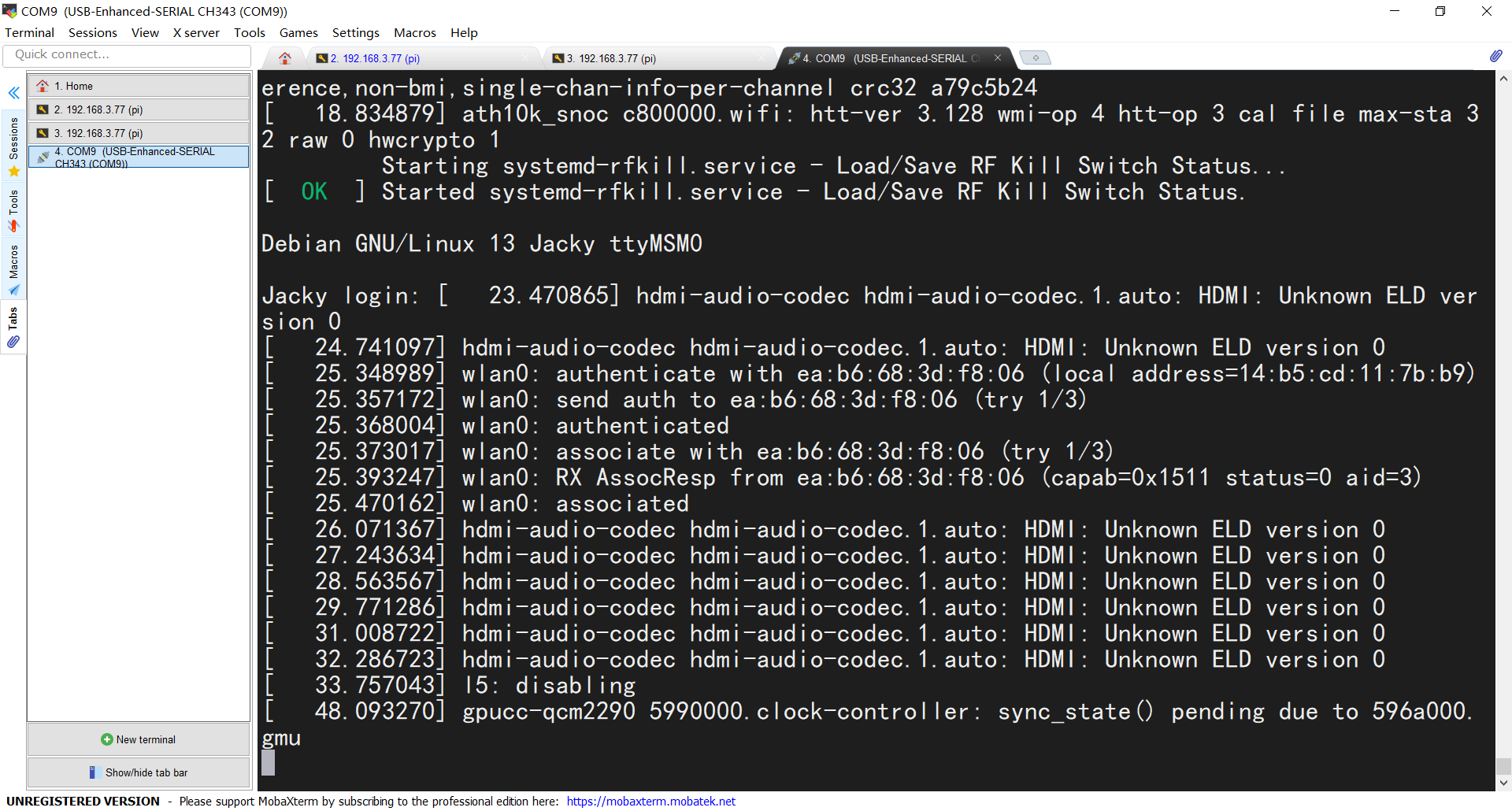

Figure 4-9: Boot sequence

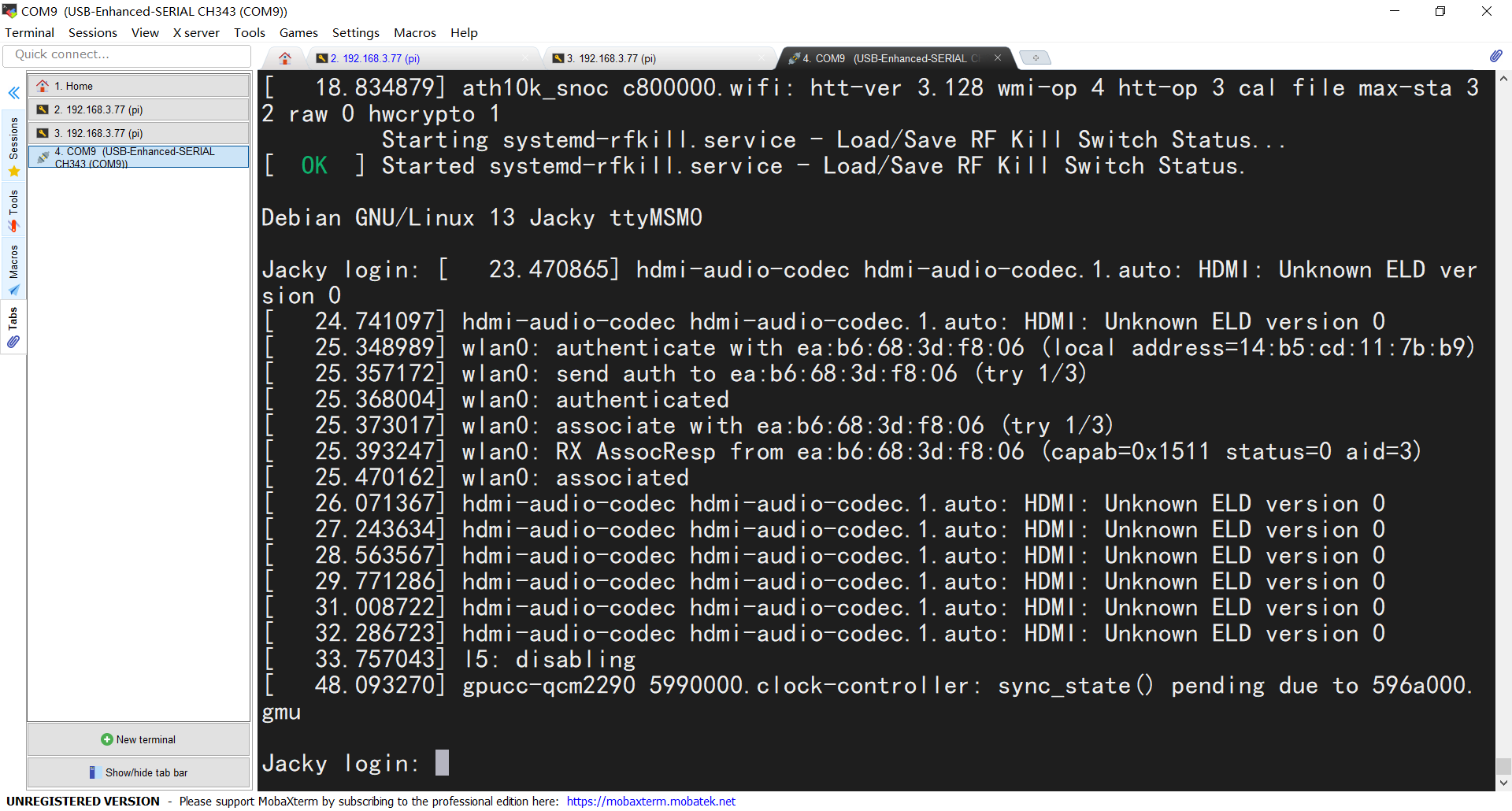

Figure 4-10: Login prompt

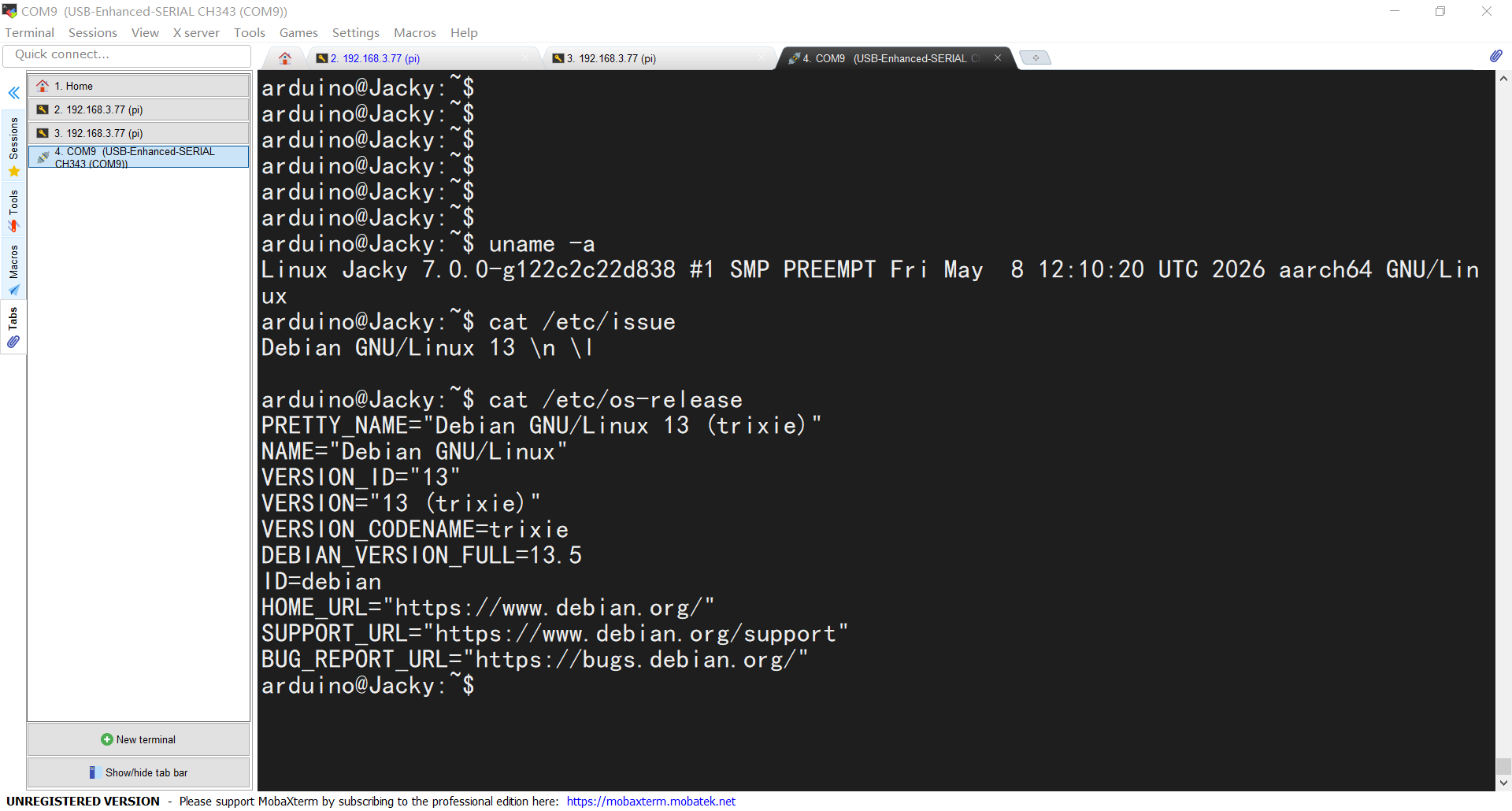

Figure 4-11: Login with arduino account

NOTE: The password is set when you initialize the system in Arduino App Lab.

5. Installation Instructions

5.1 Shield Installation

1. Power Off: Ensure the UNO Q is disconnected from USB or external power.

2. Alignment Check: Verify shield pins are not bent. The central rectangular window should align with the UNO Q LED matrix.

3. Orientation: The shield USB connector side should face the same direction as the UNO Q USB-C port.

4. Vertical Mounting: Press down evenly until both boards are fully parallel and all pins are fully seated.

5. Power-On Test: Connect the USB-C cable and verify the UNO Q power LED illuminates.

5.2 Wiring Best Practices

• Use color-coded Dupont lines to match the shield pin colors
• Keep high-voltage relay wires (NO/COM/NC) separate from low-voltage signal wires
• Use the breadboard for prototyping and testing connections
• Secure loose wires to prevent accidental disconnections

6. Software Preparation

6.1 Arduino IDE Setup

1. Install the Arduino App Lab
2. Connect the UNO Q via USB-C cable
3. Wait for it to finish starting up. (The indicator on the QRB silk mark will light up)

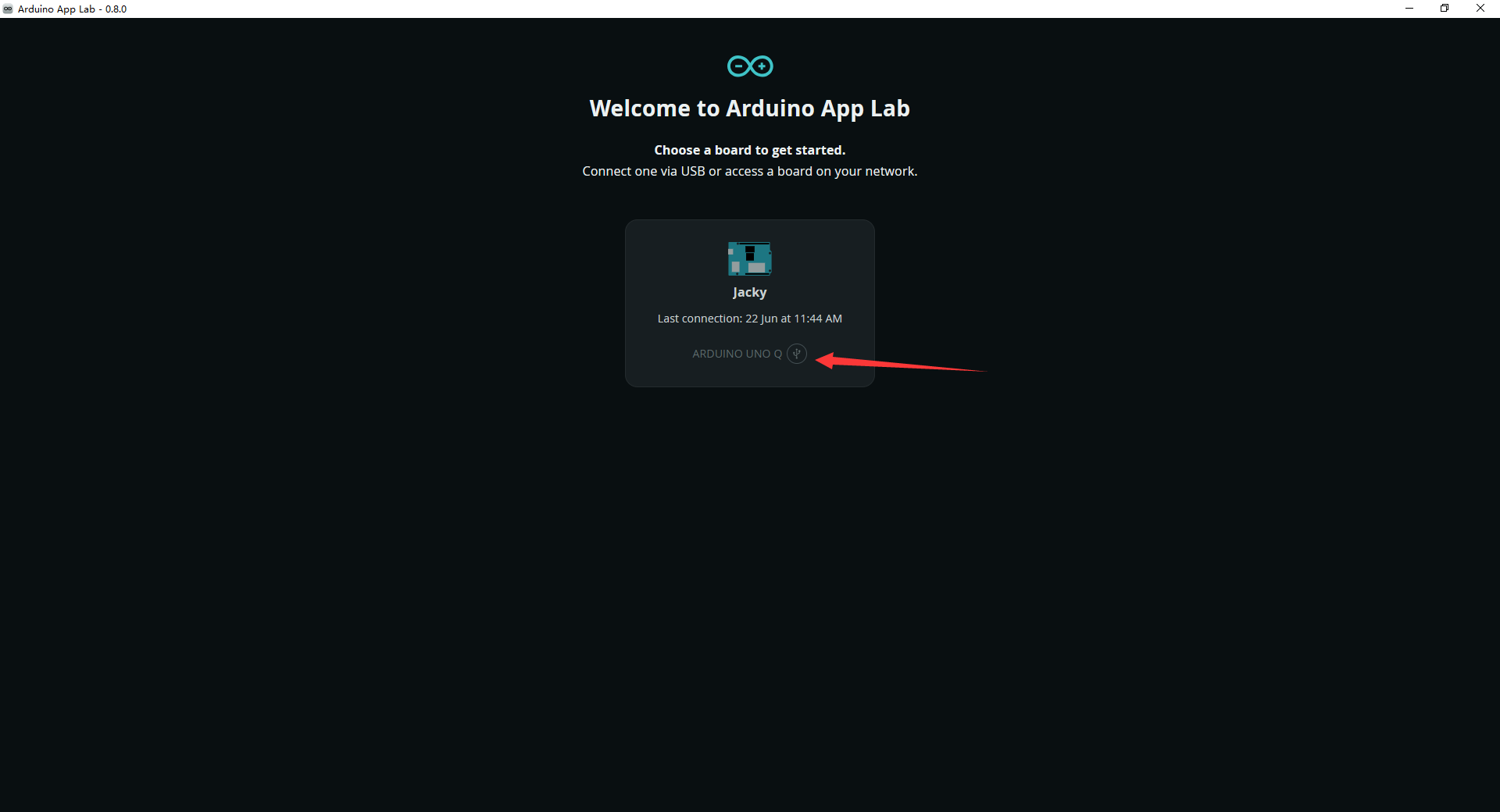

4. Open Arduino App Lab and then select the board that is recognized by the App.

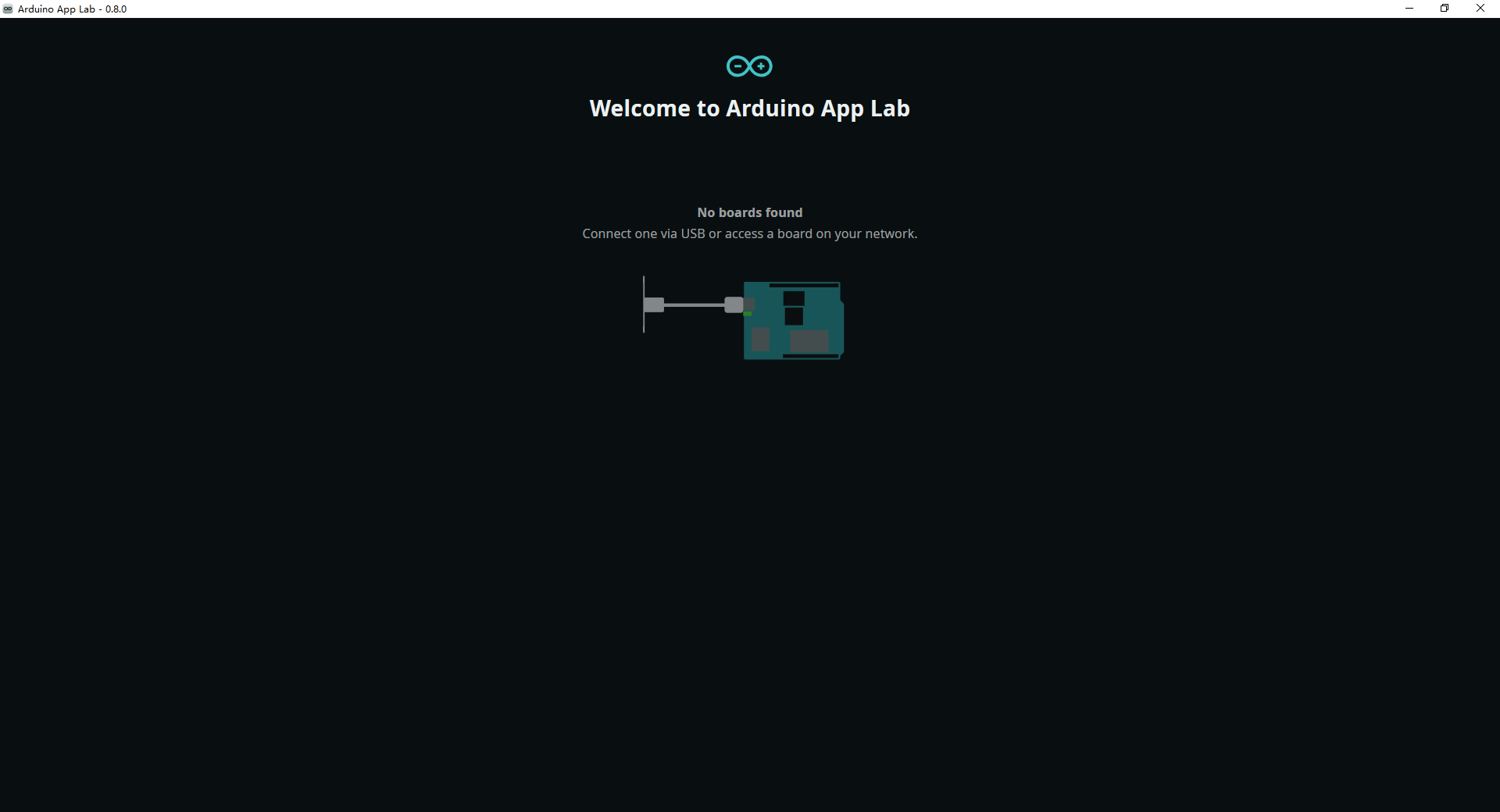

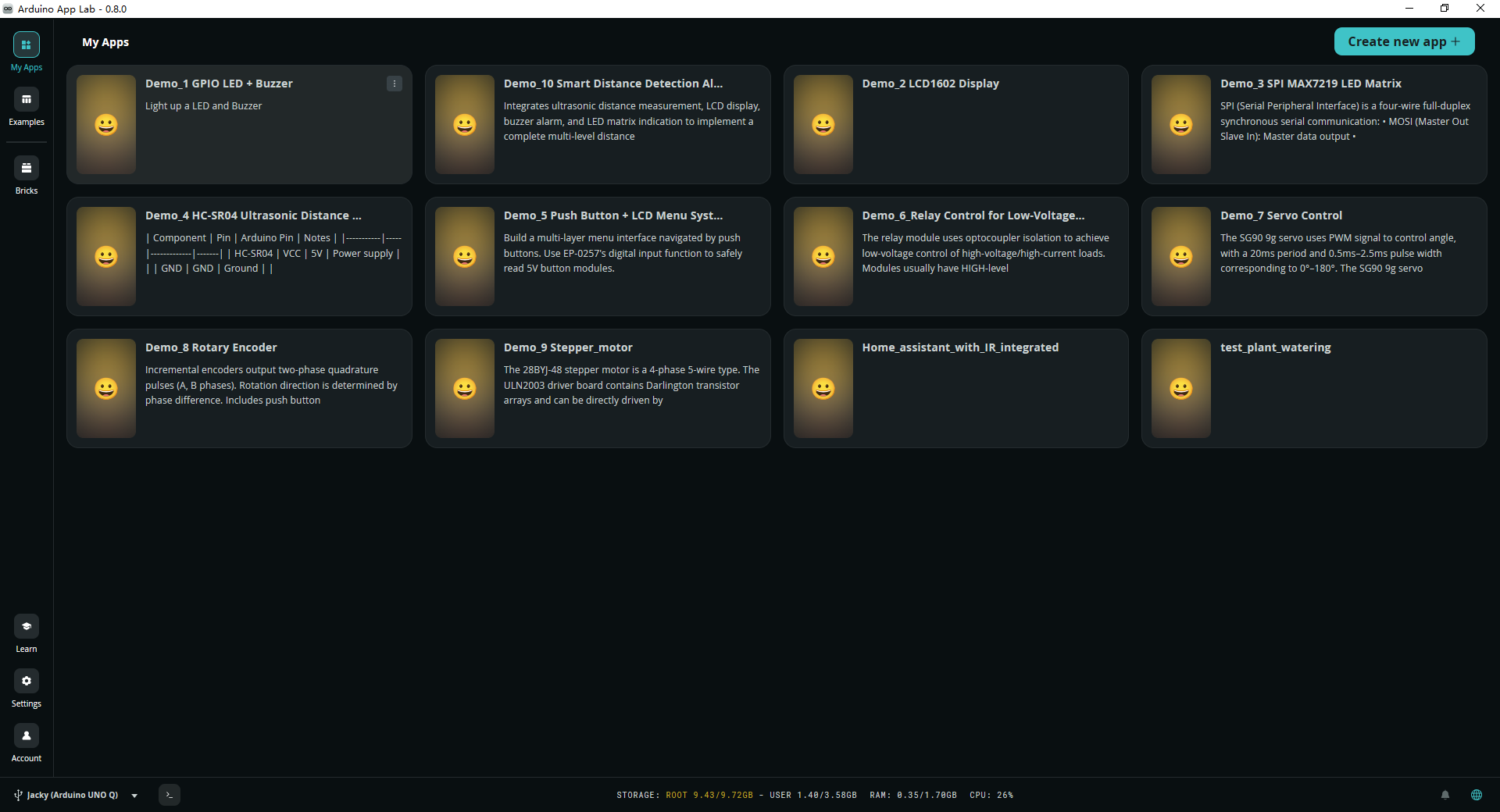

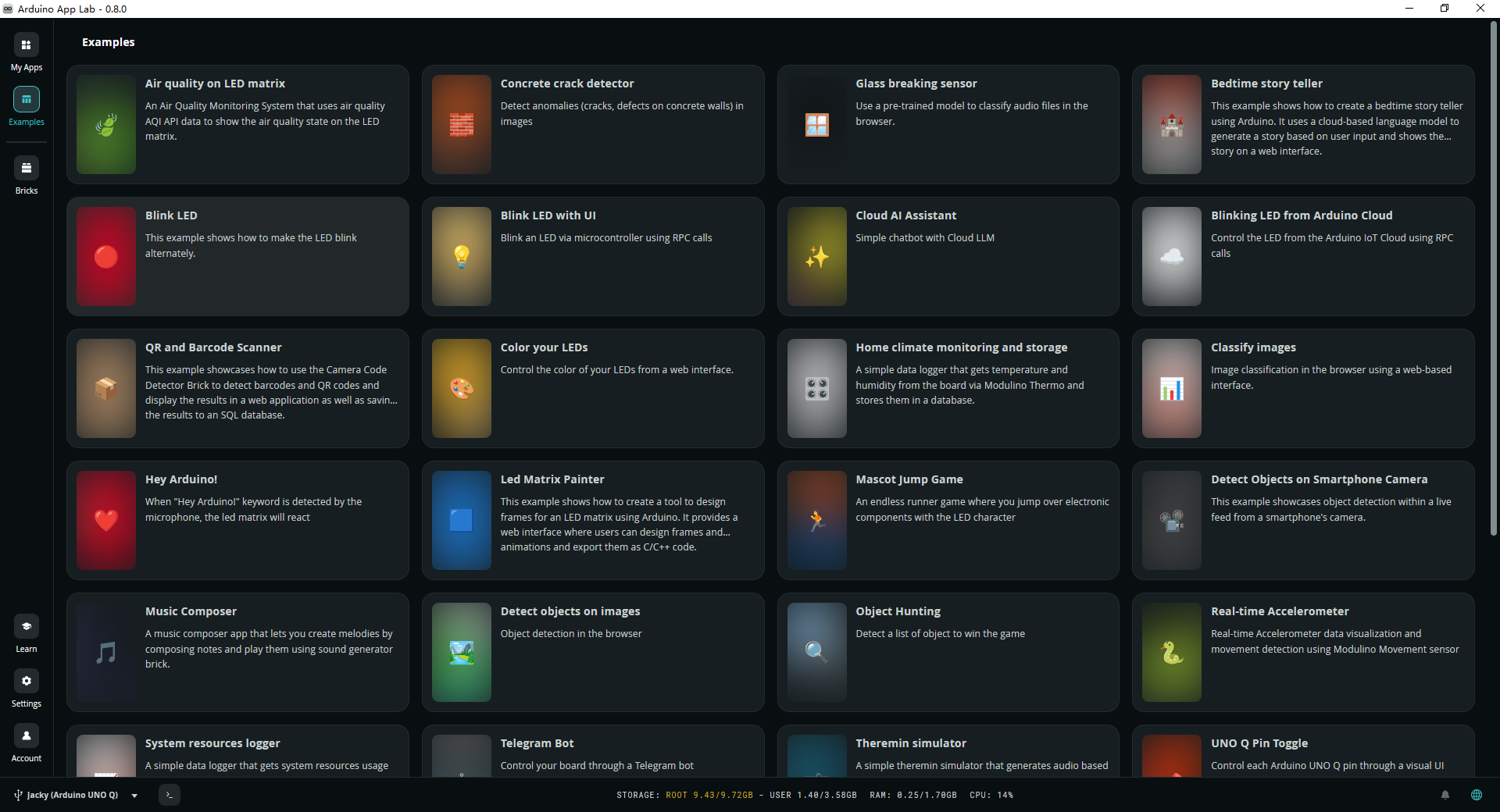

Figure 6-1: Arduino App Lab settings

Figure 6-2: Arduino App Lab settings

Figure 6-3: Arduino App Lab settings

Figure 6-4: Arduino App Lab settings

And then, click Create app+ to create new project or just click it and select import to import the demo code apps.(zip file type only)

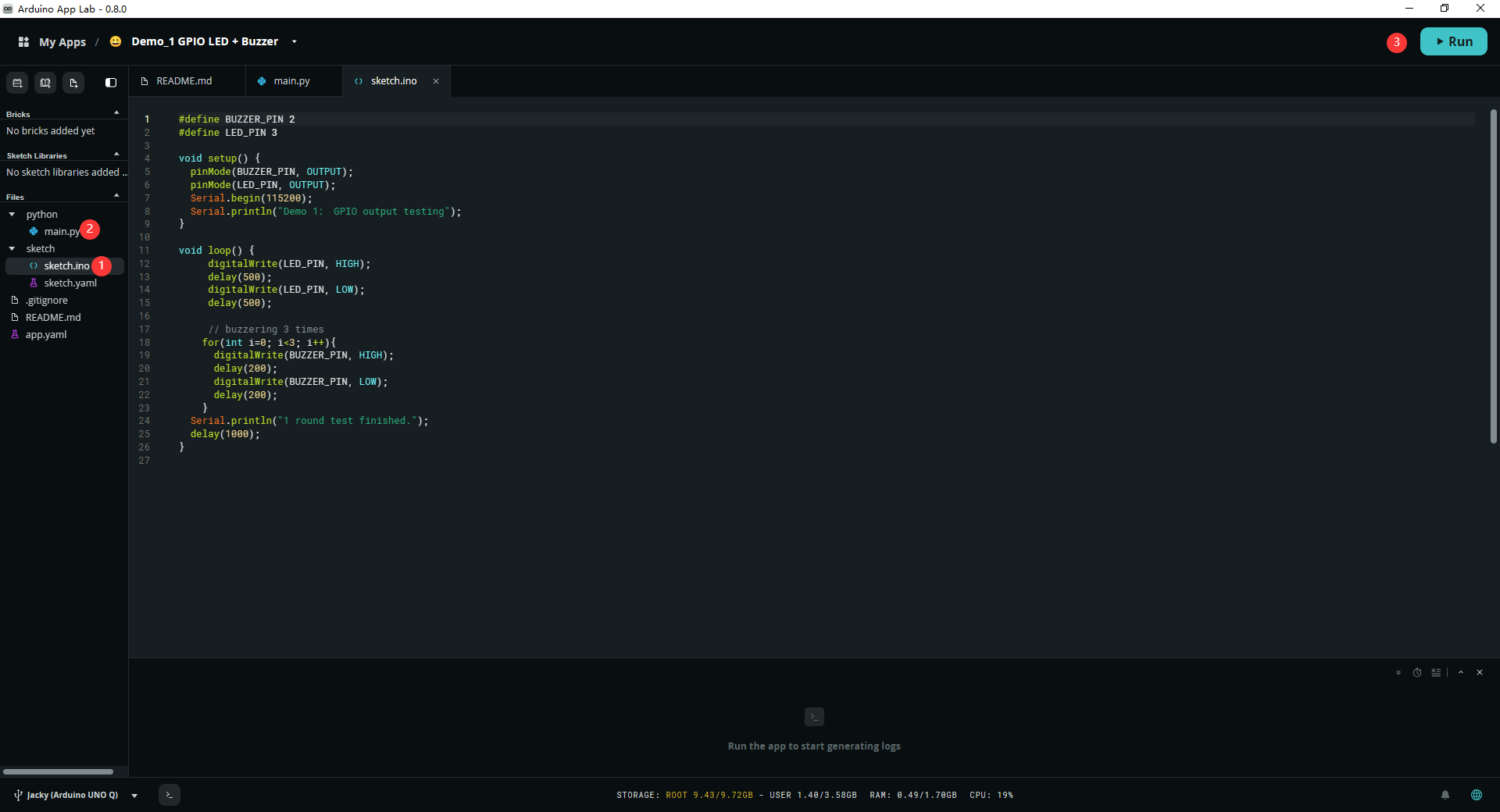

Once the sketch has been created and filled with code, you can just click run button to compile it and upload the code to the board.

Figure 6-5: Arduino App Lab settings

6.2 Required Libraries

Install the following libraries via the Arduino Library Manager (Sketch → Include Library → Manage Libraries):

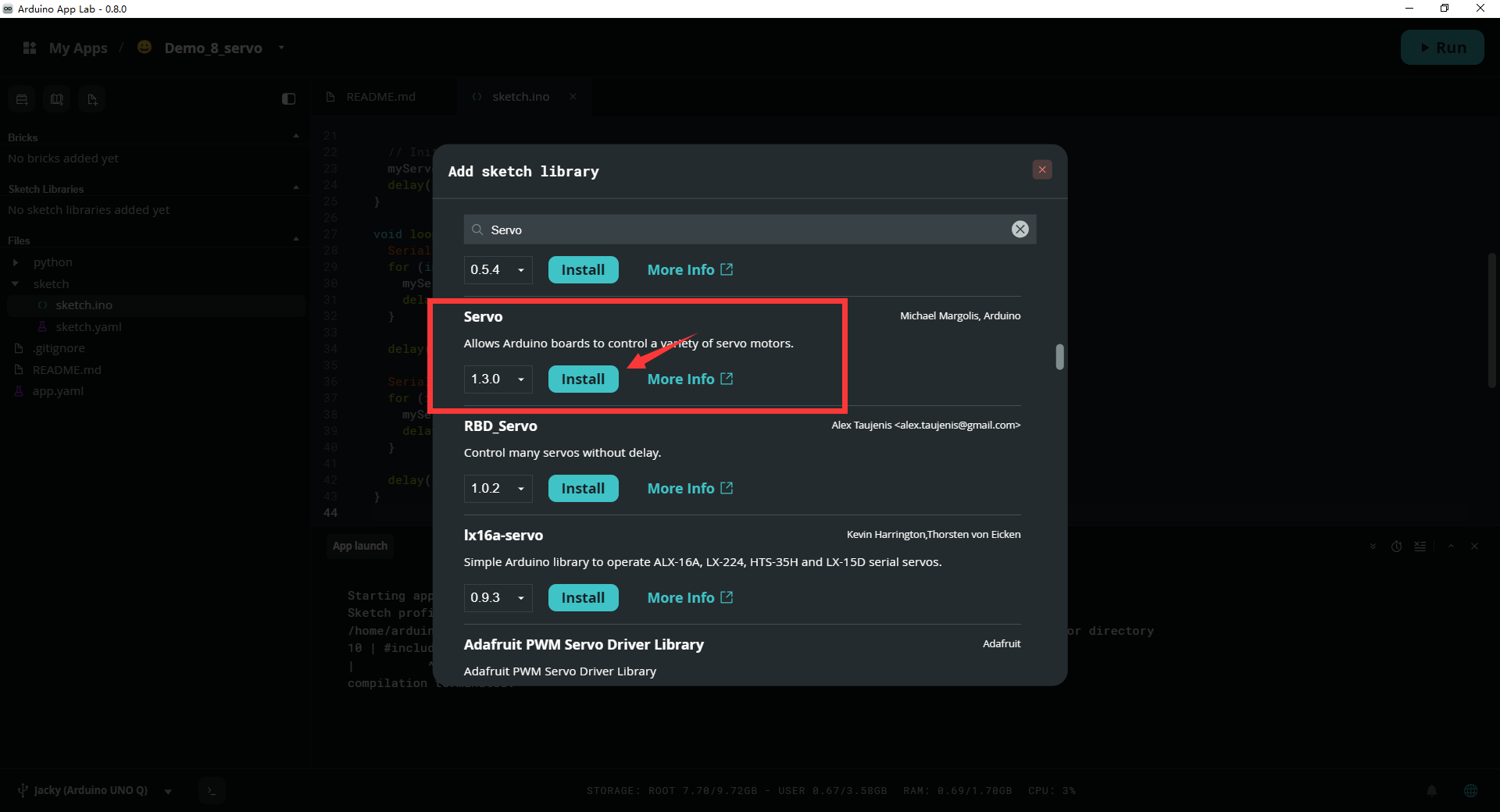

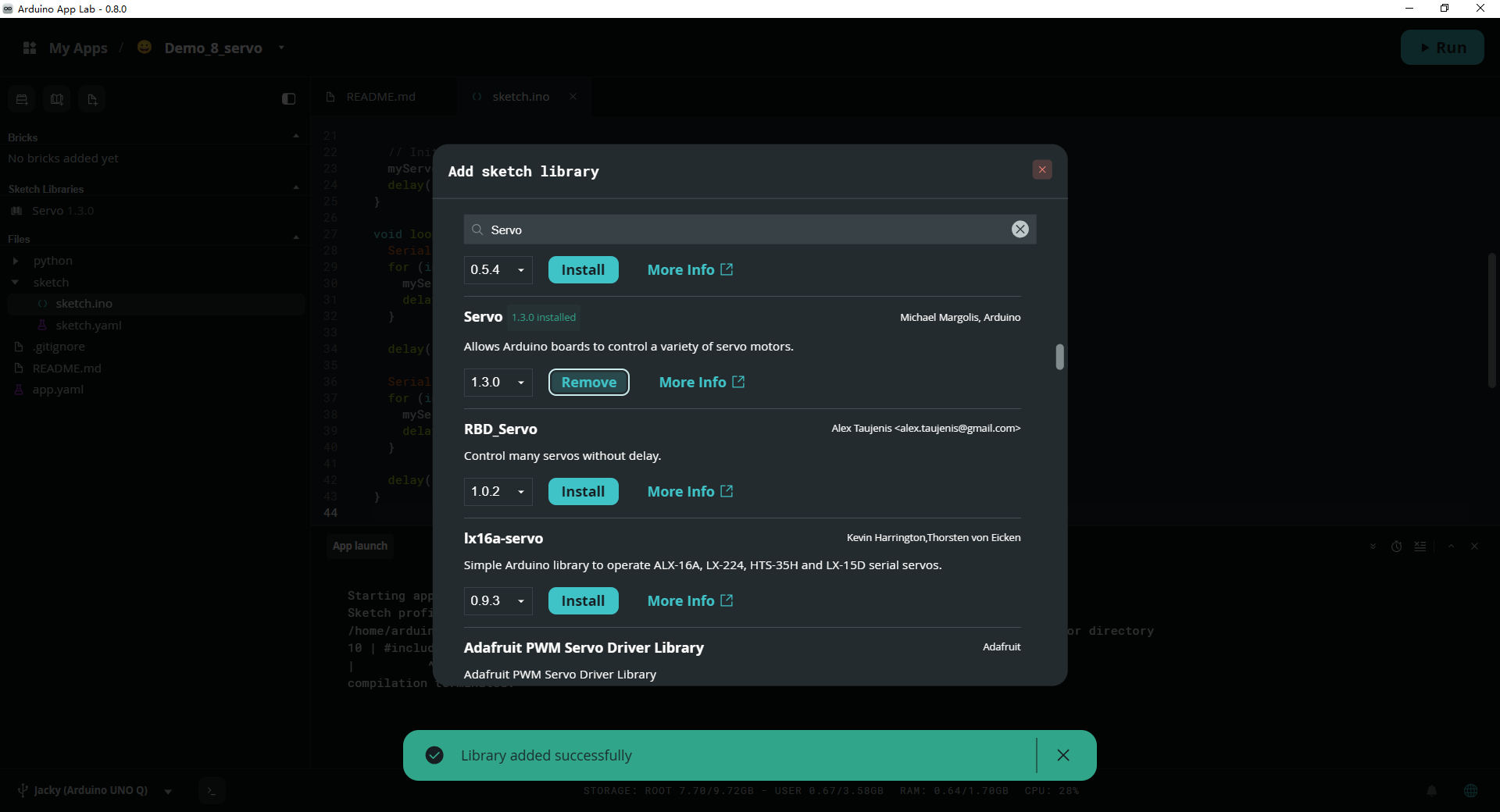

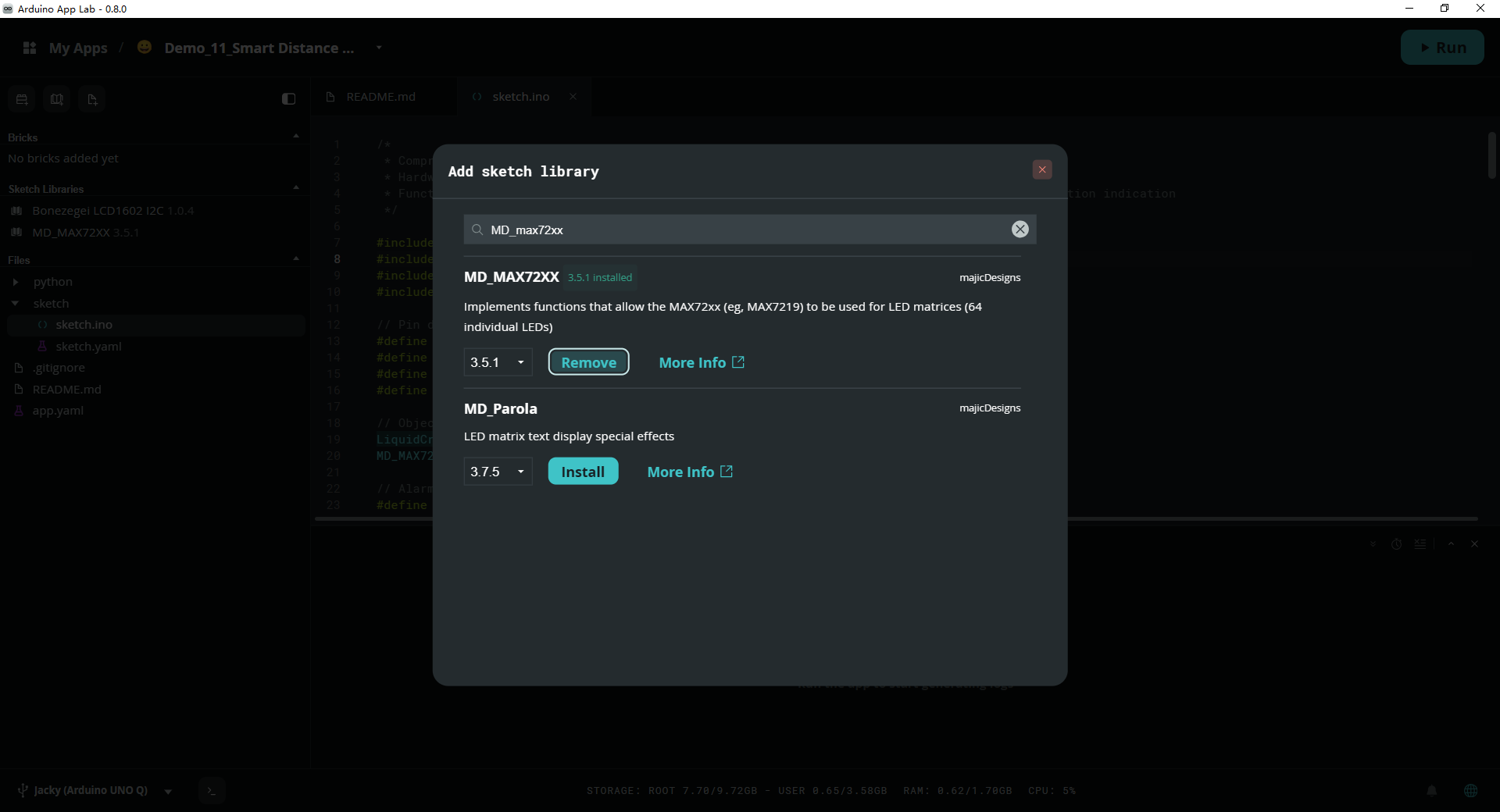

Figure 6-1: Library installation reference — search and install via Library Manager

Figure 6-2: Library installation reference — search and install via Library Manager

Figure 6-3: Library installation reference — search and install via Library Manager

6.3 I2C Address Scanner

If unsure of the LCD module's I2C address, upload this scanner sketch first:

#include <Wire.h>

void setup() {
  Wire.begin();
  Serial.begin(115200);
  Serial.println("I2C Scanner");
  for (byte addr = 1; addr < 127; addr++) {
    Wire.beginTransmission(addr);
    if (Wire.endTransmission() == 0) {
      Serial.print("I2C device found at address: 0x");
      Serial.println(addr, HEX);
    }
  }
}

void loop() {}

7. Basic Experiments

Experiment 1: GPIO LED + Buzzer

Objective

Learn basic digital output control through the level-shifting shield.

Principle

Digital GPIO outputs HIGH/LOW levels to control external modules. Through the EP-0257, 3.3V signals are boosted to 5V, ensuring reliable recognition by 5V modules.

Wiring Diagram

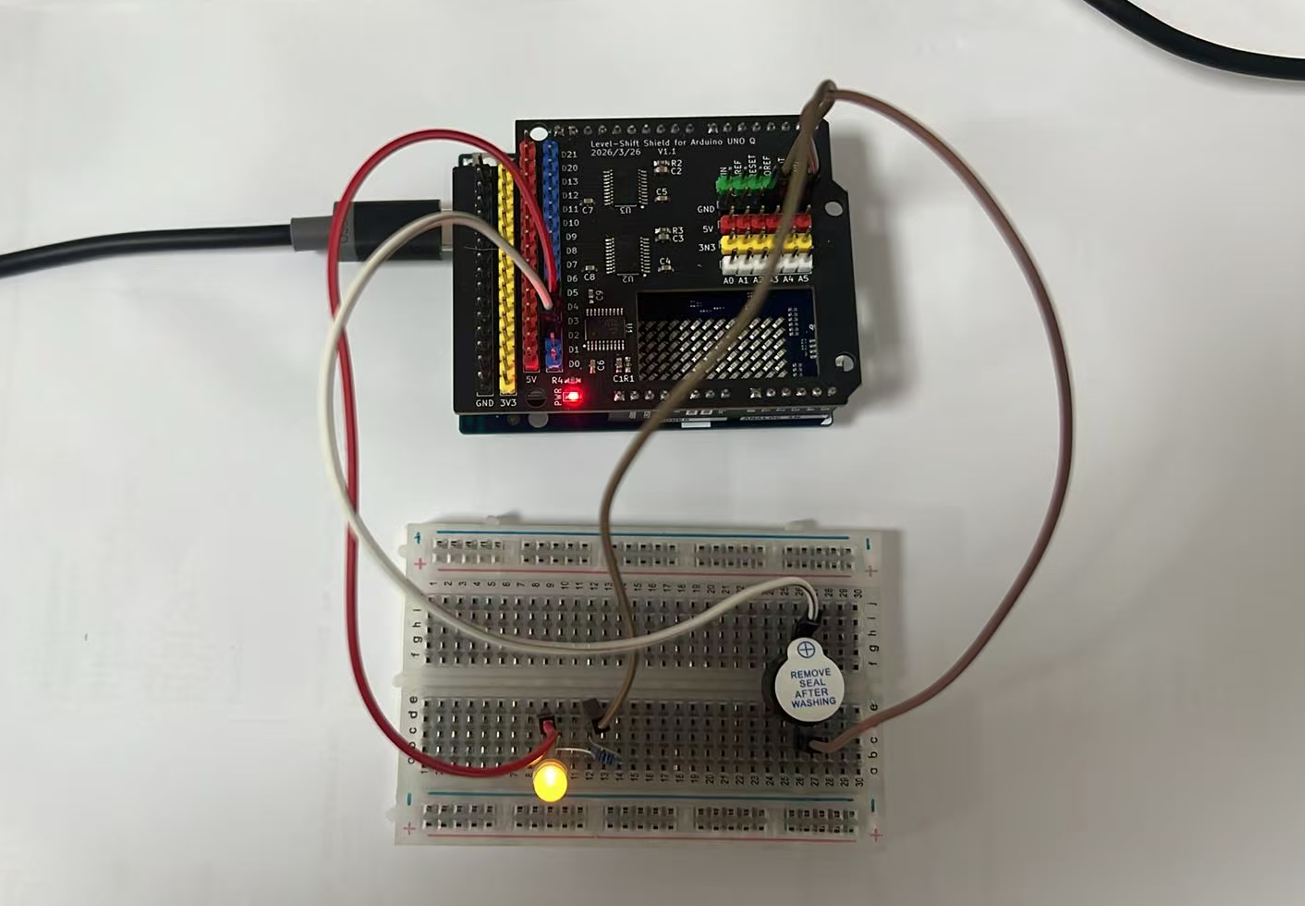

Figure 7-1: Experiment 1 — GPIO LED + Buzzer wiring diagram

Code

/*
 * Experiment 1: GPIO LED + Buzzer
 * Function: D2 controls buzzer alarm, D3 controls LED blinking
 * Hardware: EP-0257 Shield + 5V Buzzer Module + LED
 */

#define BUZZER_PIN 2    // Buzzer connected to D2 (Blue pin)
#define LED_PIN    3    // LED connected to D3 (Blue pin)

void setup() {
  pinMode(BUZZER_PIN, OUTPUT);
  pinMode(LED_PIN, OUTPUT);
  Serial.begin(115200);
  Serial.println("Experiment 1: GPIO Output Test");
}

void loop() {
  // LED blinking
  digitalWrite(LED_PIN, HIGH);
  delay(500);
  digitalWrite(LED_PIN, LOW);
  delay(500);

  // Buzzer beeps 3 times
  for (int i = 0; i < 3; i++) {
    digitalWrite(BUZZER_PIN, HIGH);  // Active buzzer: HIGH level triggers sound
    delay(200);
    digitalWrite(BUZZER_PIN, LOW);
    delay(200);
  }

  Serial.println("One cycle completed");
  delay(1000);
}

Code Explanation

• pinMode(pin, OUTPUT): Configures pin as output mode
• digitalWrite(pin, HIGH/LOW): Outputs 3.3V HIGH or 0V LOW, auto-converted to 5V/0V by shield
• Active buzzer contains internal oscillator circuit; only needs DC level to sound

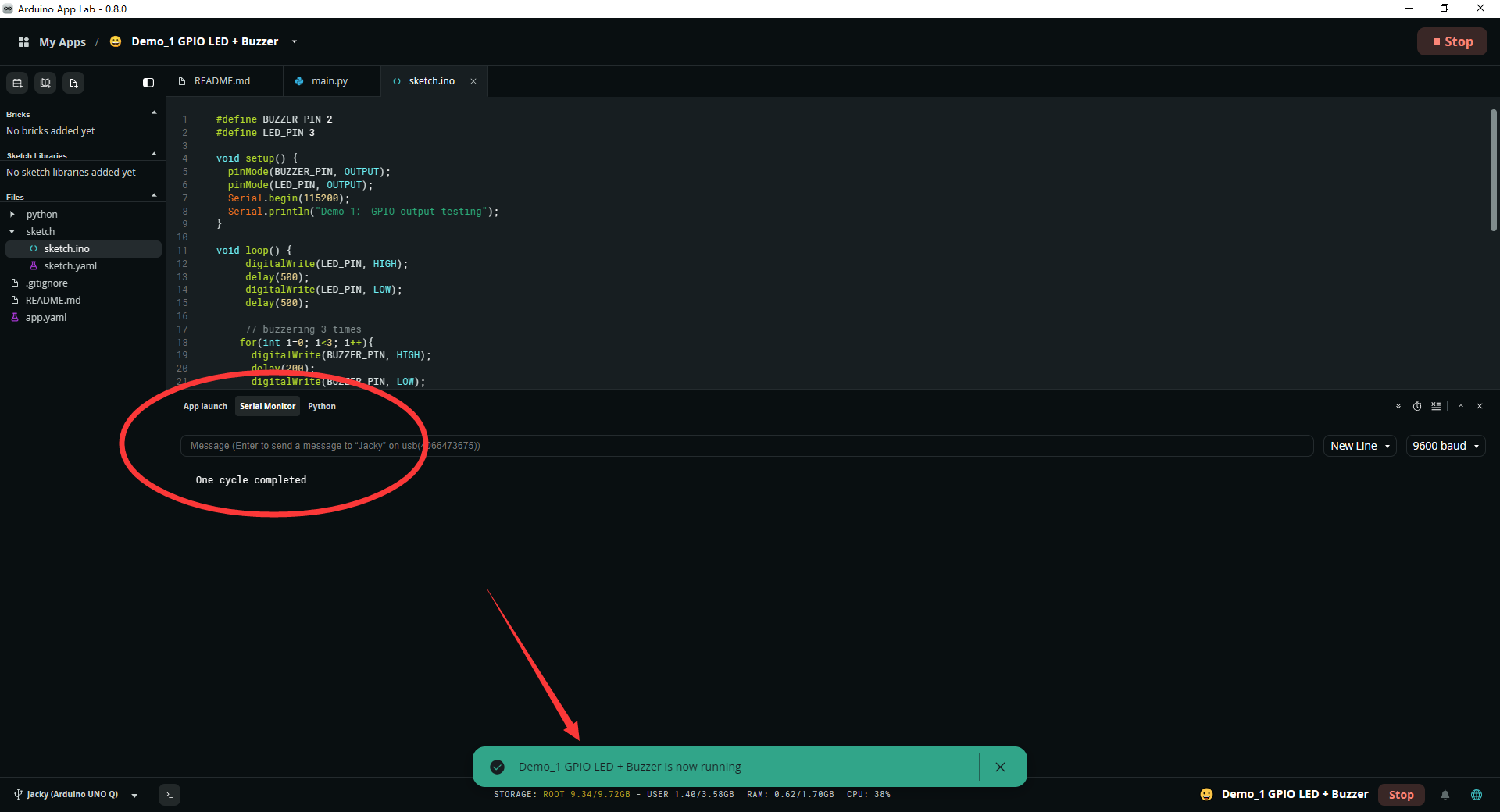

Figure 7-2: Experiment 1 — Expected output on serial monitor

Experiment 2: I2C LCD1602 Display

Objective

Learn I2C communication and LCD display control.

Principle

I2C (Inter-Integrated Circuit) is a two-wire serial bus (SDA data + SCL clock). UNO Q I2C pins are A4 (SDA) and A5 (SCL), which after EP-0257 conversion can directly drive 5V I2C devices.

The LCD1602 I2C module integrates a PCF8574 expander chip, converting parallel interface to I2C, requiring only 4 wires for display control.

Figure 7-3: LCD user interface examples — Menu Navigation, Data Monitoring, Device Control

Wiring Diagram

Note: I2C bus requires pull-up resistors; the LCD1602 module has them built-in.

Library Installation

1. Open Arduino IDE → Library Manager
2. Search for "Bonezegei LCD1602 I2C"
3. Find the library by author Bonezegei, click Install

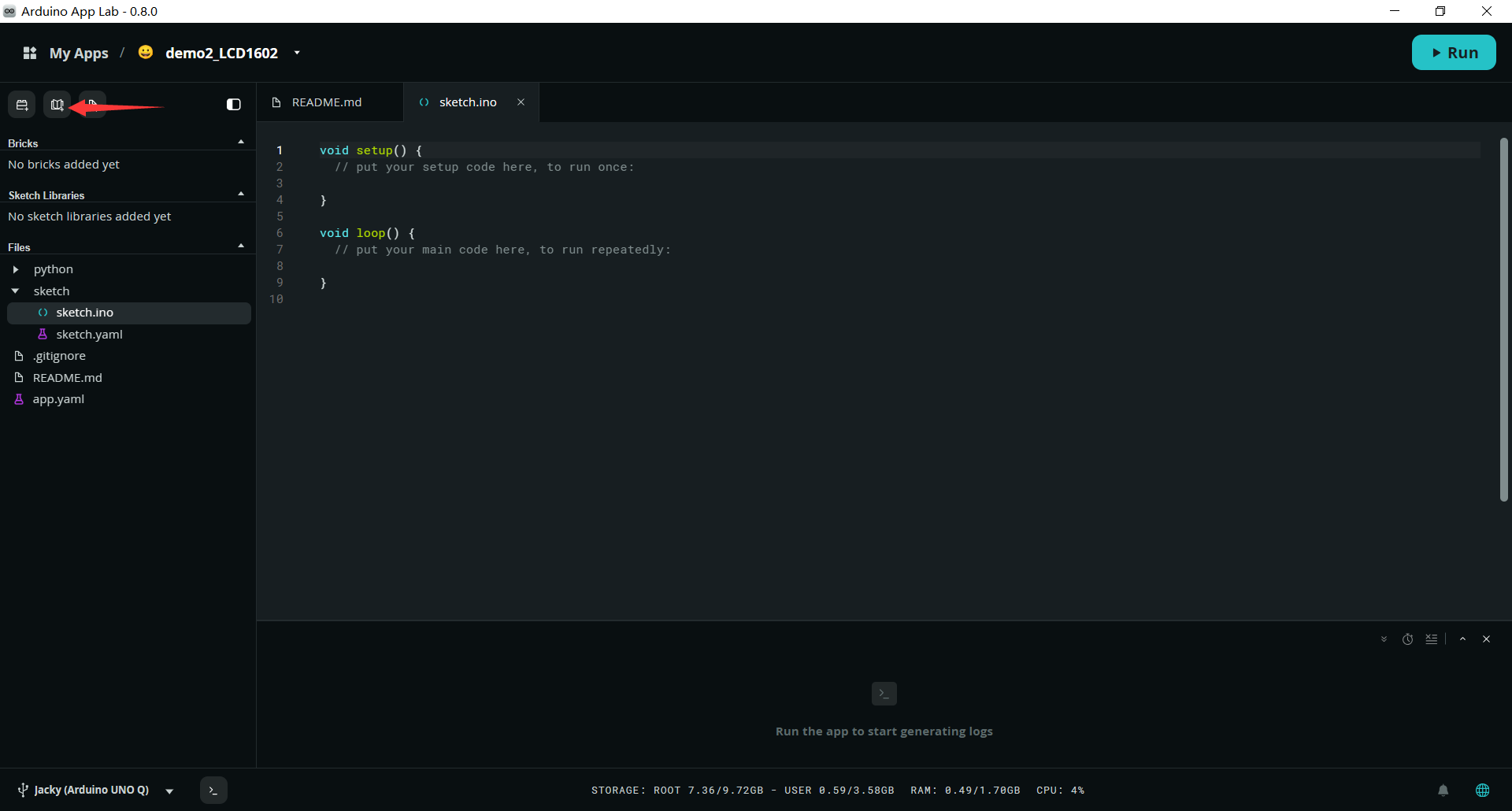

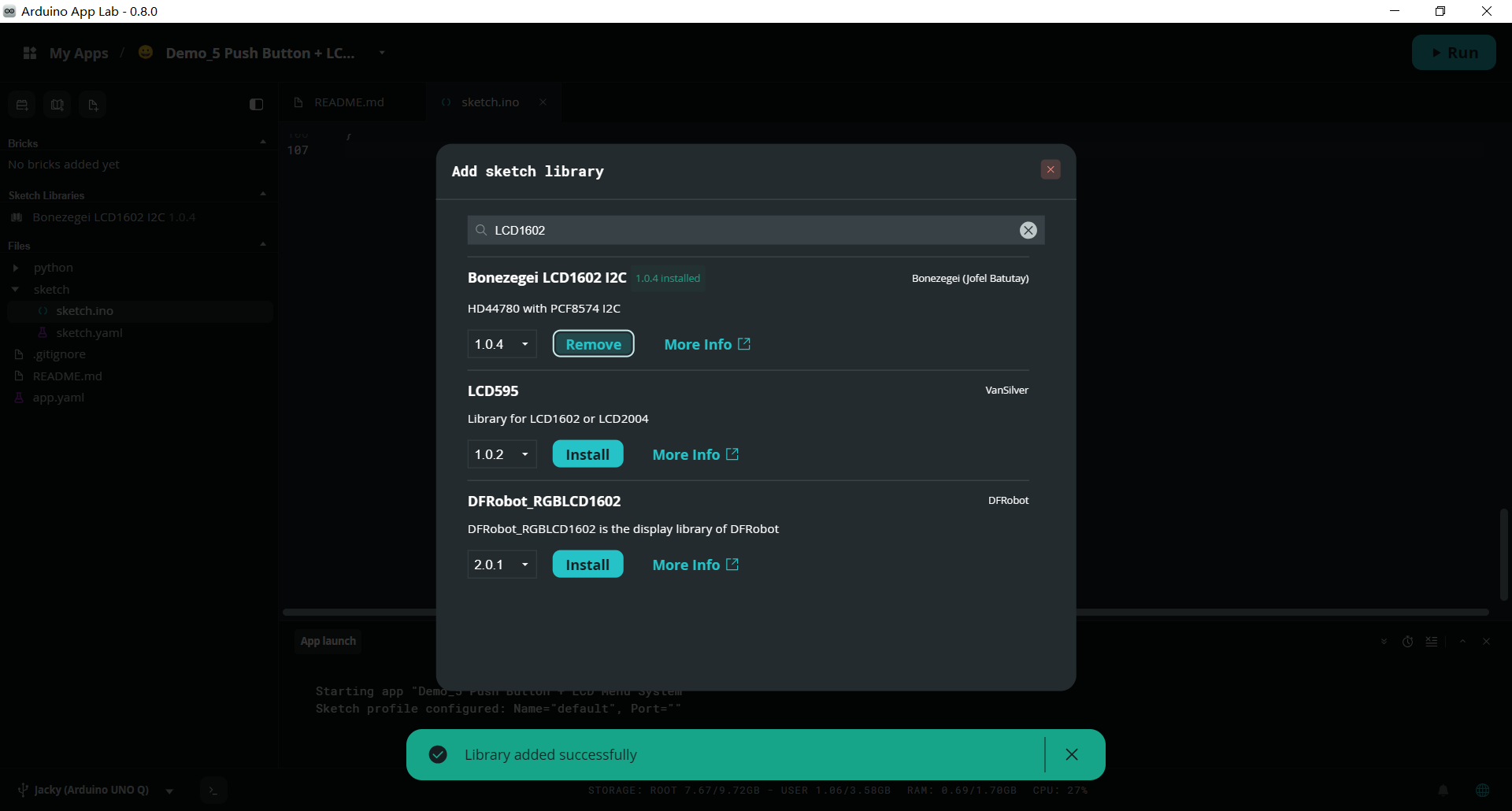

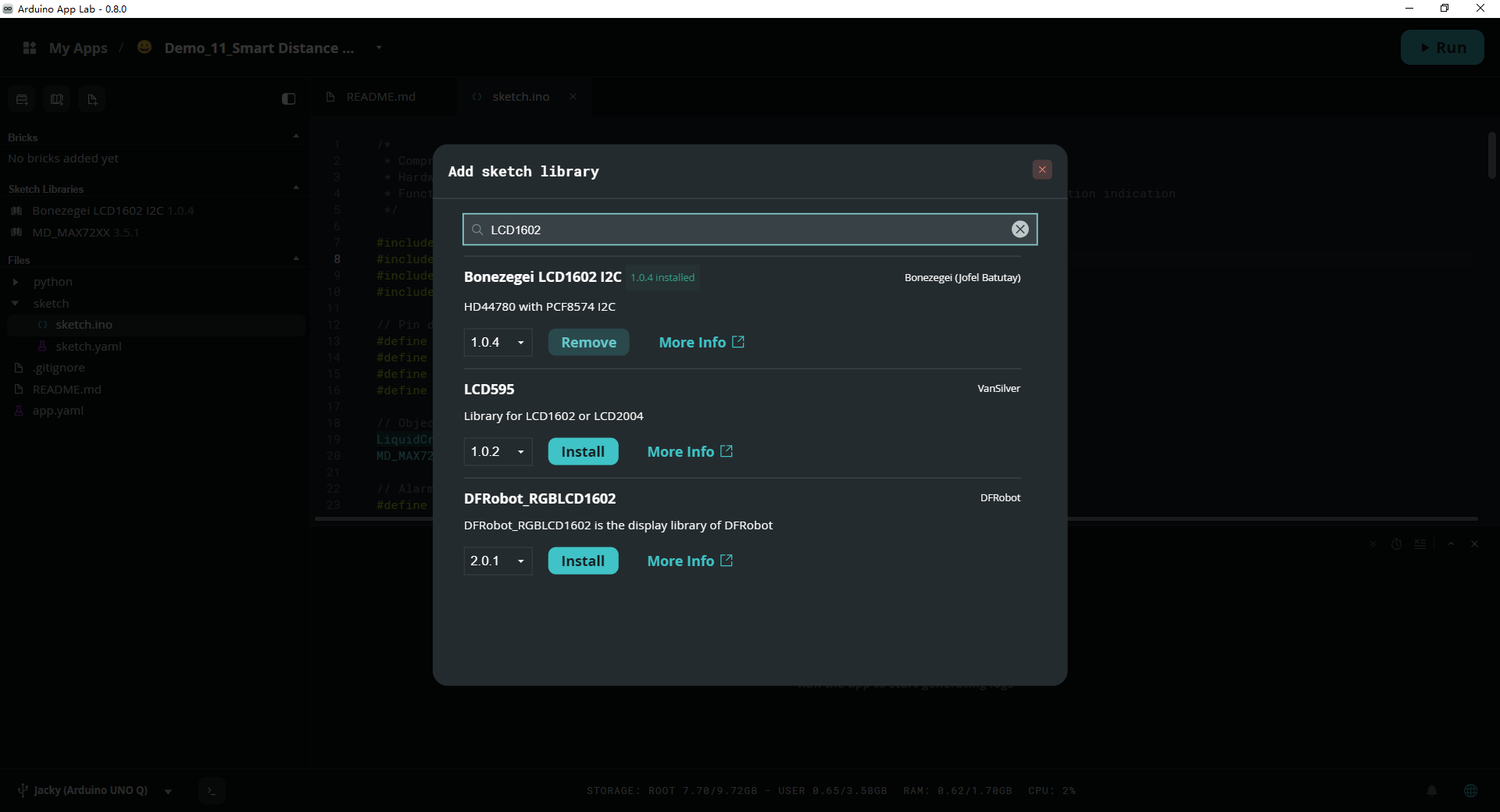

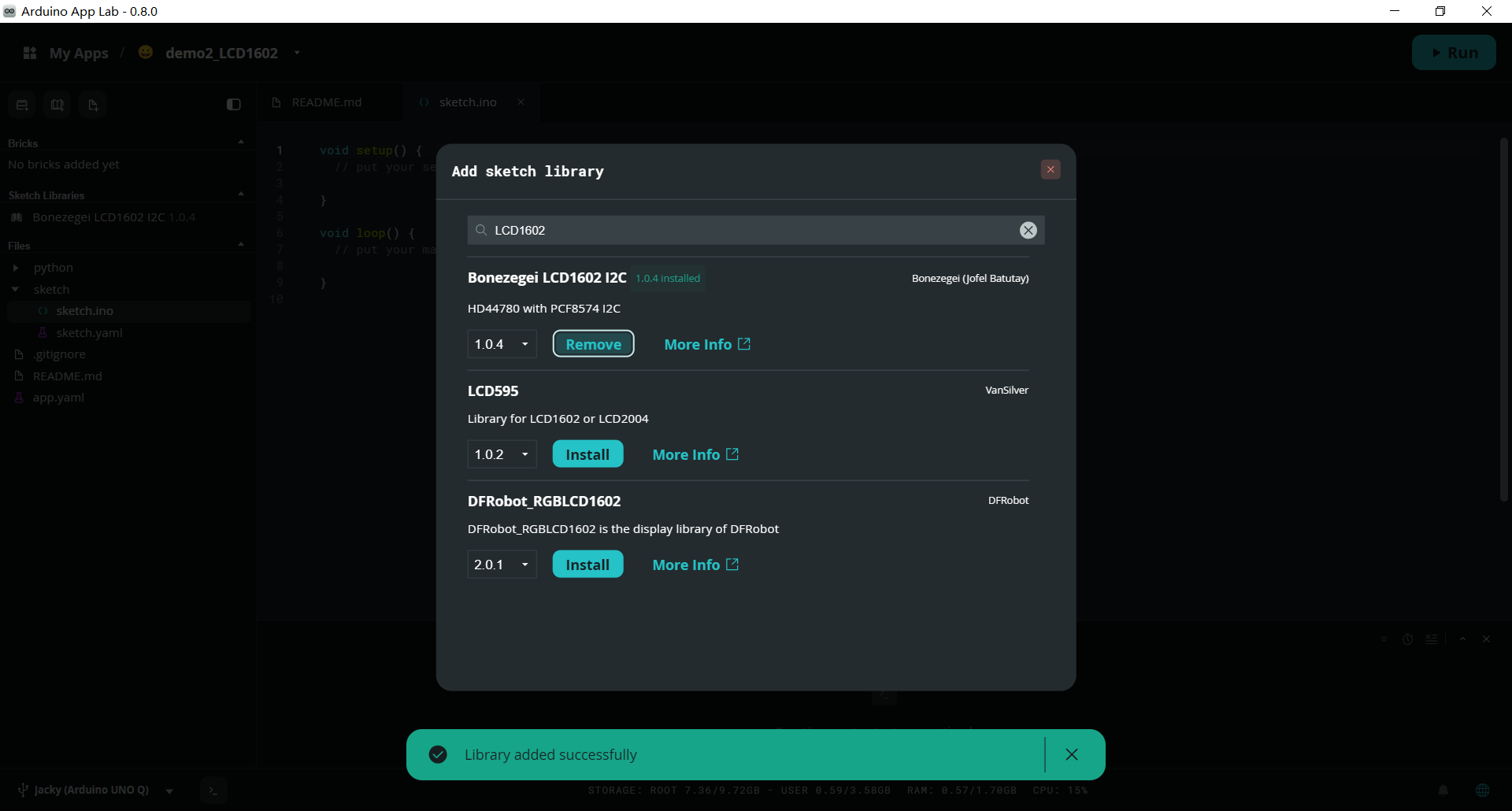

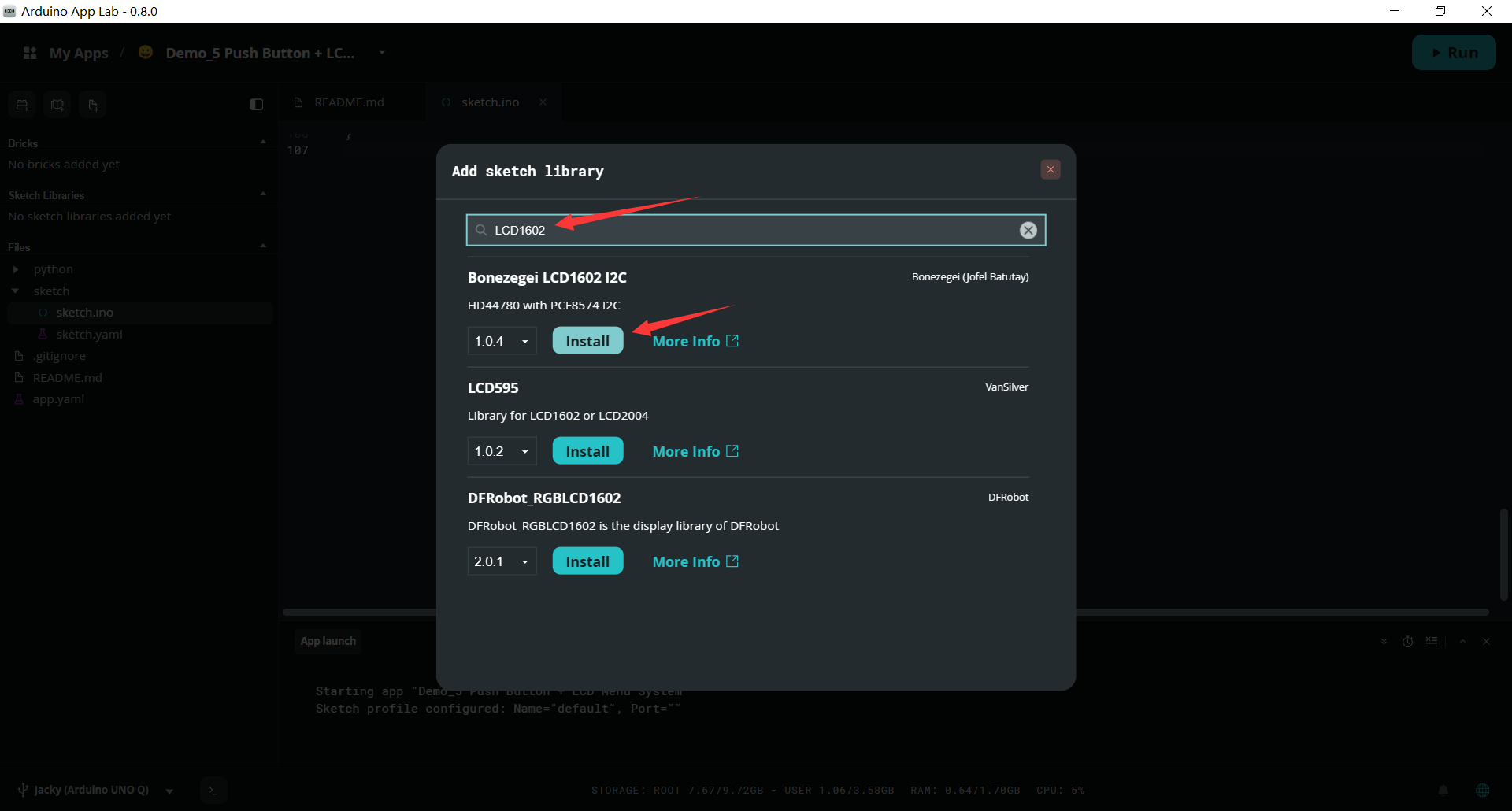

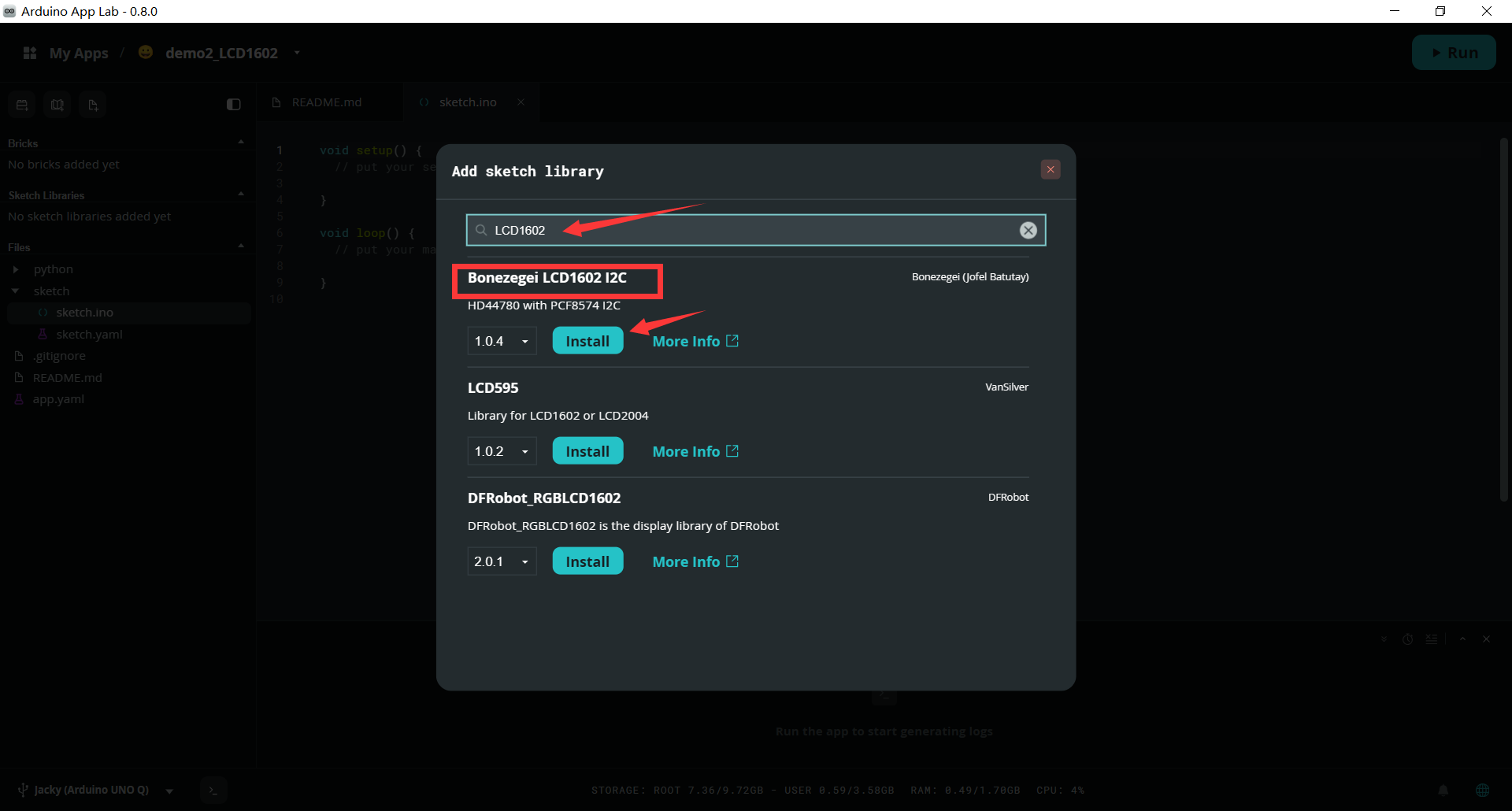

Figure 7-4: Library installation steps for Bonezegei LCD1602 I2C

Figure 7-5: Library installation steps for Bonezegei LCD1602 I2C

Figure 7-6: Library installation steps for Bonezegei LCD1602 I2C

Figure 7-7: Library installation steps for Bonezegei LCD1602 I2C

Figure 7-8: Library installation steps for Bonezegei LCD1602 I2C

Code

/*
 * Arduino UNO Q + EP-0257 + LCD1602 I2C - Kit Test
 * Bonezegei LCD1602 I2C v1.0.4 Corrected API
 */

#include <Bonezegei_LCD1602_I2C.h>

Bonezegei_LCD1602_I2C lcd(0x27);

void setup() {
  Serial.begin(115200);
  lcd.begin();
  lcd.setBacklight(1);  // Turn on backlight
  lcd.clear();

  // Welcome message
  lcd.setPosition(0, 0);
  lcd.print("UNO Q + EP-0257");
  lcd.setPosition(0, 1);
  lcd.print("Kit Ready!");

  Serial.println("LCD initialized with Bonezegei v1.0.4");
  delay(2000);
}

void loop() {
  static int count = 0;

  // Update second row with counter
  String msg = "Count: " + String(count) + "    ";
  lcd.setPosition(0, 1);
  lcd.print(msg.c_str());
  count++;
  delay(500);
}

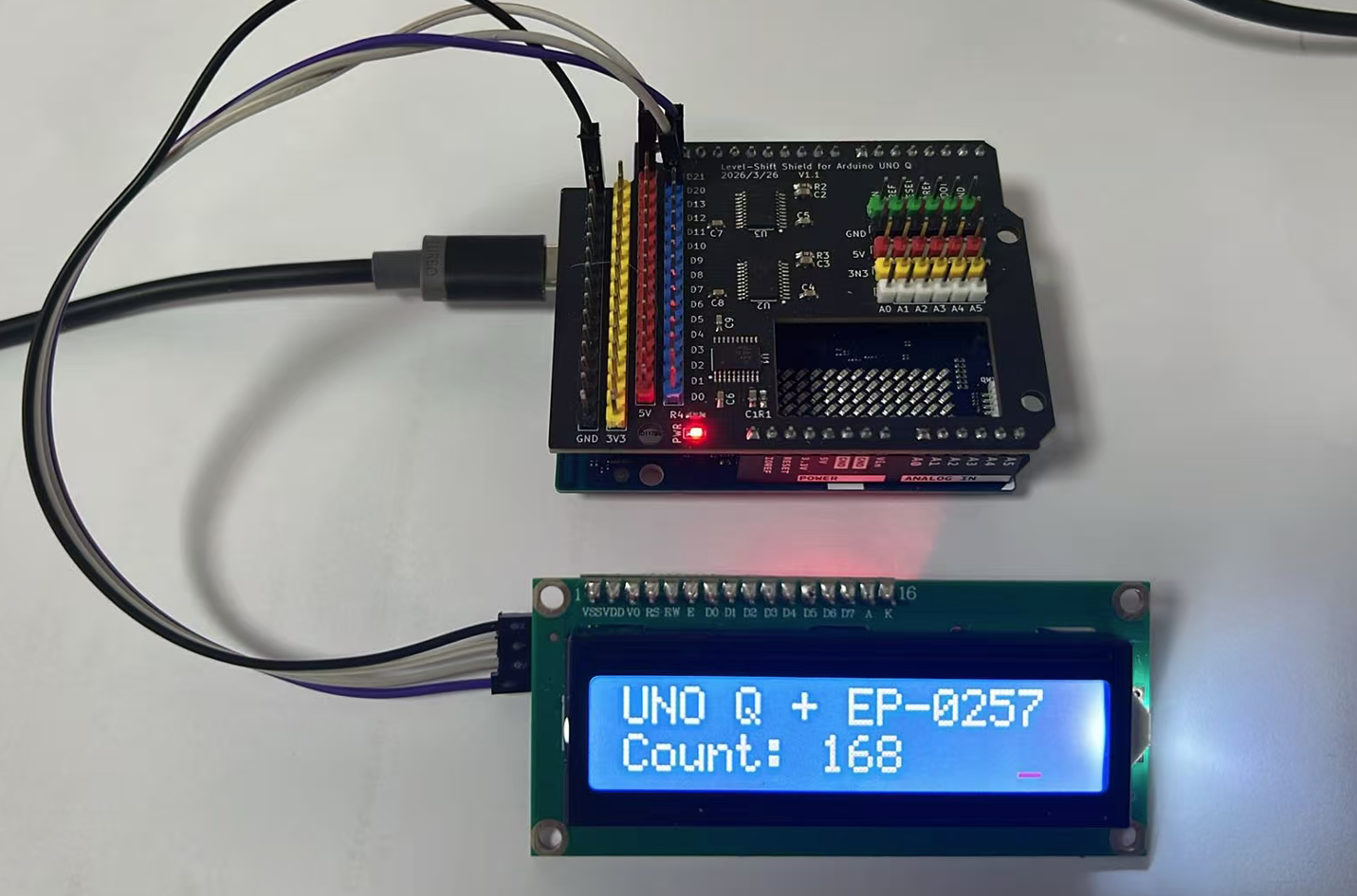

Figure 7-9: Experiment 2 — LCD1602 Experiment Result

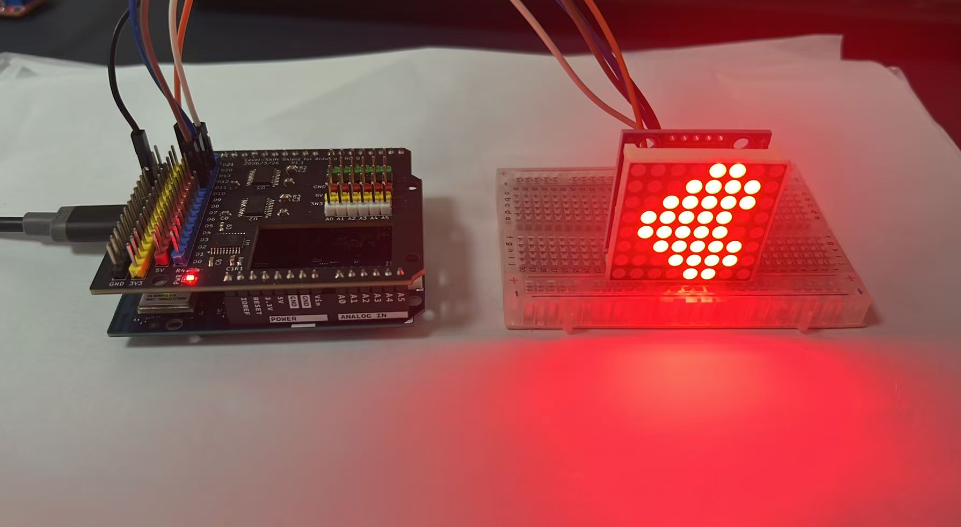

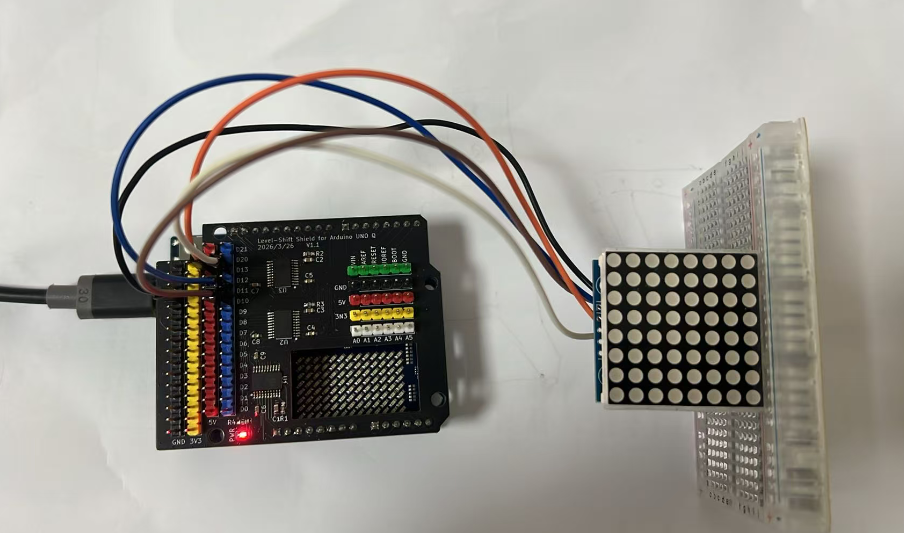

Experiment 3: SPI MAX7219 8×8 LED Matrix

Objective

Learn SPI communication and LED matrix display control.

Principle

SPI (Serial Peripheral Interface) is a four-wire full-duplex synchronous serial communication: - MOSI (Master Out Slave In): Master data output - MISO (Master In Slave Out): Master data input - SCK (Serial Clock): Clock signal - SS/CS (Slave Select): Chip select, active LOW

MAX7219 is a dedicated LED driver chip. It receives display data via SPI and automatically handles scan refresh.

Wiring Diagram

Figure 7-10: MD_MAX72xx wiring

Library Installation

Install MD_MAX72xx via Arduino Library Manager.

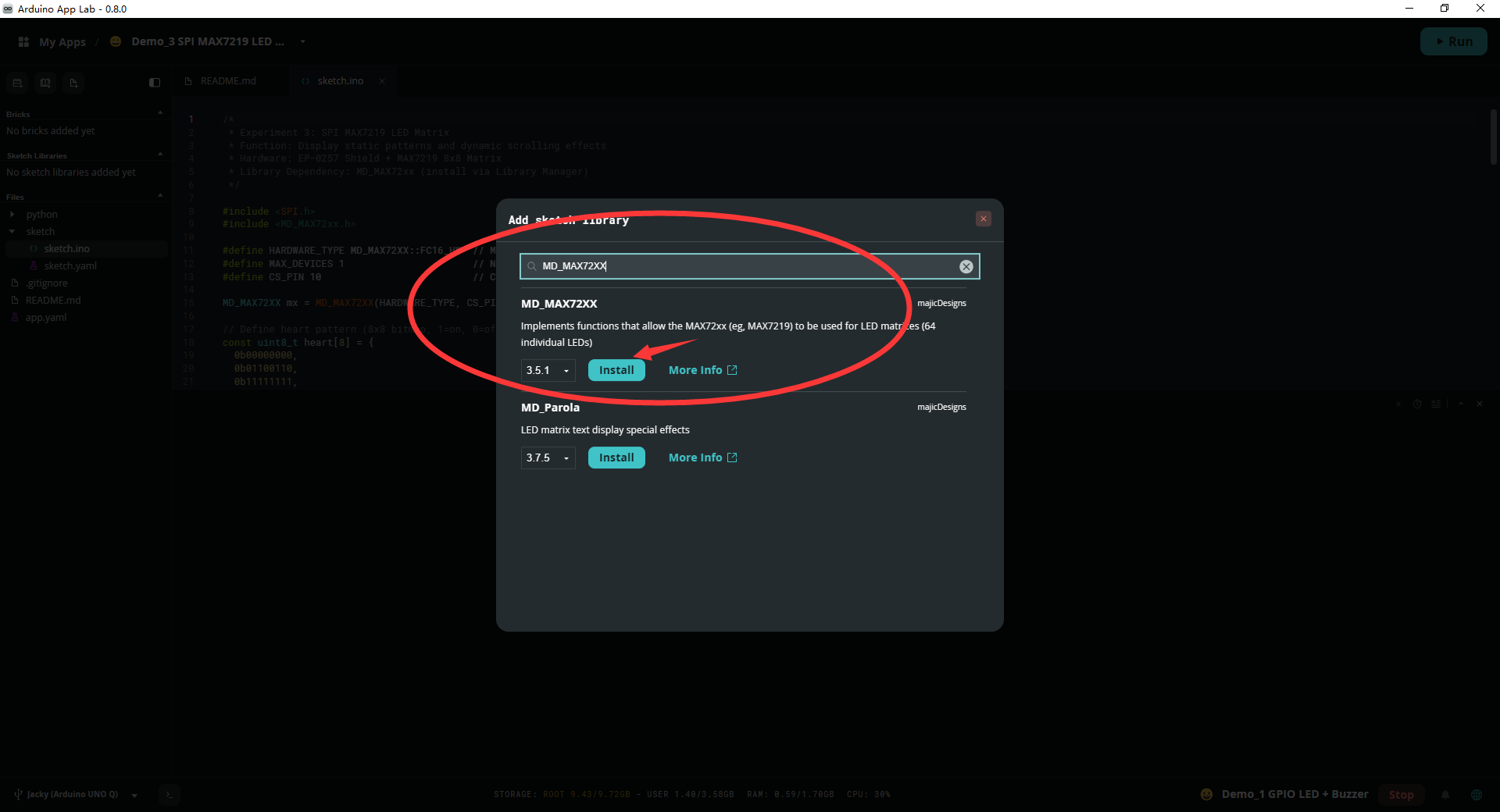

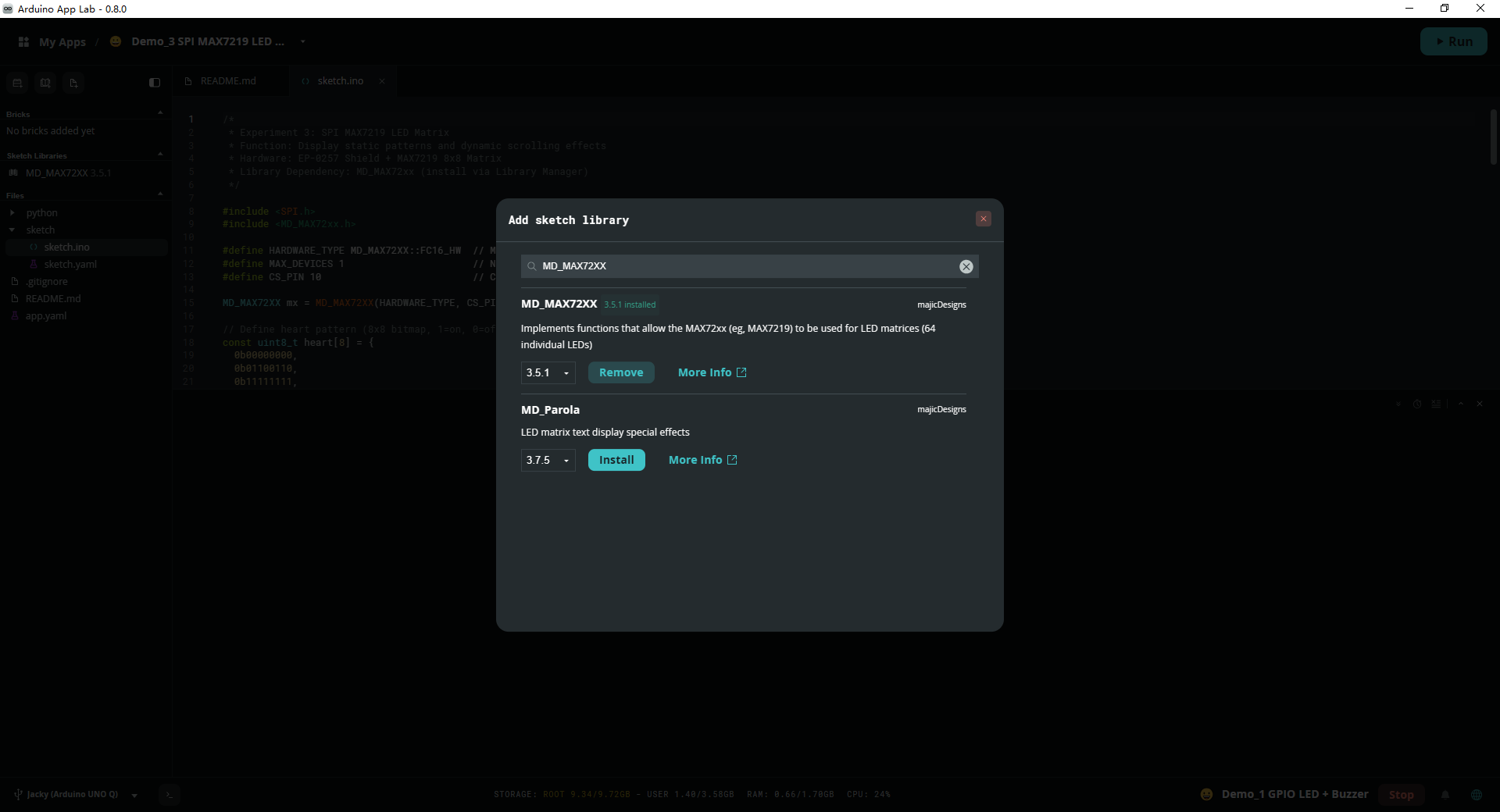

Figure 7-11: MD_MAX72xx library installation

Figure 7-12: MD_MAX72xx library installation

Code

/*
 * Experiment 3: SPI MAX7219 LED Matrix
 * Function: Display static patterns and animations
 * Hardware: EP-0257 Shield + MAX7219 8x8 Matrix
 * Library: MD_MAX72xx
 */

#include <SPI.h>
#include <MD_MAX72xx.h>

#define HARDWARE_TYPE MD_MAX72XX::FC16_HW  // Module hardware type
#define MAX_DEVICES 1                      // Number of cascaded devices
#define CS_PIN 10                          // Chip select pin D10

MD_MAX72XX mx = MD_MAX72XX(HARDWARE_TYPE, CS_PIN, MAX_DEVICES);

// Define heart pattern (8x8 bitmap, 1=on, 0=off)
const uint8_t heart[8] = {
  0b00000000,
  0b01100110,
  0b11111111,
  0b11111111,
  0b01111110,
  0b00111100,
  0b00011000,
  0b00000000
};

void setup() {
  mx.begin();                            // Initialize MAX7219
  mx.control(MD_MAX72XX::INTENSITY, 8);  // Set brightness 0-15
  Serial.begin(115200);
  Serial.println("Experiment 3: MAX7219 LED Matrix");
  displayPattern(heart);
  delay(2000);
}

void loop() {
  // Display animated pattern
  animateHeart();
  delay(1000);
}

// Display static bitmap
void displayPattern(const uint8_t *pattern) {
  for (uint8_t row = 0; row < 8; row++) {
    mx.setRow(0, row, pattern[row]);
  }
}

// Heart breathing light effect
void animateHeart() {
  for (int brightness = 0; brightness <= 15; brightness++) {
    mx.control(MD_MAX72XX::INTENSITY, brightness);
    displayPattern(heart);
    delay(80);
  }
  for (int brightness = 15; brightness >= 0; brightness--) {
    mx.control(MD_MAX72XX::INTENSITY, brightness);
    displayPattern(heart);
    delay(80);
  }
}

Demo Result

Figure 7-13: MAX7219 LED matrix demo result

Experiment 4: HC-SR04 Ultrasonic Distance Measurement + Buzzer Alert

Objective

Learn time-of-flight distance measurement and graded alarm implementation.

Principle

Ultrasonic Distance Measurement:

Distance Formula:

Distance = Duration × Speed of Sound / 2 = Duration × 343m/s / 2
In microseconds: Distance (cm) = Duration (μs) × 0.01715

Proximity-Based Buzzer Alert:

Figure 7-14: Distance detection system with multi-level monitoring

Wiring Diagram

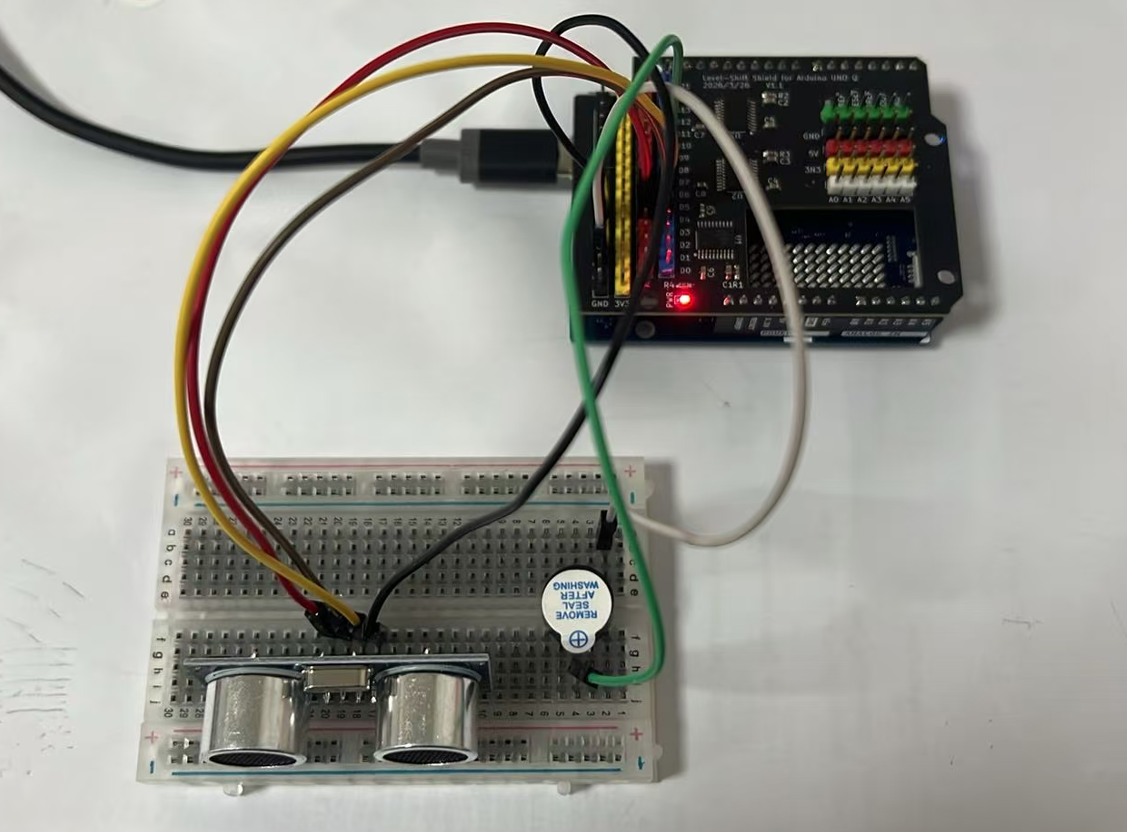

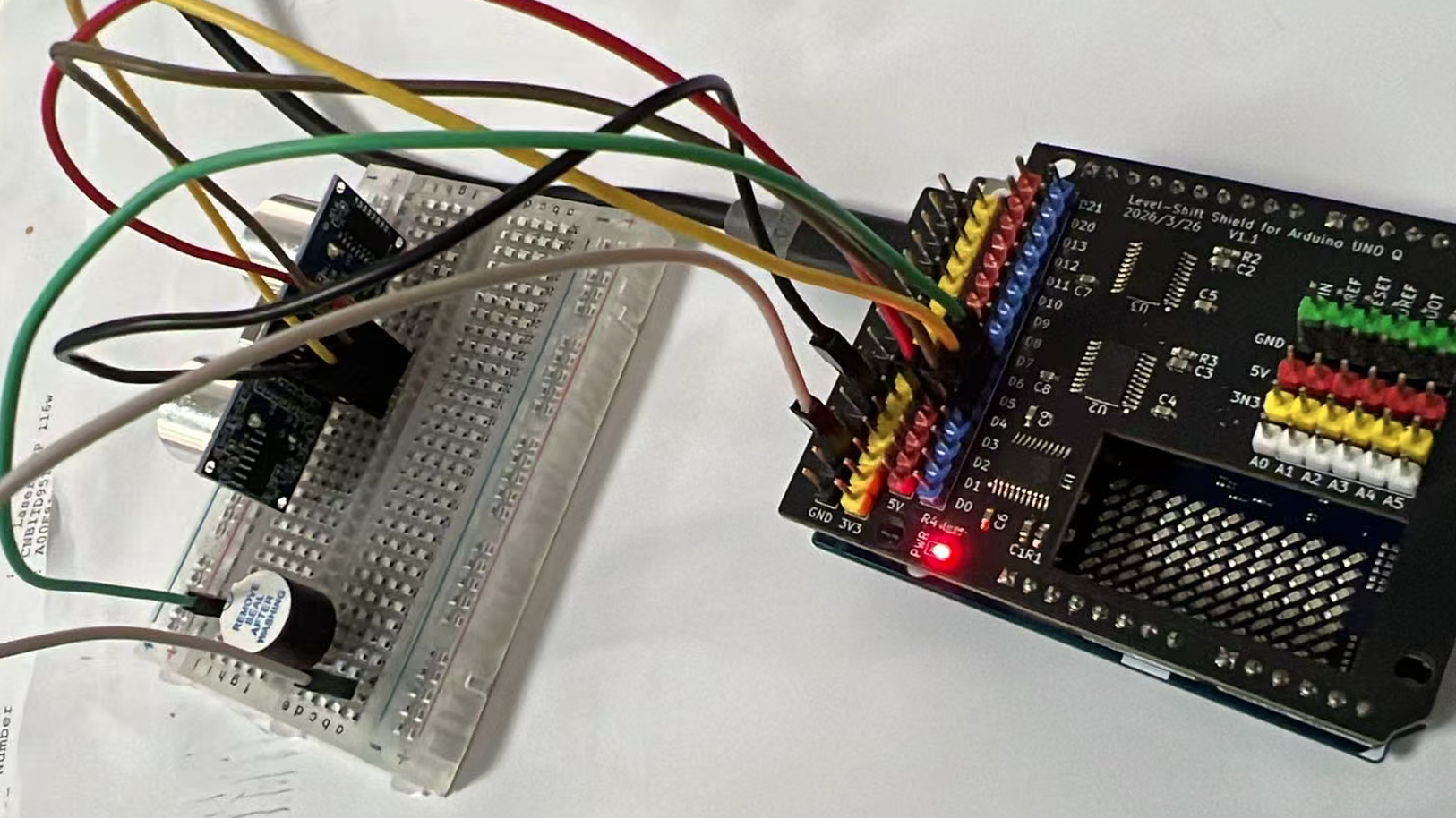

Figure 7-15: Demo 4 Wiring

Figure 7-16: Demo 4 Wiring

Code

/*
 * Experiment 4: HC-SR04 Ultrasonic Distance Measurement + Buzzer Alert
 * Function: Measure distance, buzzer beeps faster when closer
 * Hardware: EP-0257 Shield + HC-SR04 + Buzzer
 */

#define TRIG_PIN 4
#define ECHO_PIN 5
#define BUZZER_PIN 6   // Buzzer pin

void setup() {
  pinMode(TRIG_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);
  pinMode(BUZZER_PIN, OUTPUT);
  Serial.begin(115200);
  Serial.println("Experiment 4: Ultrasonic Distance + Buzzer");
}

void loop() {
  long distance = measureDistance();

  // Serial output
  Serial.print("Distance: ");
  if (distance >= 0) {
    Serial.print(distance);
    Serial.println(" cm");
  } else if (distance == -1) {
    Serial.println("No signal!");
  } else if (distance == -2) {
    Serial.println("Out of range!");
  }

  // Buzzer alert logic
  handleBuzzer(distance);
  delay(100);  // Base sampling interval
}

// Buzzer control: shorter interval when closer
void handleBuzzer(long distance) {
  static unsigned long lastBeepTime = 0;
  unsigned long currentTime = millis();

  // Error state: warning beep every second
  if (distance < 0) {
    if (currentTime - lastBeepTime >= 1000) {
      tone(BUZZER_PIN, 1000, 200);
      lastBeepTime = currentTime;
    }
    return;
  }

  // Safe distance: silent (> 200cm)
  if (distance > 200) {
    noTone(BUZZER_PIN);
    return;
  }

  // Calculate beep interval: closer = shorter interval
  unsigned long beepInterval = map(distance, 10, 200, 100, 2000);
  beepInterval = constrain(beepInterval, 100, 2000);

  // Closer = higher pitch and longer beep
  int frequency = map(distance, 10, 200, 2000, 500);
  int duration = map(distance, 10, 200, 300, 100);
  frequency = constrain(frequency, 500, 2000);
  duration = constrain(duration, 100, 300);

  // Execute beep
  if (currentTime - lastBeepTime >= beepInterval) {
    tone(BUZZER_PIN, frequency, duration);
    lastBeepTime = currentTime;
  }
}

long measureDistance() {
  // Send trigger pulse
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  // Read echo pulse duration
  long duration = pulseIn(ECHO_PIN, HIGH, 30000);

  // Calculate distance (cm)
  long distance = duration * 0.01715;
  if (duration == 0) return -1;
  if (distance > 400 || distance < 2) return -2;
  return distance;
}

Experiment 5: Push Button + LCD Menu System

Objective

Build a multi-layer menu interface navigated by push buttons.

Wiring Diagram

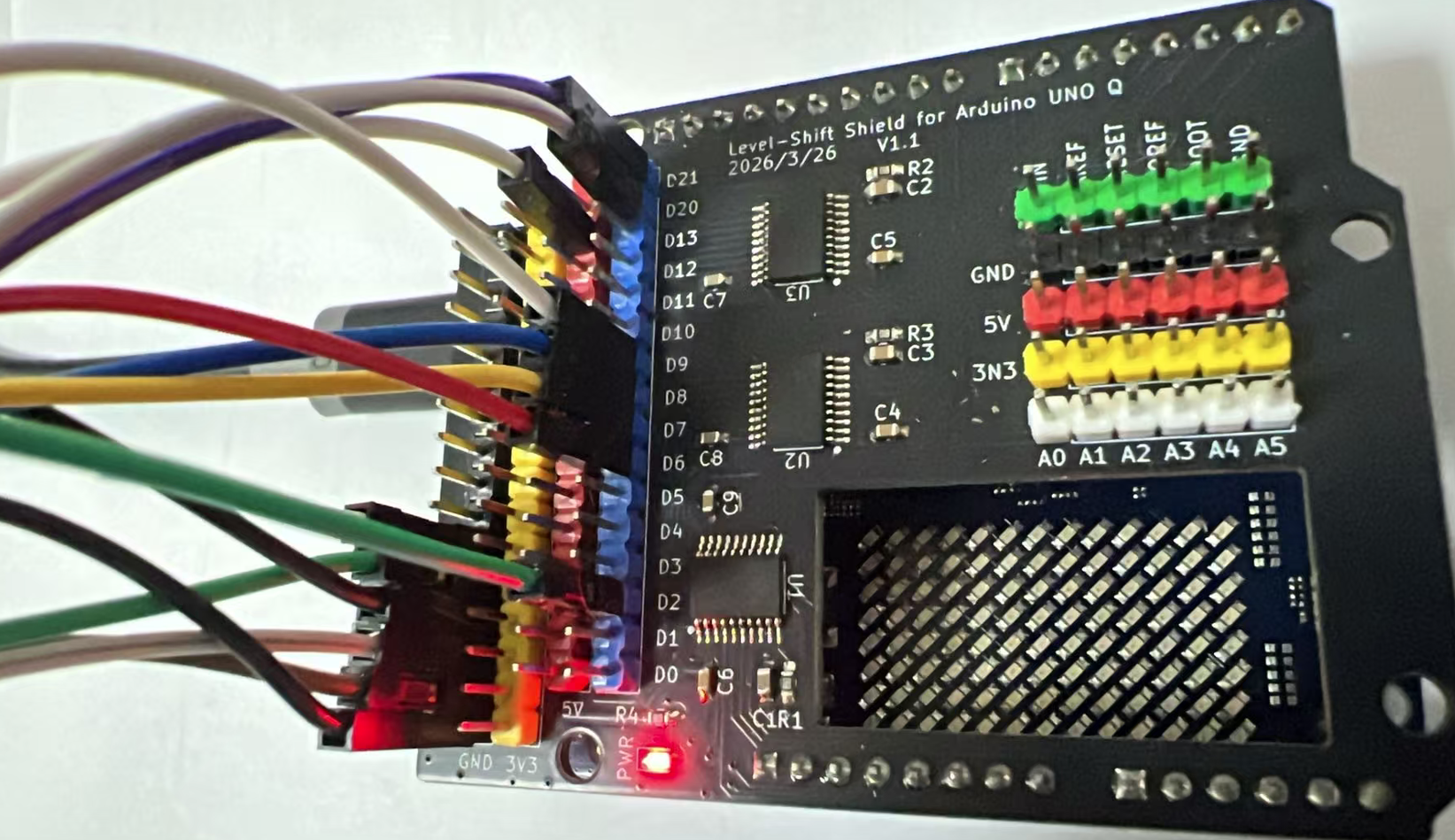

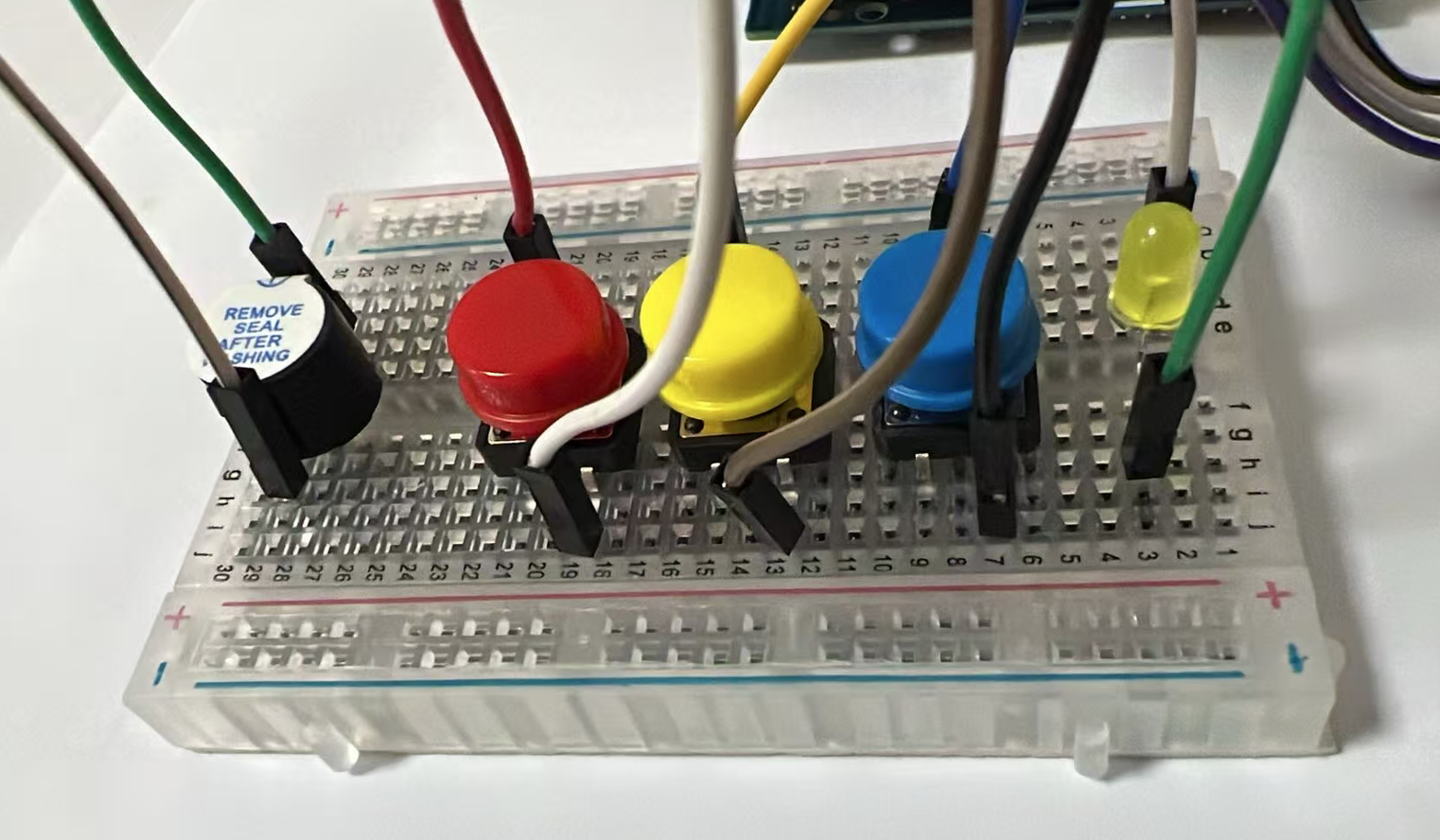

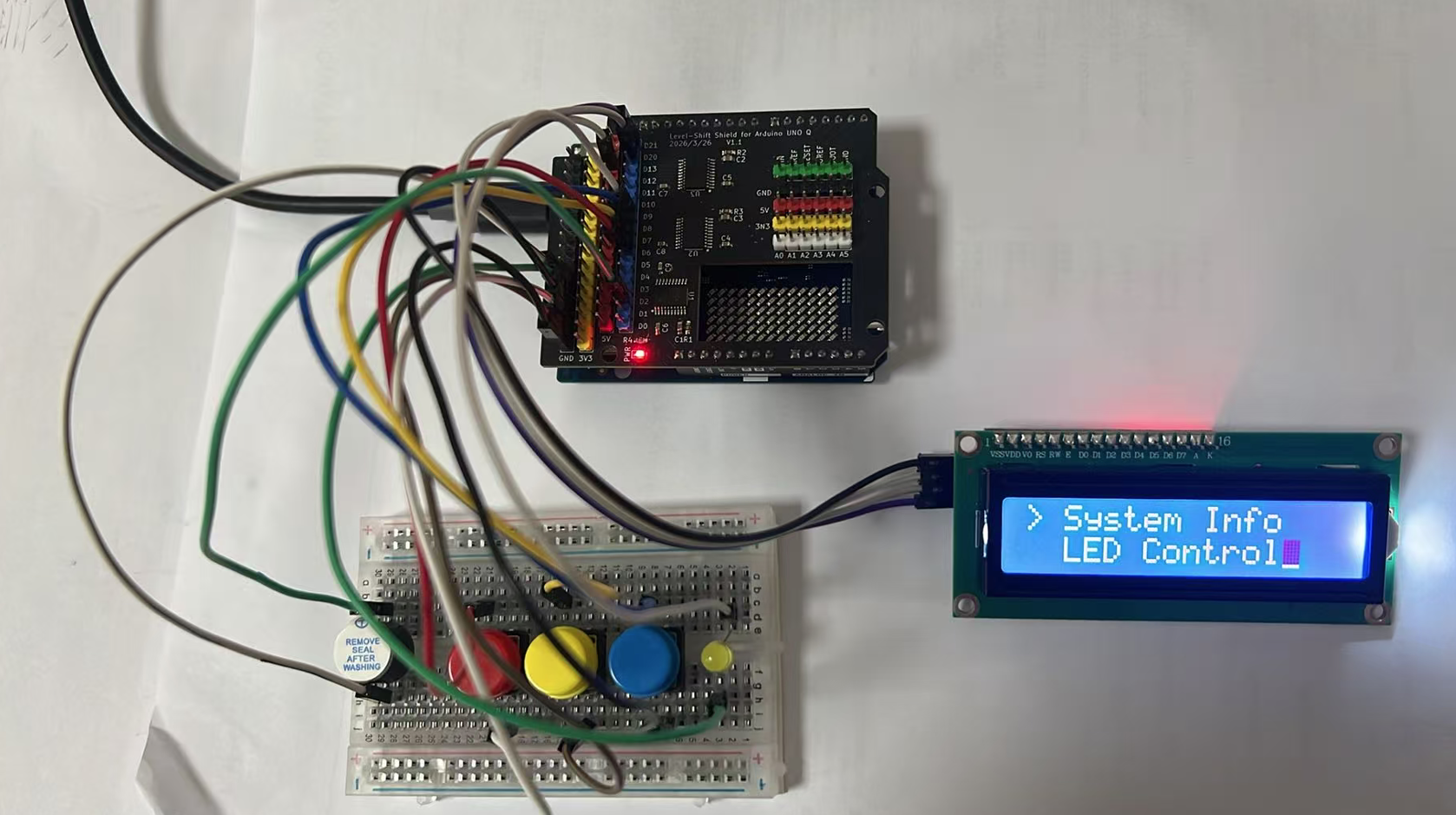

Figure 7-17: Demo 5 Wiring

Figure 7-18: Demo 5 Wiring

Figure 7-19: Demo 5 Wiring

Library Installation

Figure 7-20: 1602 library installation

Figure 7-21: 1602 library installation

Code

/*
 * Experiment 5: Push Button + LCD Menu System
 * Function: Three-layer menu navigation, control LED and buzzer
 * Hardware: EP-0257 Shield + LCD1602 + 3x Push Buttons
 * Library: Bonezegei_LCD1602_I2C
 */

#include <Bonezegei_LCD1602_I2C.h>

// Create object lcd, default address is 0x27
Bonezegei_LCD1602_I2C lcd(0x27);

#define BTN_UP   6
#define BTN_DOWN 7
#define BTN_OK   8
#define LED_PIN  9
#define BUZZER   2

// Menu structure
const char* menuItems[] = {"LED Control", "Buzzer Test", "System Info"};
const int menuCount = 3;
int currentMenu = 0;
int menuLevel = 0;  // 0=Main menu, 1=Sub menu
bool ledState = false;

void setup() {
  pinMode(BTN_UP, INPUT);
  pinMode(BTN_DOWN, INPUT);
  pinMode(BTN_OK, INPUT);
  pinMode(LED_PIN, OUTPUT);
  pinMode(BUZZER, OUTPUT);

  lcd.begin();
  Serial.begin(115200);
  Serial.println("Experiment 5: Button Menu System");
  showMainMenu();
}

void loop() {
  handleButtons();
  delay(150);  // Simple debounce
}

void handleButtons() {
  if (digitalRead(BTN_UP) == HIGH) {
    if (menuLevel == 0) {
      currentMenu = (currentMenu - 1 + menuCount) % menuCount;
      showMainMenu();
    }
  }
  else if (digitalRead(BTN_DOWN) == HIGH) {
    if (menuLevel == 0) {
      currentMenu = (currentMenu + 1) % menuCount;
      showMainMenu();
    }
  }
  else if (digitalRead(BTN_OK) == HIGH) {
    executeMenu();
  }
}

void showMainMenu() {
  lcd.clear();
  lcd.setCursor(0, 0);
  lcd.print("> ");
  lcd.print(menuItems[currentMenu]);
  lcd.setCursor(0, 1);
  lcd.print("  ");
  lcd.print(menuItems[(currentMenu + 1) % menuCount]);
}

void executeMenu() {
  lcd.clear();
  switch (currentMenu) {
    case 0:  // LED Control
      ledState = !ledState;
      digitalWrite(LED_PIN, ledState ? HIGH : LOW);
      lcd.print("LED: ");
      lcd.print(ledState ? "ON " : "OFF");
      delay(1000);
      break;
    case 1:  // Buzzer Test
      lcd.print("Buzzer Test...");
      for (int i = 0; i < 3; i++) {
        digitalWrite(BUZZER, HIGH);
        delay(200);
        digitalWrite(BUZZER, LOW);
        delay(200);
      }
      break;
    case 2:  // System Info
      lcd.print("UNO Q + EP-0257");
      lcd.setCursor(0, 1);
      lcd.print("3.3V -> 5V OK");
      delay(2000);
      break;
  }
  showMainMenu();
}

Demo Result

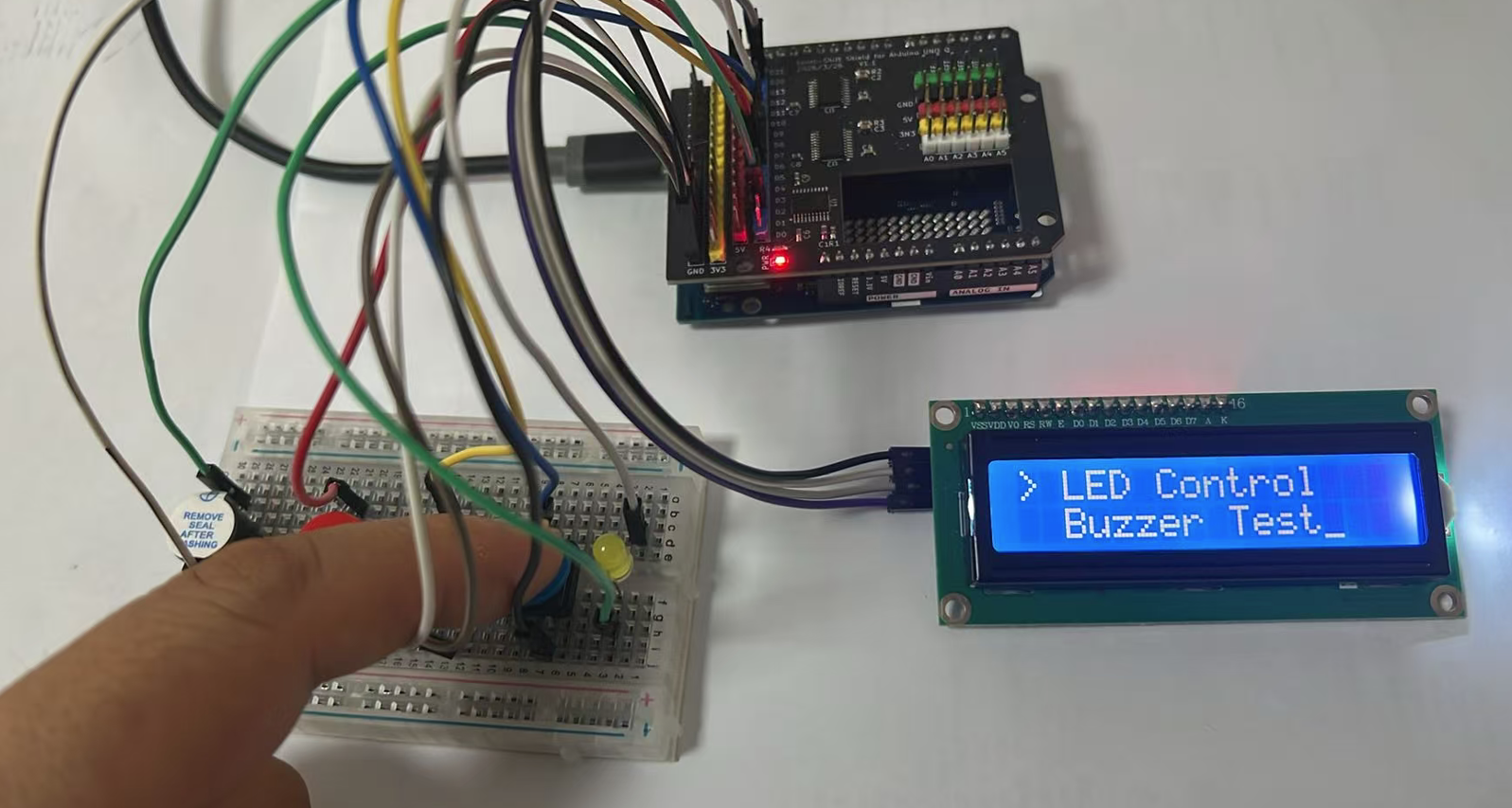

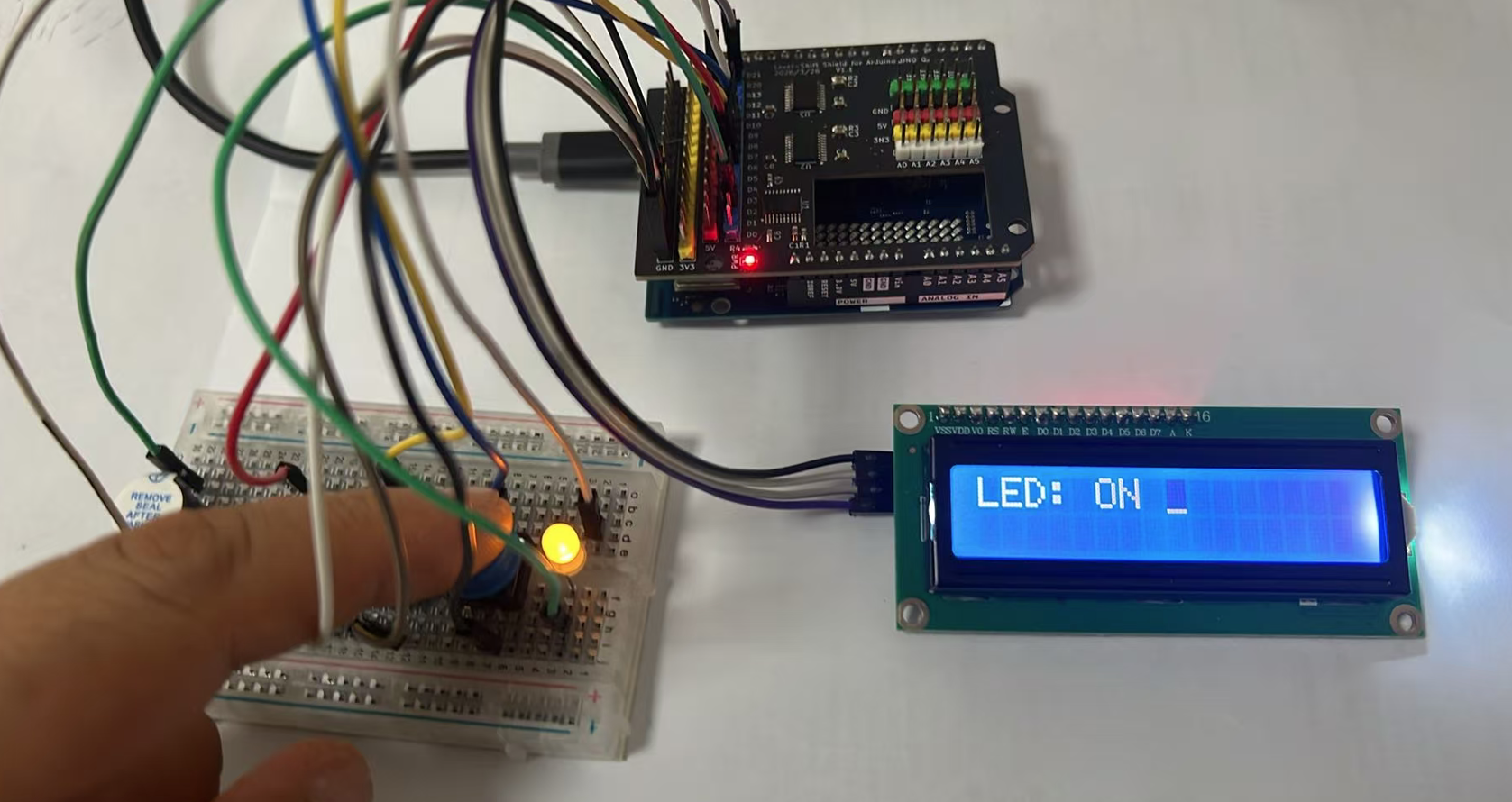

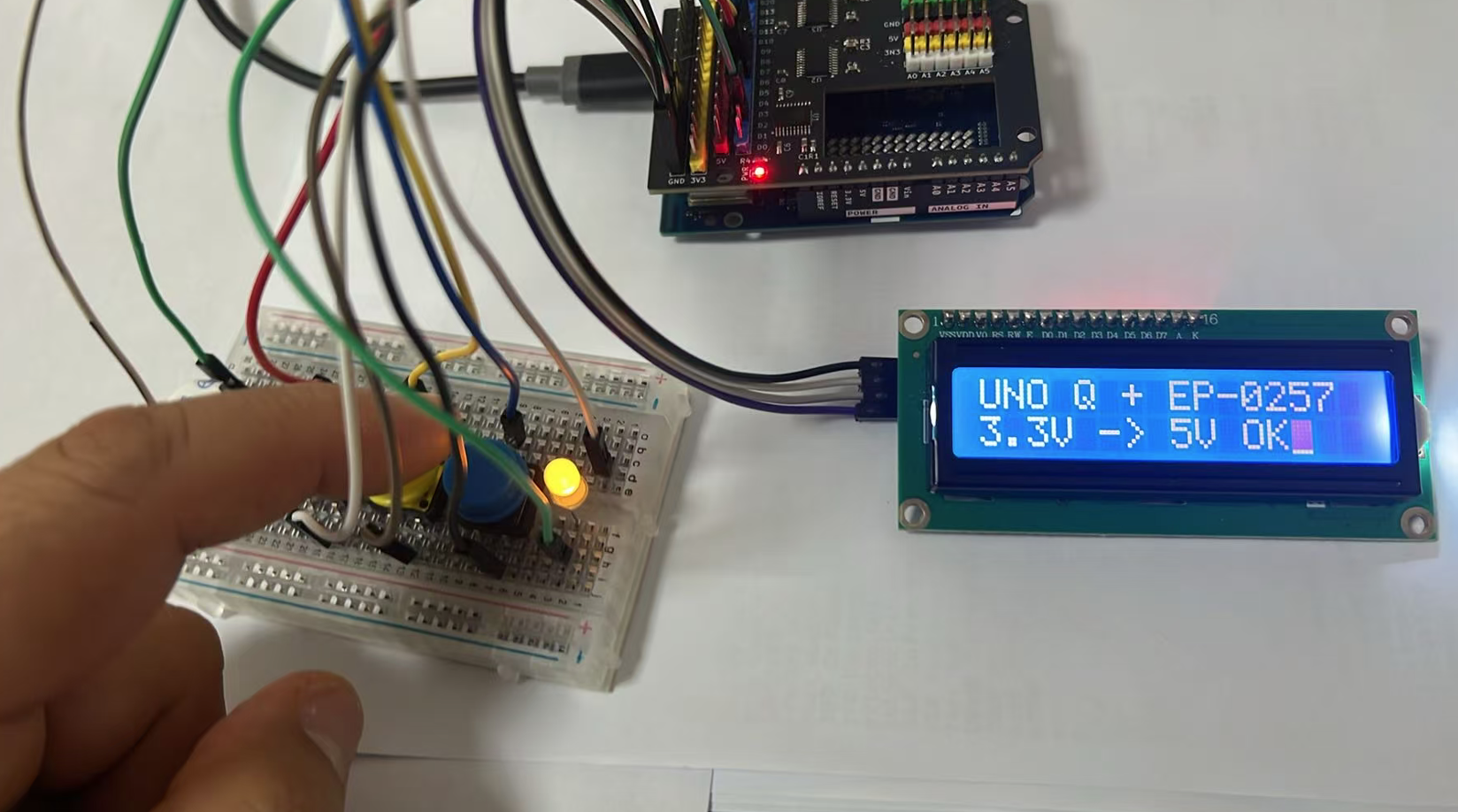

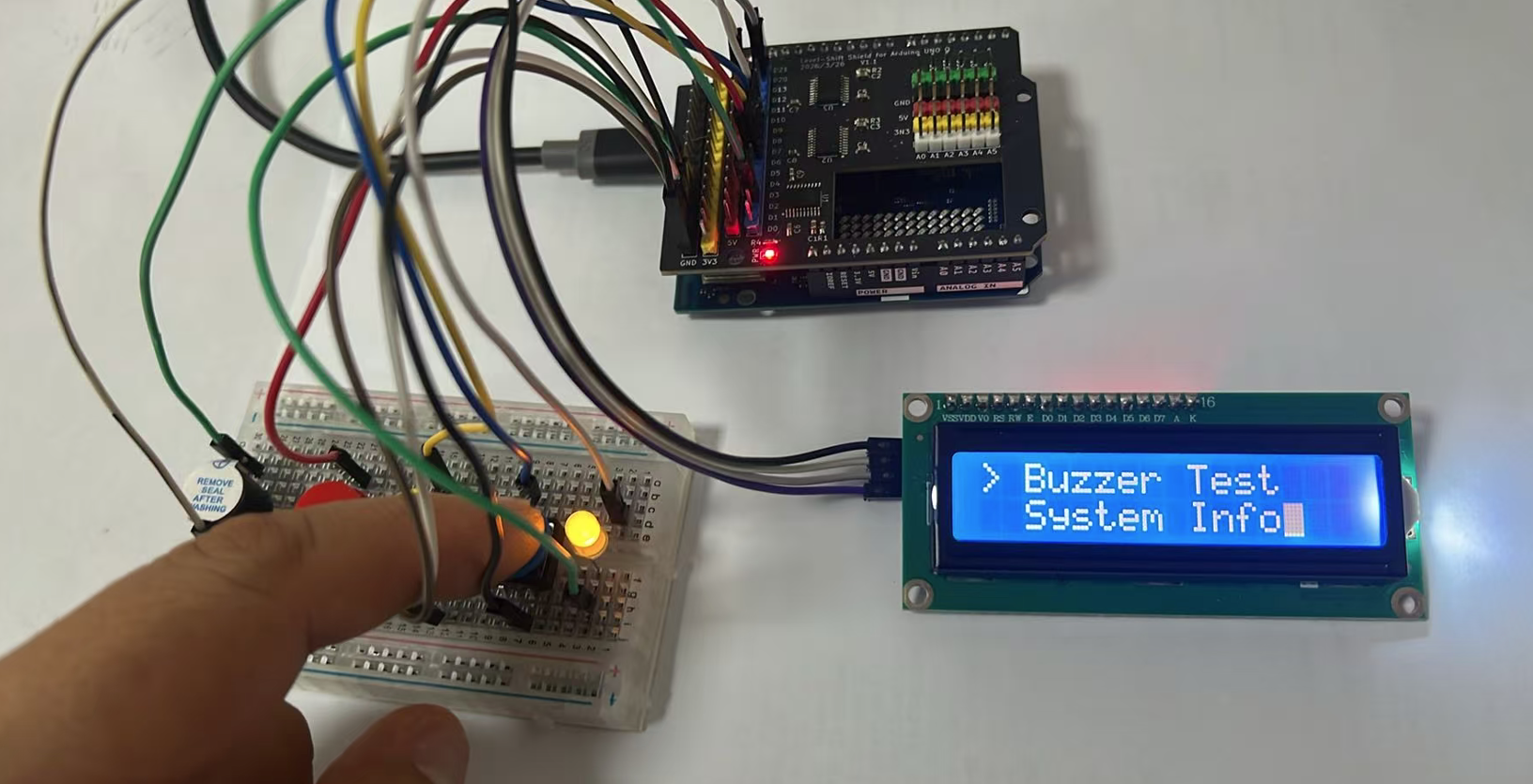

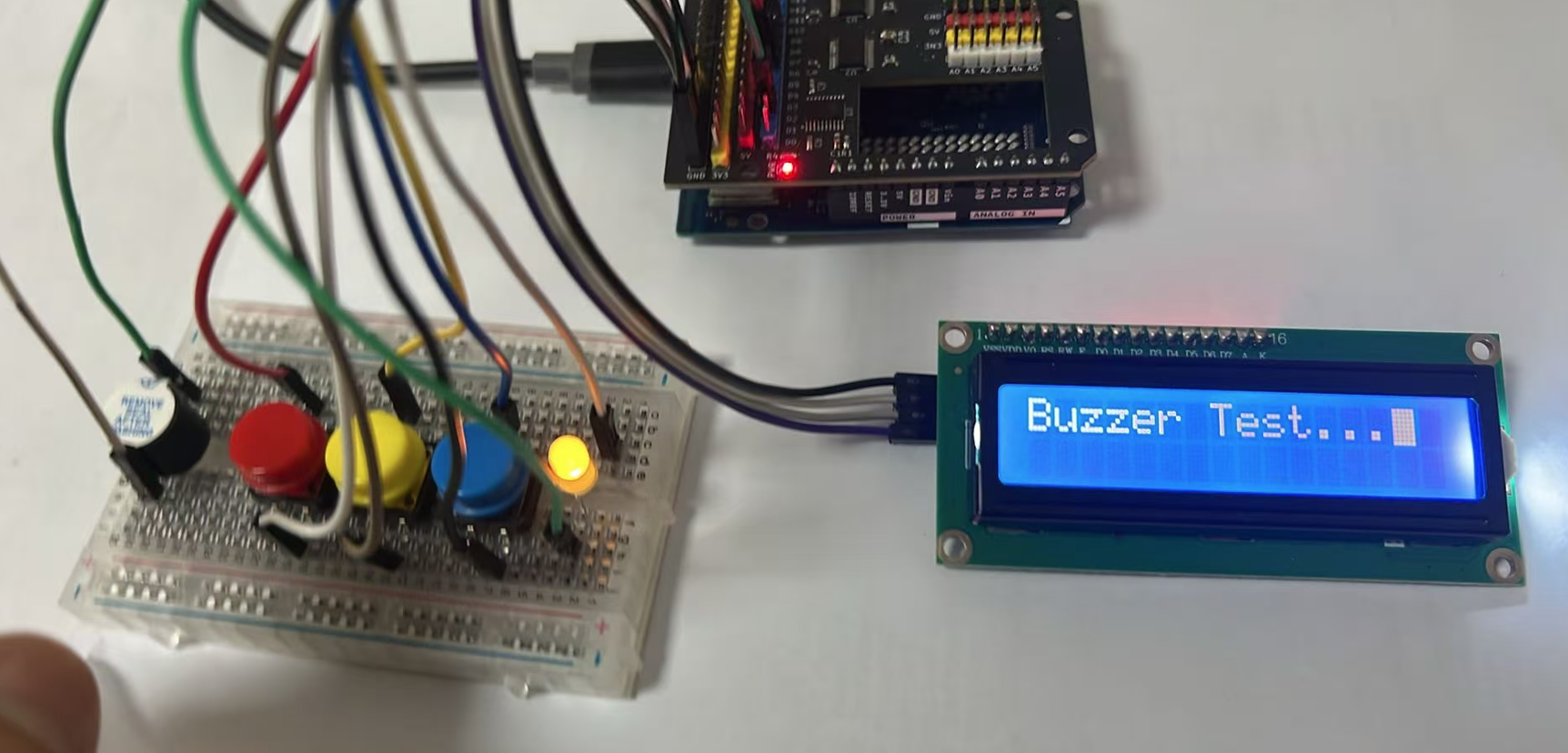

Figure 7-22: Menu navigation showing "System Info" and "LED Control" options

Figure 7-23: Menu navigation showing "System Info" and "LED Control" options

Figure 7-24: Menu navigation showing "System Info" and "LED Control" options

Figure 7-25: Menu navigation showing "System Info" and "LED Control" options

Figure 7-26: Menu navigation showing "System Info" and "LED Control" options

Experiment 6: Relay Control for Low-Voltage Loads

Objective

Learn relay control for switching external circuits.

Principle

The relay module uses optocoupler isolation to achieve low-voltage control of high-voltage/high-current loads. Modules usually have HIGH-level trigger and LOW-level trigger modes, selectable via jumper cap.

⚠️ Safety Warning: This kit is only for controlling low-voltage loads (<< 30V DC). Controlling mains voltage (220V AC) requires professional knowledge and insulation protection.

Wiring Diagram

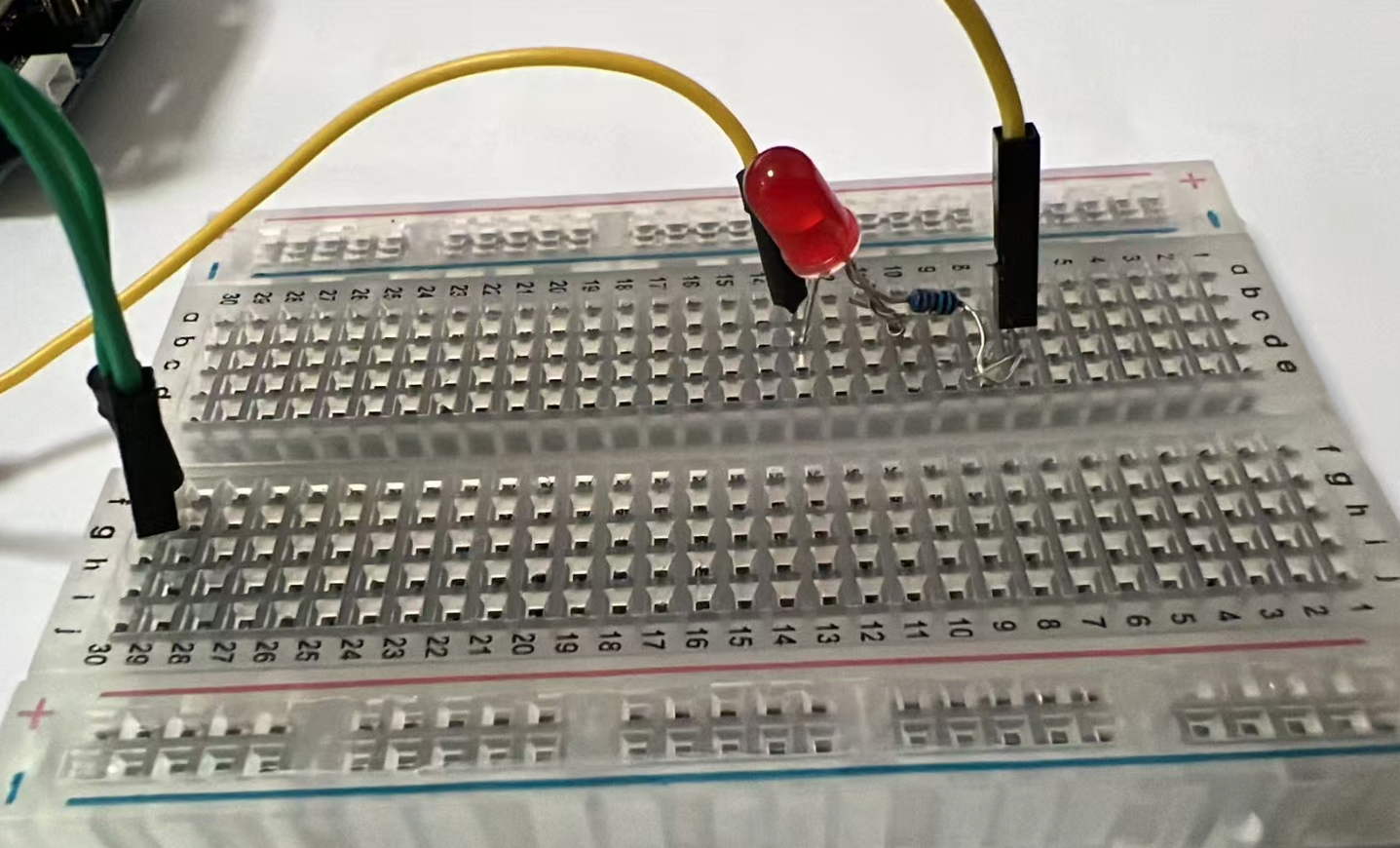

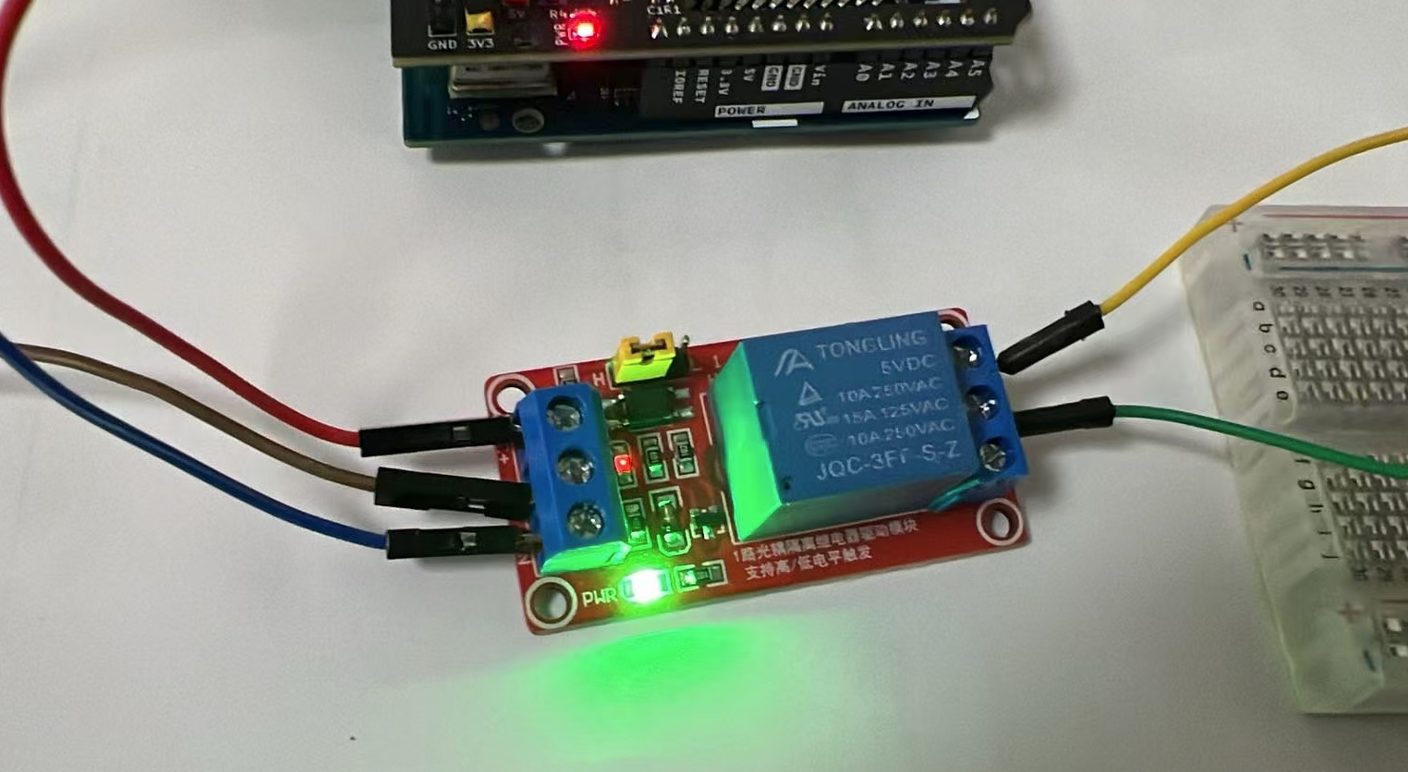

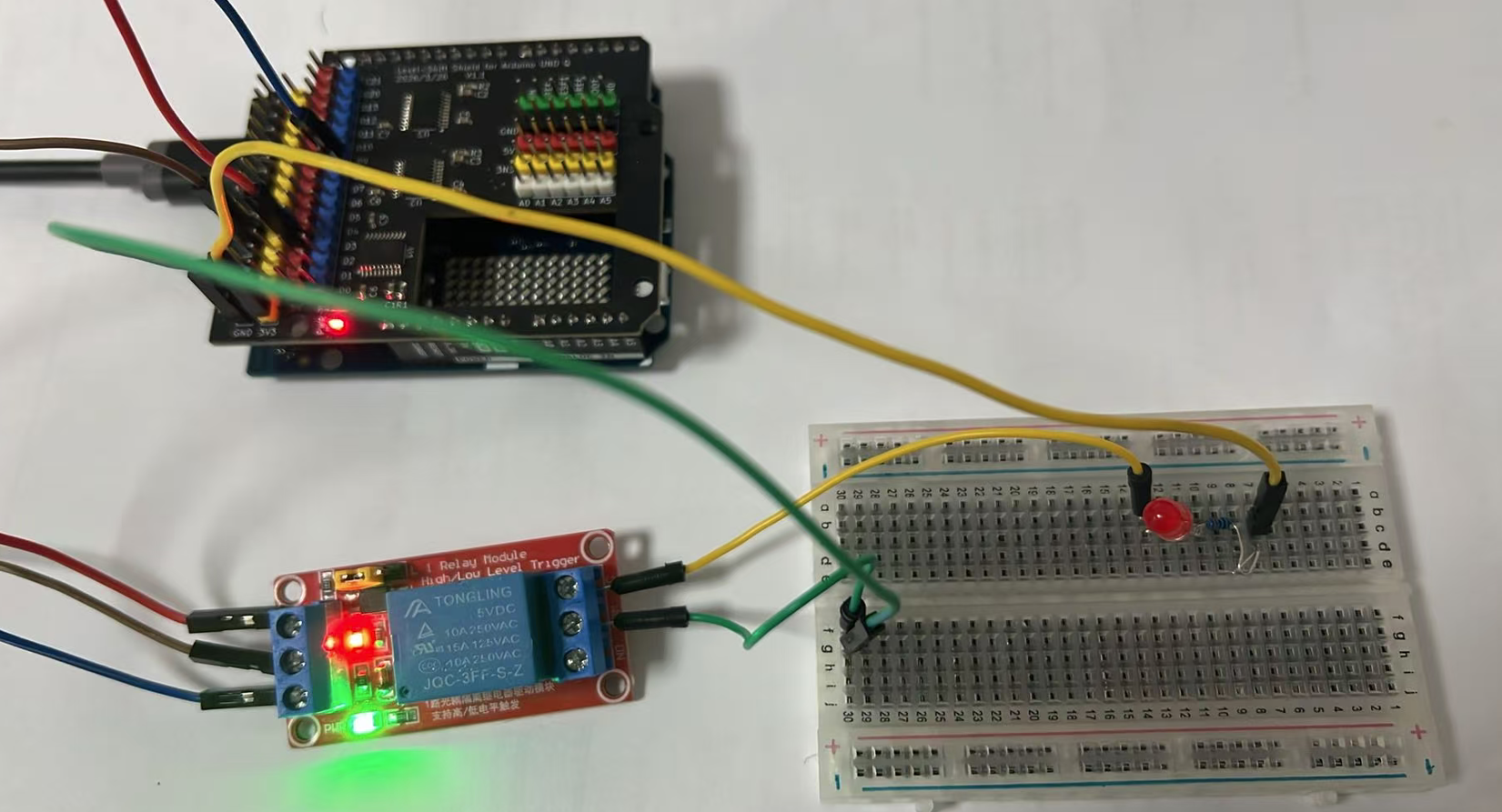

Figure 7-27: Demo 6 Wiring

Figure 7-28: Demo 6 Wiring

Figure 7-29: Demo 6 Wiring

Relay Output Terminals:

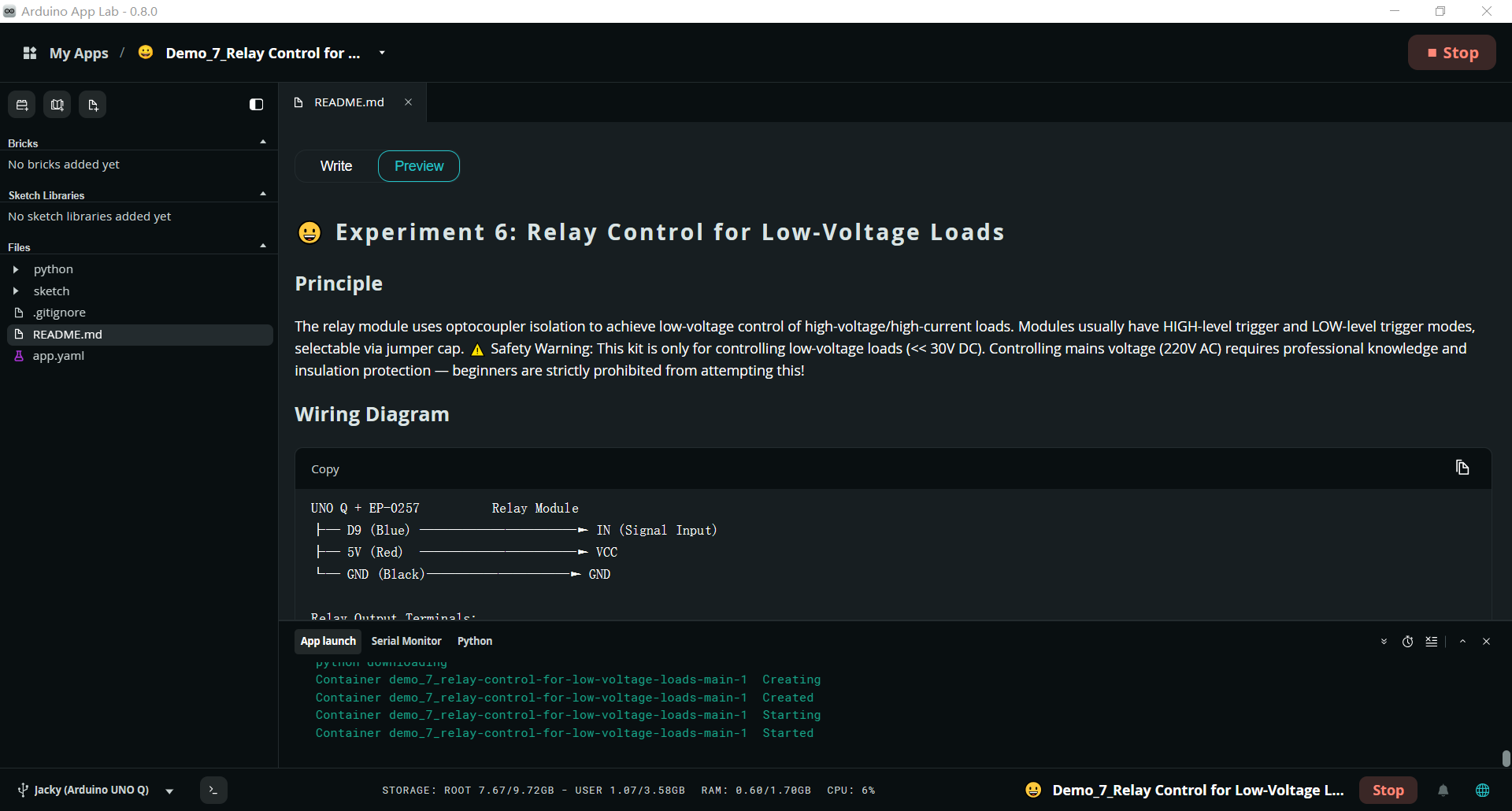

Figure 7-30: Demo 6 library installation

Code

/*
 * Experiment 6: Relay Control for Low-Voltage Loads
 * Function: Timed relay on/off control
 * Hardware: EP-0257 Shield + 1-Channel Relay Module + Low-Voltage Load
 */

#define RELAY_PIN 9

void setup() {
  pinMode(RELAY_PIN, OUTPUT);
  digitalWrite(RELAY_PIN, LOW);  // Initial state: OFF
  Serial.begin(115200);
  Serial.println("Experiment 6: Relay Control");
  Serial.println("Relay toggles every 3 seconds");
}

void loop() {
  Serial.println("Relay: ON (Energized)");
  digitalWrite(RELAY_PIN, HIGH);  // HIGH-level trigger mode
  delay(3000);
  Serial.println("Relay: OFF (De-energized)");
  digitalWrite(RELAY_PIN, LOW);
  delay(3000);
}

Demo Result

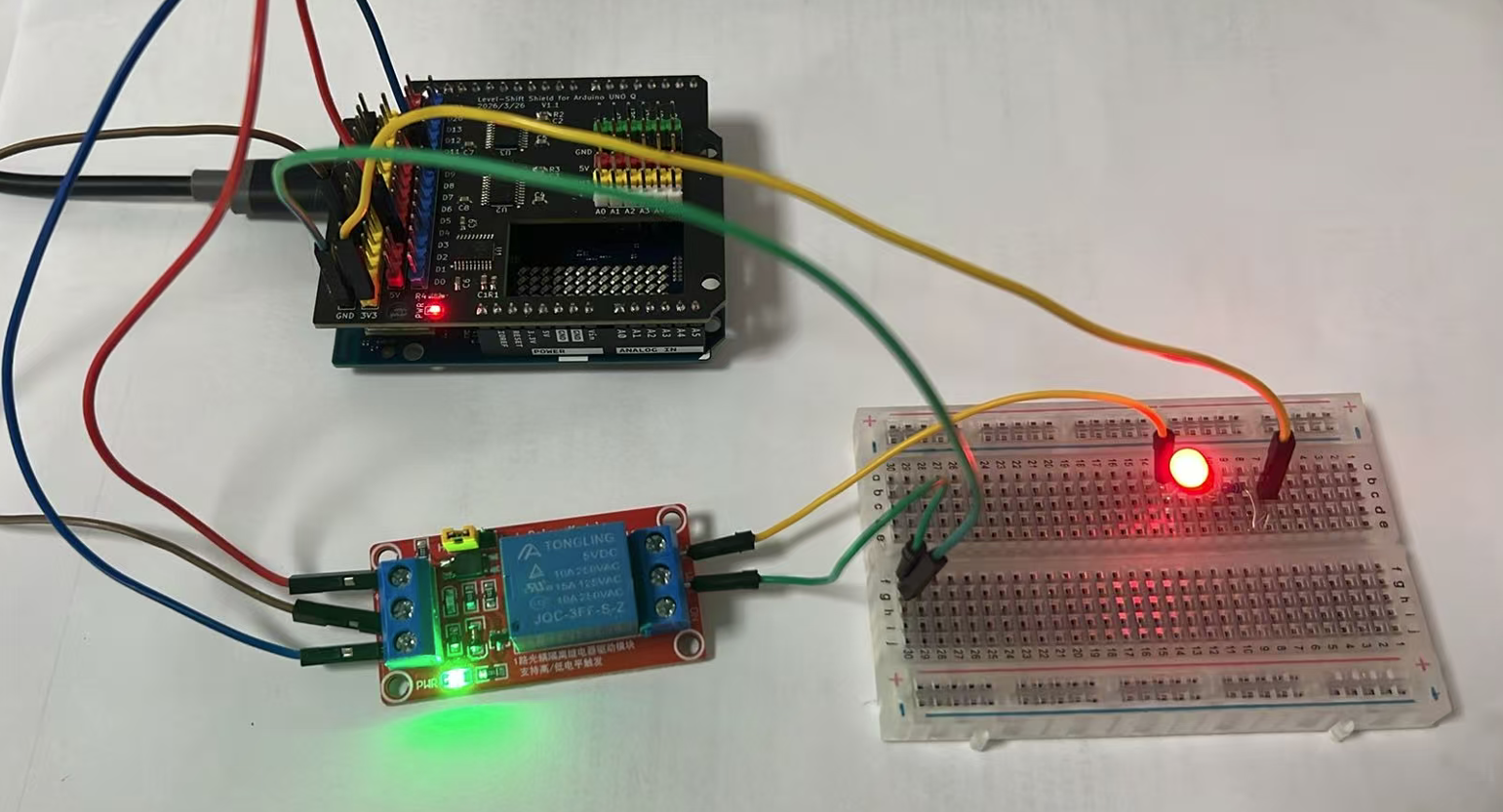

Figure 7-31: Relay module control demonstration

Experiment 7: Servo Control

Objective

Learn PWM servo control for precise angular positioning.

Principle

The SG90 9g servo uses PWM signal to control angle, with a 20ms period and 0.5ms–2.5ms pulse width corresponding to 0°–180°. The SG90 draws approximately 100mA typical current and up to 250mA at stall.

⚠️ IMPORTANT: Servo MUST be powered by external 5V supply. UNO Q only provides signal and common ground!

Wiring Diagram

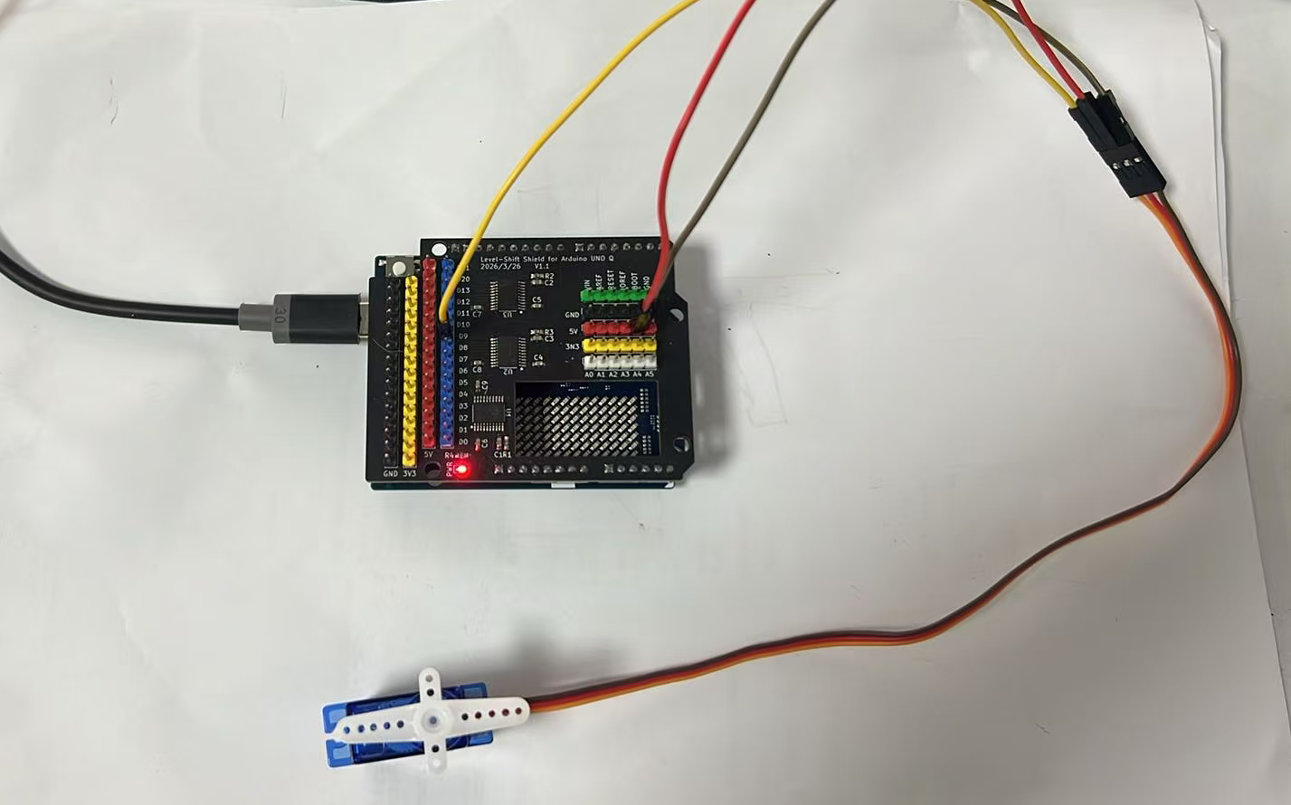

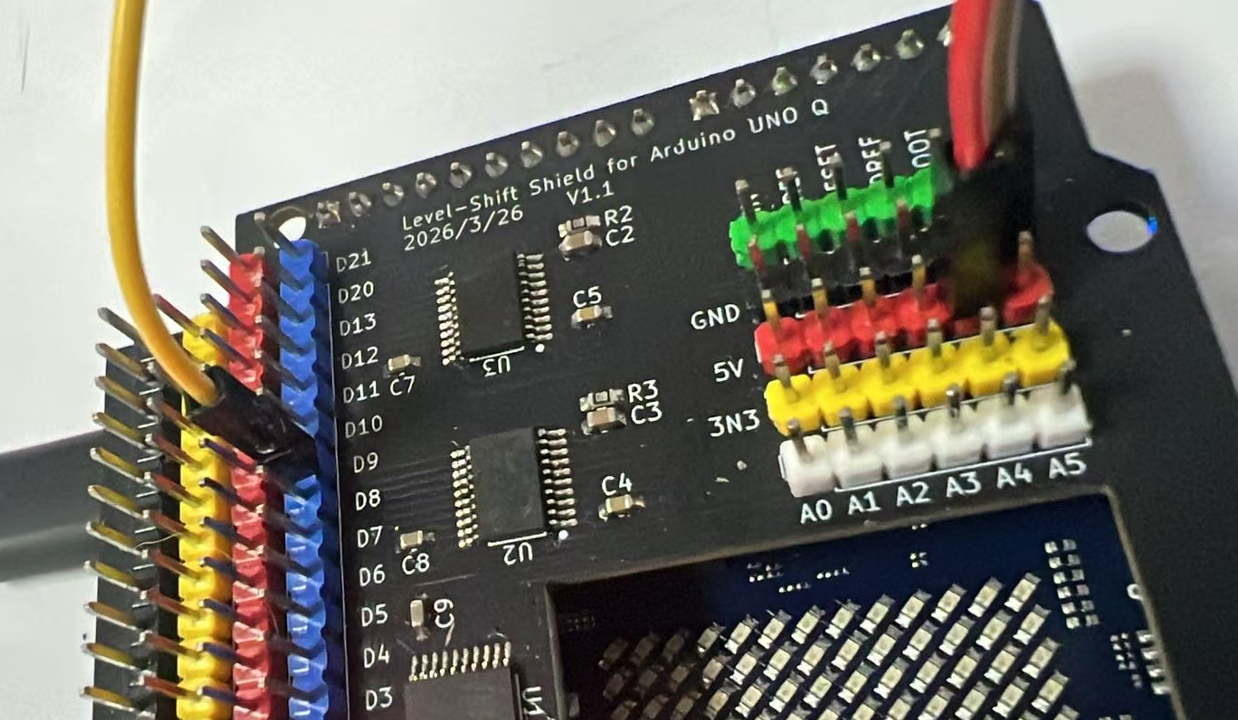

Figure 7-32: Servo motor precise position control

Figure 7-33: Servo motor precise position control

Library Installation

Install the Servo library via Arduino Library Manager (built-in, may require manual installation).

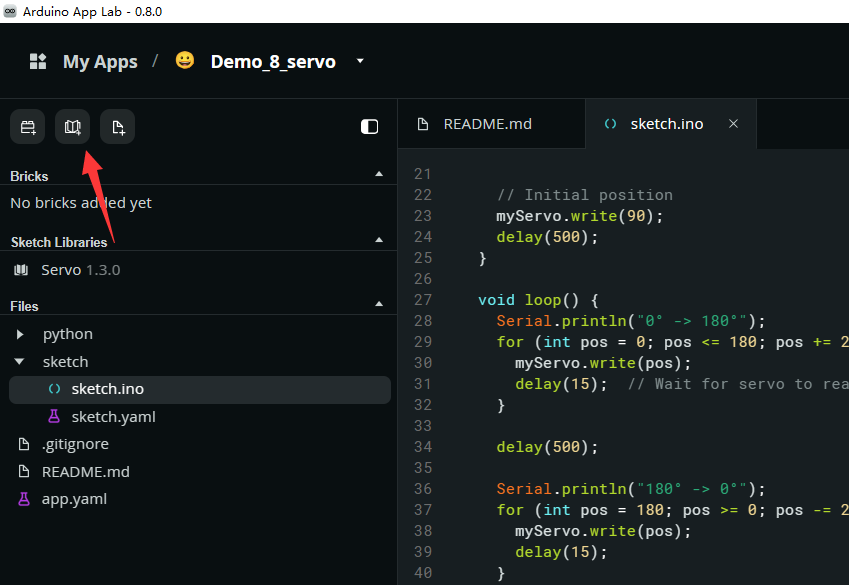

Figure 7-34: Demo 7 Library Installation

Figure 7-35: Demo 7 Library Installation

Figure 7-36: Demo 7 Library Installation

Code

/*
 * Experiment 7: Servo Control
 * Function: Servo sweeps 0°-180° back and forth
 * Hardware: EP-0257 Shield + SG90 + External 5V Power Supply
 * Library: Servo (built into Arduino)
 *
 * ⚠️ IMPORTANT: Servo MUST be powered by external 5V supply!
 */

#include <Servo.h>

Servo myServo;
#define SERVO_PIN 9

void setup() {
  myServo.attach(SERVO_PIN);  // Bind to PWM pin D9
  Serial.begin(115200);
  Serial.println("Experiment 7: Servo Control");
  Serial.println("Ensure servo uses external 5V power supply!");

  // Initial position
  myServo.write(90);
  delay(500);
}

void loop() {
  Serial.println("0° -> 180°");
  for (int pos = 0; pos <= 180; pos += 2) {
    myServo.write(pos);
    delay(15);  // Wait for servo to reach position
  }
  delay(500);

  Serial.println("180° -> 0°");
  for (int pos = 180; pos >= 0; pos -= 2) {
    myServo.write(pos);
    delay(15);
  }
  delay(500);
}

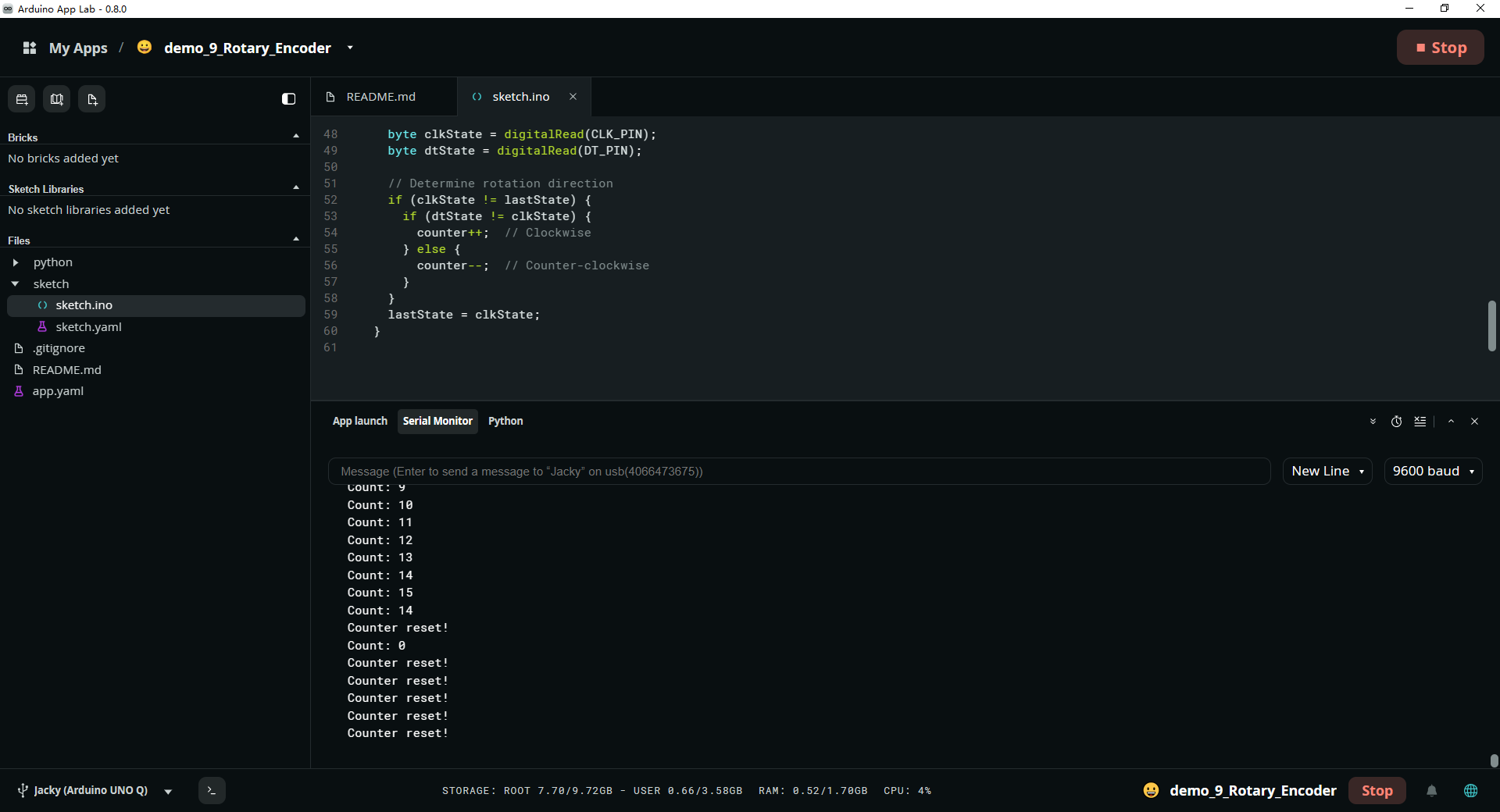

Experiment 8: Rotary Encoder

Objective

Learn rotary encoder input with interrupt-based counting.

Principle

Incremental encoders output two-phase quadrature pulses (A, B phases). Rotation direction is determined by phase difference. Includes push button function, outputs LOW when pressed.

Wiring Diagram

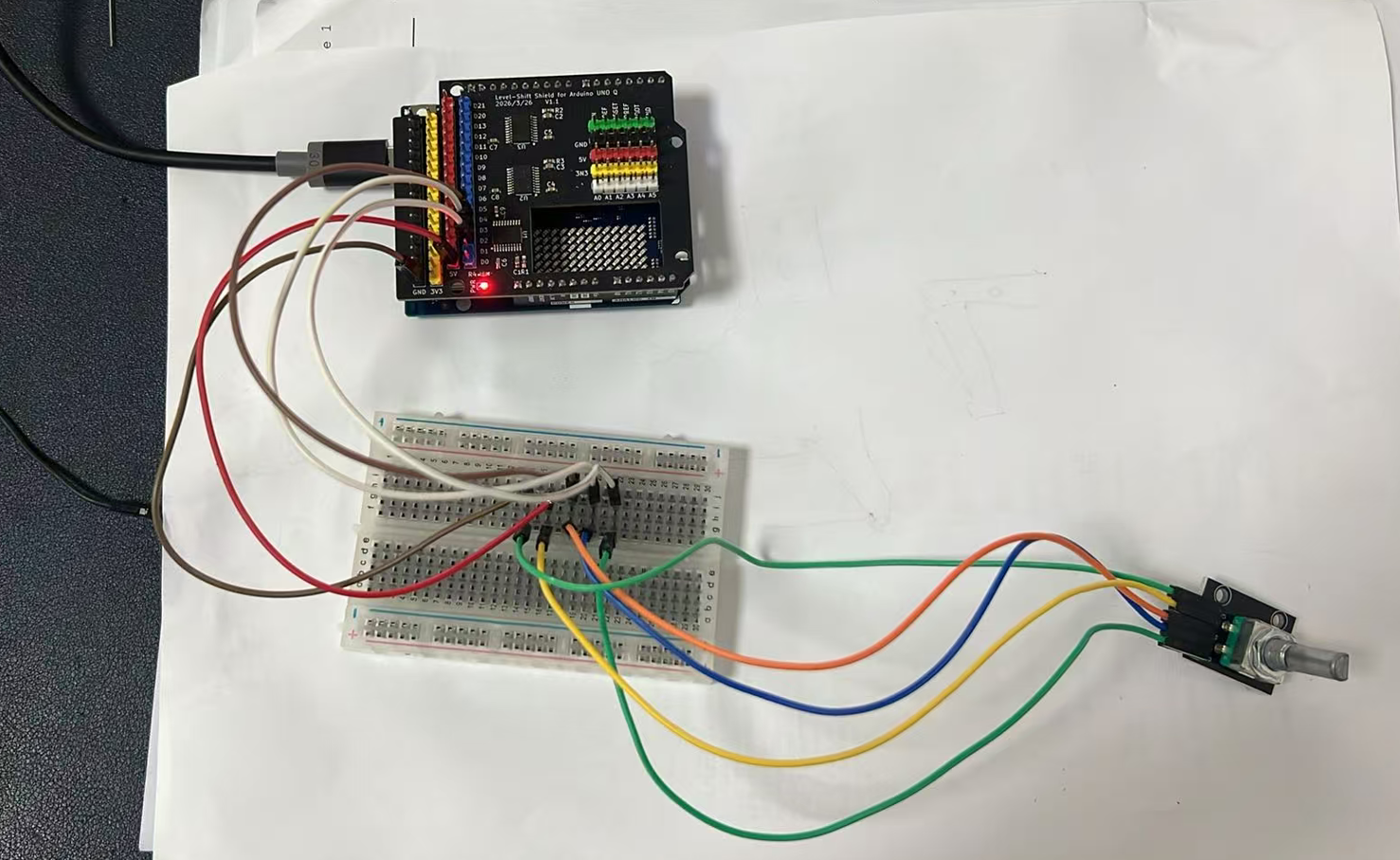

Figure 7-37: Demo 8 Rotary encoder wiring

Code

/*
 * Experiment 8: Rotary Encoder
 * Function: Read rotation direction and count, with button reset
 * Hardware: EP-0257 Shield + Incremental Encoder
 */

#define CLK_PIN 2   // Must connect to pin supporting external interrupt (D2 or D3)
#define DT_PIN  3
#define SW_PIN  4

volatile int counter = 0;
volatile byte lastState = 0;
bool swLastState = HIGH;

void setup() {
  pinMode(CLK_PIN, INPUT);
  pinMode(DT_PIN, INPUT);
  pinMode(SW_PIN, INPUT_PULLUP);

  // Enable external interrupt, trigger on CLK pin change
  attachInterrupt(digitalPinToInterrupt(CLK_PIN), readEncoder, CHANGE);

  Serial.begin(115200);
  Serial.println("Experiment 8: Encoder Test");
  Serial.println("Rotate encoder to observe count changes");
}

void loop() {
  // Button detection (debounced)
  bool swState = digitalRead(SW_PIN);
  if (swState == LOW && swLastState == HIGH) {
    counter = 0;
    Serial.println("Counter reset!");
    delay(200);  // Debounce
  }
  swLastState = swState;

  static int lastCounter = -1;
  if (counter != lastCounter) {
    Serial.print("Count: ");
    Serial.println(counter);
    lastCounter = counter;
  }
}

// Interrupt Service Routine
void readEncoder() {
  byte clkState = digitalRead(CLK_PIN);
  byte dtState = digitalRead(DT_PIN);

  // Determine rotation direction
  if (clkState != lastState) {
    if (dtState != clkState) {
      counter++;  // Clockwise
    } else {
      counter--;  // Counter-clockwise
    }
  }
  lastState = clkState;
}

Demo Result

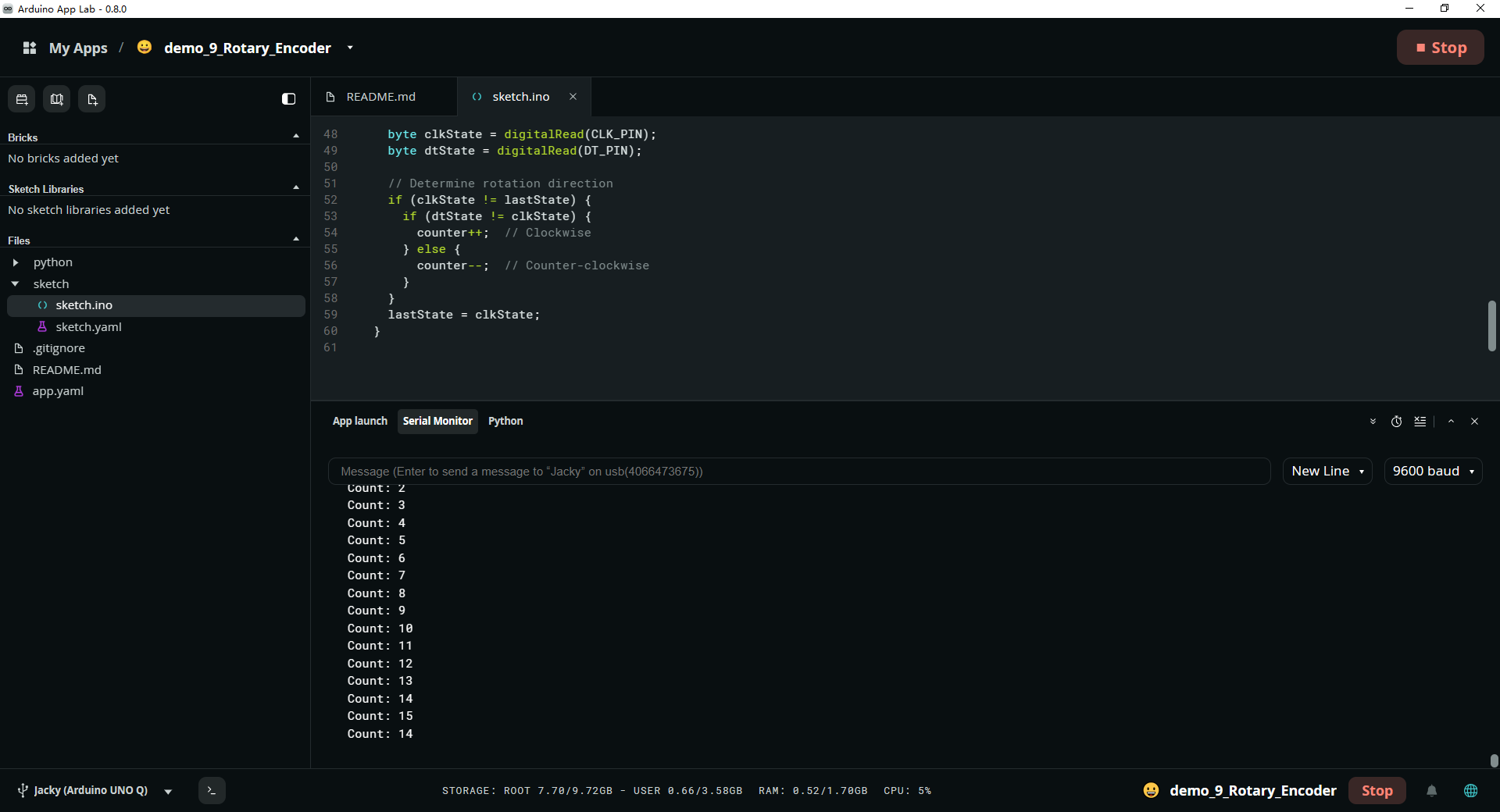

Figure 7-38: Demo 8 Rotary encoder serial monitor output

Figure 7-39: Demo 8 Rotary encoder serial monitor output

Experiment 9: Stepper Motor

Objective

Learn stepper motor control with precise rotation.

Principle

The 28BYJ-48 stepper motor is a 4-phase 5-wire type. The ULN2003 driver board contains Darlington transistor arrays. Step angle 5.625°, gear ratio 1:64, actual step angle ~0.088°.

Wiring Diagram

Figure 7-40: Stepper motor accurate rotation control

Code

/*
 * Experiment 9: Stepper Motor Control
 * Function: Forward, reverse, and stop control
 * Hardware: EP-0257 Shield + 28BYJ-48 + ULN2003
 */

#define IN1 8
#define IN2 9
#define IN3 10
#define IN4 11

// 4-phase 8-step sequence (half-step mode, higher precision)
const int stepSequence[8][4] = {
  {1, 0, 0, 0},
  {1, 1, 0, 0},
  {0, 1, 0, 0},
  {0, 1, 1, 0},
  {0, 0, 1, 0},
  {0, 0, 1, 1},
  {0, 0, 0, 1},
  {1, 0, 0, 1}
};

void setup() {
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  pinMode(IN3, OUTPUT);
  pinMode(IN4, OUTPUT);
  Serial.begin(115200);
  Serial.println("Experiment 9: Stepper Motor");
  Serial.println("Commands: F=Forward, B=Backward, S=Stop");
}

void loop() {
  if (Serial.available()) {
    char cmd = Serial.read();
    if (cmd == 'F' || cmd == 'f') {
      Serial.println("Forward...");
      rotate(4096, true, 2);   // 4096 steps = ~1 rotation, 2ms per step
    }
    else if (cmd == 'B' || cmd == 'b') {
      Serial.println("Backward...");
      rotate(4096, false, 2);
    }
    else if (cmd == 'S' || cmd == 's') {
      stopMotor();
      Serial.println("Stopped");
    }
  }
}

void setStep(int w1, int w2, int w3, int w4) {
  digitalWrite(IN1, w1);
  digitalWrite(IN2, w2);
  digitalWrite(IN3, w3);
  digitalWrite(IN4, w4);
}

void rotate(int steps, bool clockwise, int delayMs) {
  for (int i = 0; i < steps; i++) {
    int idx = clockwise ? (i % 8) : (7 - (i % 8));
    setStep(stepSequence[idx][0], stepSequence[idx][1],
            stepSequence[idx][2], stepSequence[idx][3]);
    delay(delayMs);
  }
  stopMotor();
}

void stopMotor() {
  setStep(0, 0, 0, 0);
}

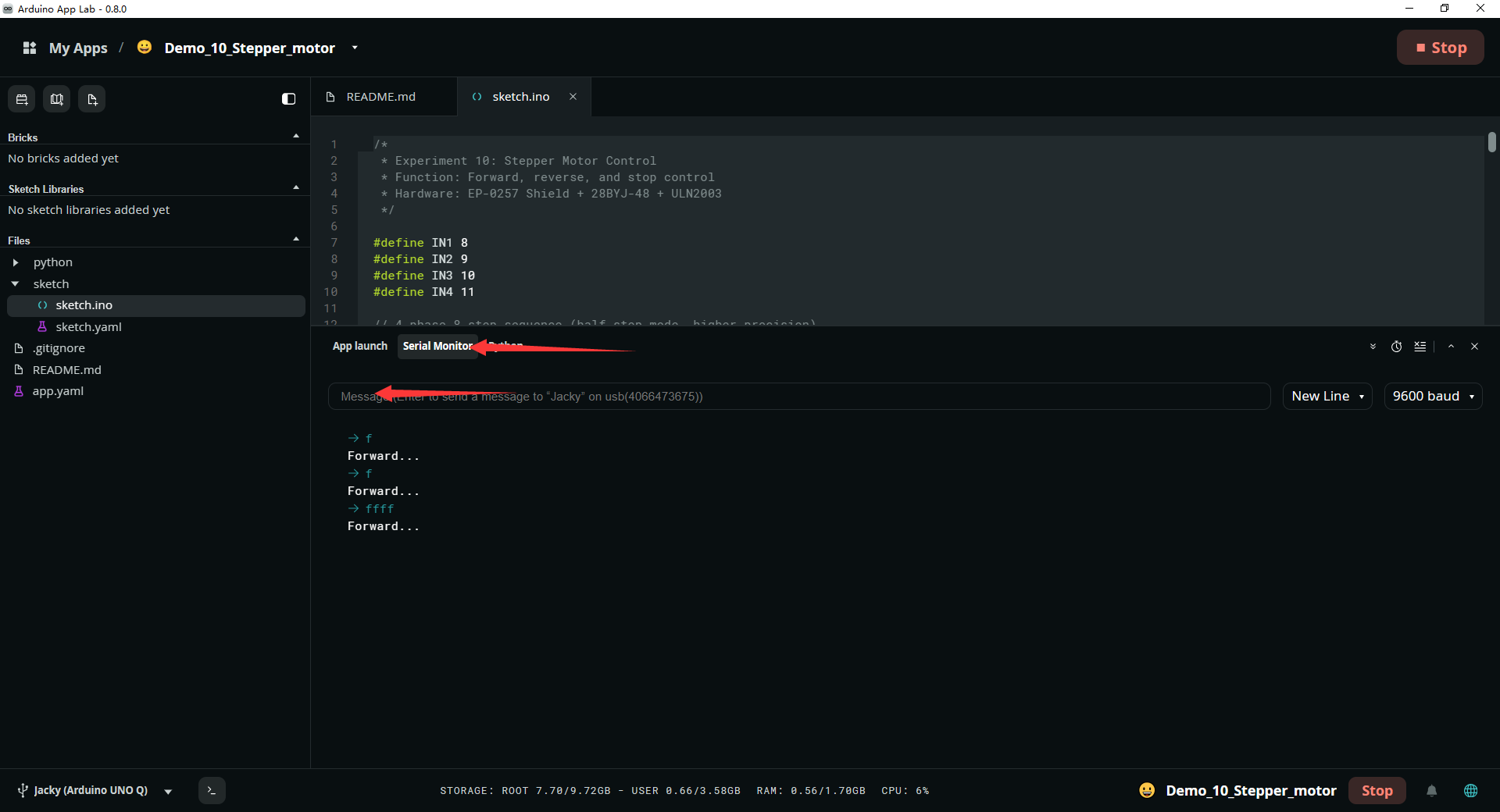

Figure 7-41: Serial monitor input for stepper motor control (F/B/S)

Demo Result

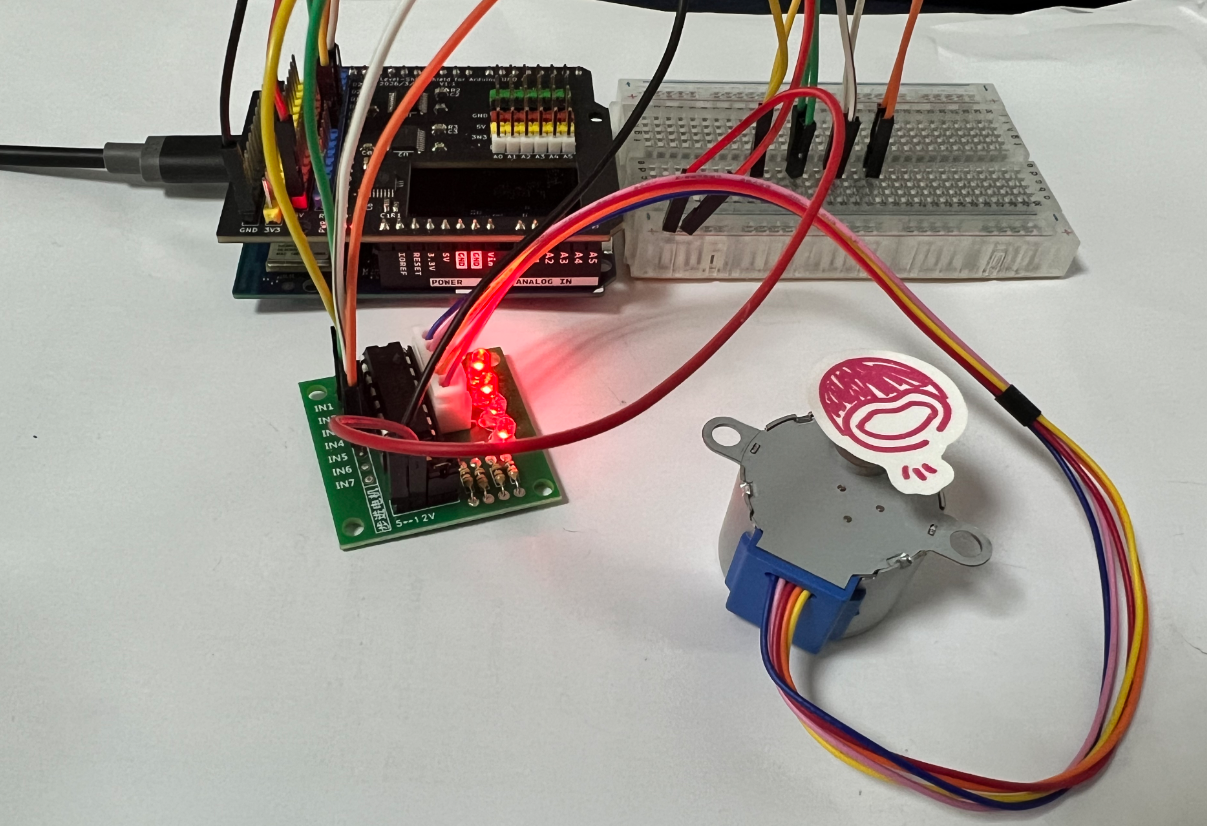

Figure 7-42: Stepper Motor Spinning Around

8. Comprehensive Project

Project: Smart Distance Detection Alarm System

Functional Description

Integrates ultrasonic distance measurement, LCD display, buzzer alarm, and LED matrix indication to implement a complete multi-level distance detection and alarm system.

Figure 8-1: Smart distance detection alarm system — complete setup

System Architecture

• Input: HC-SR04 Ultrasonic Sensor
• Output: LCD1602 displays distance, buzzer provides graded alarm, MAX7219 matrix shows arrow indicators
• Logic: Distance < 10cm = Emergency alarm, 10–30cm = Warning, > 30cm = Safe

Wiring Summary

Required Libraries

• MD_MAX72xx
• Bonezegei LCD1602 I2C

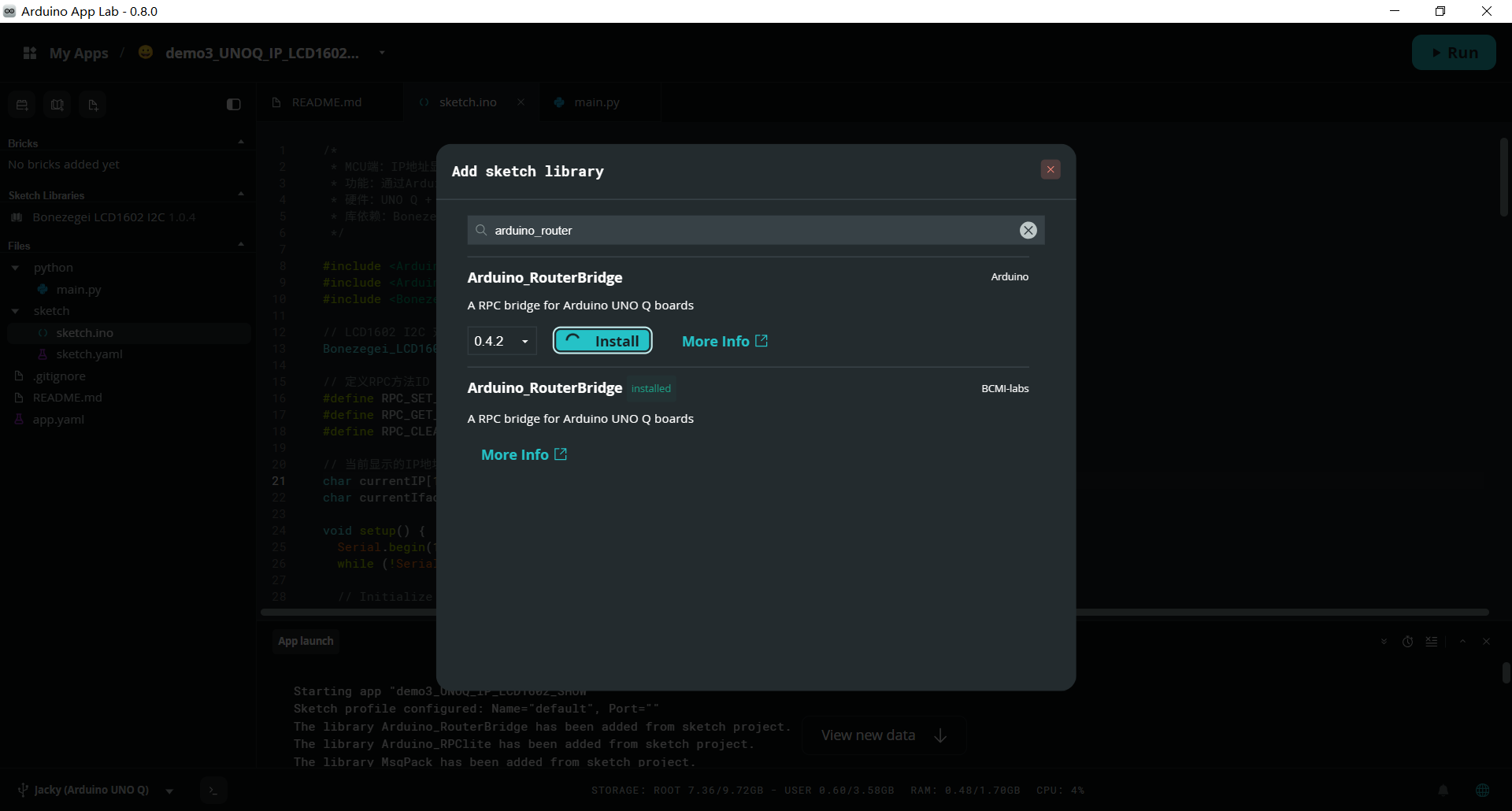

Figure 8-2: Library installation for comprehensive project

Figure 8-3: Library installation for comprehensive project

Code

/*
 * Comprehensive Project: Smart Distance Detection Alarm System
 * Hardware: UNO Q + EP-0257 + HC-SR04 + LCD1602 + MAX7219 + Buzzer
 * Function: Real-time distance measurement, LCD display, buzzer graded alarm, LED matrix direction indication
 */

#include <Wire.h>
#include <Bonezegei_LCD1602_I2C.h>
#include <MD_MAX72xx.h>
#include <SPI.h>

// Pin definitions
#define TRIG_PIN 2
#define ECHO_PIN 3
#define BUZZER_PIN 4
#define CS_PIN 10

// Object initialization
Bonezegei_LCD1602_I2C lcd(0x27);  // Only need I2C address
MD_MAX72XX mx = MD_MAX72XX(MD_MAX72XX::FC16_HW, CS_PIN, 1);

// Alarm thresholds (centimeters)
#define ALERT_CRITICAL 10   // Emergency
#define ALERT_WARNING  30   // Warning

// Arrow patterns (8x8)
const uint8_t arrowUp[8] = {
  0b00011000, 0b00111100, 0b01111110, 0b00011000,
  0b00011000, 0b00011000, 0b00011000, 0b00000000
};

const uint8_t arrowDown[8] = {
  0b00011000, 0b00011000, 0b00011000, 0b00011000,
  0b01111110, 0b00111100, 0b00011000, 0b00000000
};

const uint8_t alertIcon[8] = {
  0b00011000, 0b00111100, 0b01111110, 0b01111110,
  0b01111110, 0b00111100, 0b00011000, 0b00000000
};

void setup() {
  // Initialize pins
  pinMode(TRIG_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);
  pinMode(BUZZER_PIN, OUTPUT);

  // Initialize LCD
  lcd.begin();
  lcd.setPosition(0, 0);
  lcd.print("Distance System");
  delay(1000);

  // Initialize MAX7219
  mx.begin();
  mx.control(MD_MAX72XX::INTENSITY, 8);

  Serial.begin(115200);
  Serial.println("System startup...");
}

void loop() {
  long distance = measureDistance();

  // LCD display
  lcd.clear();
  lcd.setPosition(0, 0);
  lcd.print("Dist: ");
  if (distance < 0) {
    lcd.print("Error");
  } else {
    char buf[16];
    sprintf(buf, "%ld cm", distance);
    lcd.print(buf);
  }

  // Status judgment and response
  if (distance < 0) {
    lcd.setPosition(0, 1);
    lcd.print("Sensor Error");
    displayPattern(alertIcon);
    beep(100, 100, 3);  // Rapid error indication
  }
  else if (distance < ALERT_CRITICAL) {
    // Critical state
    lcd.setPosition(0, 1);
    lcd.print("!! CRITICAL !!");
    displayPattern(alertIcon);
    beep(200, 100, 5);  // Rapid urgent alarm
  }
  else if (distance < ALERT_WARNING) {
    // Warning state
    lcd.setPosition(0, 1);
    lcd.print("! WARNING !");
    displayPattern(arrowUp);
    beep(500, 500, 2);  // Slow warning
  }
  else {
    // Safe state
    lcd.setPosition(0, 1);
    lcd.print("Safe Zone");
    displayPattern(arrowDown);
    noTone(BUZZER_PIN);
    digitalWrite(BUZZER_PIN, LOW);
  }

  Serial.print("Distance: "); Serial.print(distance);
  Serial.println(" cm");
  delay(300);
}

// Distance measurement function
long measureDistance() {
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  long duration = pulseIn(ECHO_PIN, HIGH, 30000);
  if (duration == 0) return -1;

  long dist = duration * 0.017;
  return (dist > 400) ? -2 : dist;
}

// Matrix display
void displayPattern(const uint8_t *pattern) {
  for (uint8_t row = 0; row < 8; row++) {
    mx.setRow(0, row, pattern[row]);
  }
}

// Buzzer control (active buzzer version)
void beep(int onTime, int offTime, int count) {
  for (int i = 0; i < count; i++) {
    digitalWrite(BUZZER_PIN, HIGH);
    delay(onTime);
    digitalWrite(BUZZER_PIN, LOW);
    if (i < count - 1) delay(offTime);
  }
}

Expected Results

Figure 8-4: Safe zone — Distance: 42 cm, "Safe Zone" displayed

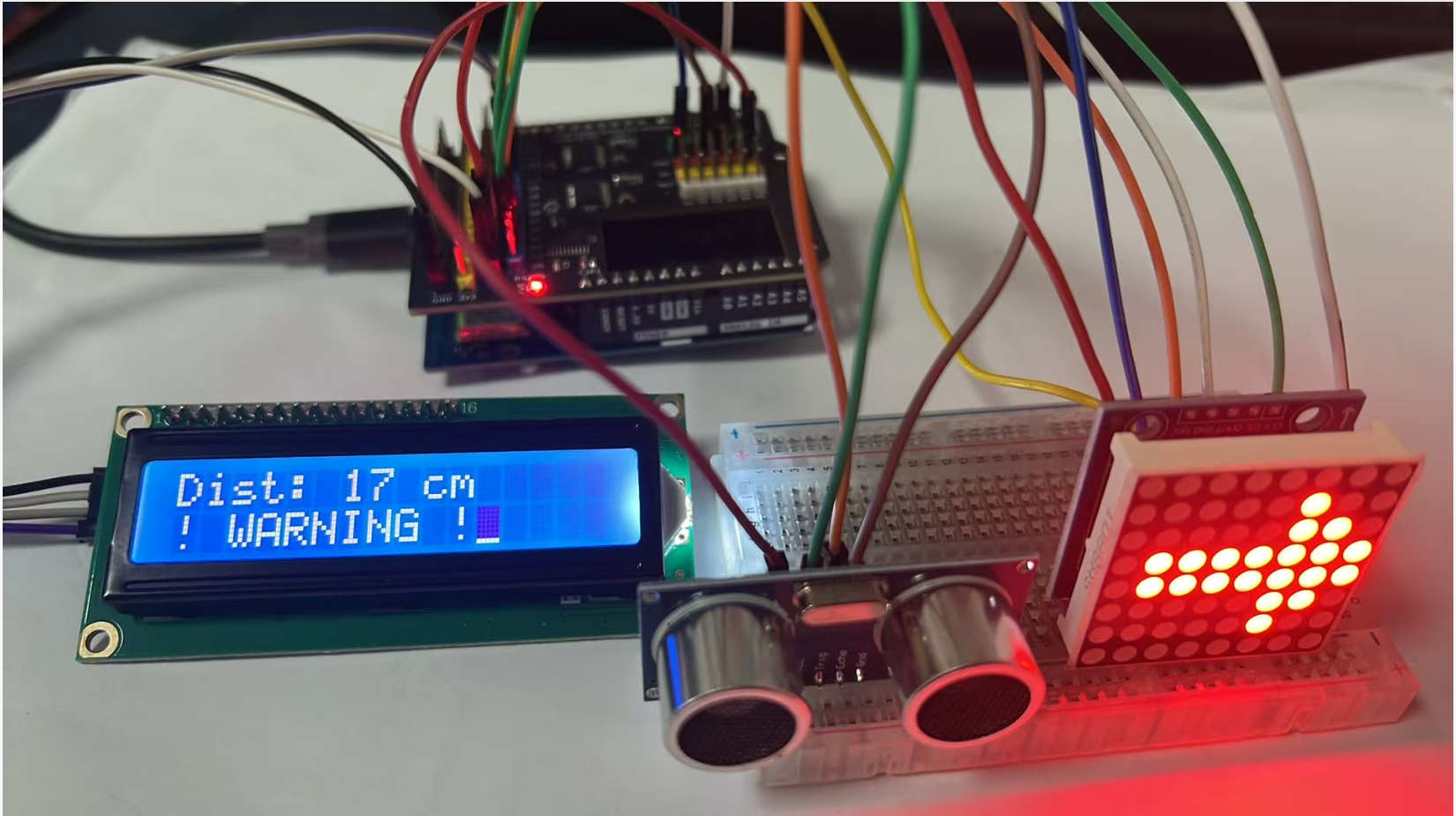

Figure 8-5: Warning zone — LED matrix shows arrow up, buzzer warning

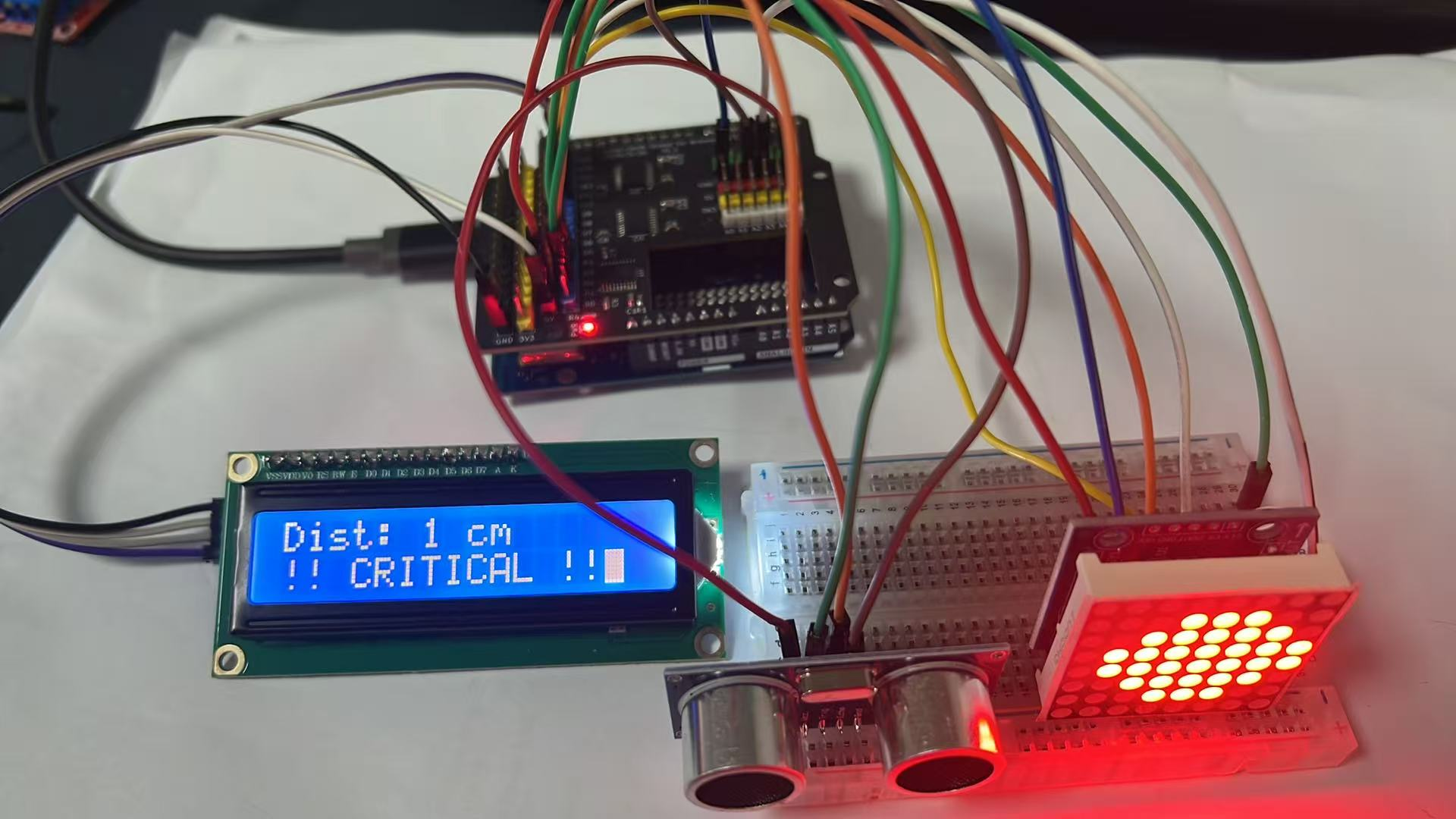

Figure 8-6: Critical zone — LED matrix shows alert icon, rapid buzzer alarm

9. Troubleshooting

9.1 Common Issues

9.2 Design Guidelines

1. Current Budget: UNO Q USB power total ~500mA, 3.3V regulator output ~150mA. High-power devices (servo, relay, motor) must use external power.

2. Common Ground Principle: External power supply and UNO Q must share ground (GND connected), otherwise signal reference level drifts causing malfunction.

3. Green Pin Taboo: VIN, AREF, IOREF, BOOT are pass-through pins, never connect 5V signals.

4. Analog Input Voltage Division: When A0–A5 are used as analog inputs, input voltage must not exceed 3.3V. Voltage divider required when using 5V sensors.

5. Hot-swap Risk: Inserting/removing Dupont lines while powered may cause surges; always power off before operation.

10. Appendix

A.1 Quick Reference Card

Pin Function Quick Lookup

Library Dependency List

A.2 Demo File Reference

The following demo files are available for quick reference:

Figure A-1: Demo file list reference

A.3 Compatible Hardware

• Main Board: Arduino UNO Q (ABX00162 / ABX00173)
• Shield: 52Pi EP-0257 Level-Shift Shield
• MCU: STM32U585 Cortex-M33 @ 160MHz
• Logic Level: 3.3V (with 5V level-shifting via EP-0257)

A.4 Technical Specifications

11.Download Demo Codes Zip Files

Click to download the zip file for the demo codes.

• Demo 1
• Demo 2
• Demo 3
• Demo 4
• Demo 5
• Demo 6
• Demo 7
• Demo 8
• Demo 9
• Demo10

Compatible Hardware: Arduino UNO Q (ABX00162/ABX00173) + 52Pi EP-0257 Level-Shift Shield

Last Updated: 2026-06-24

Document Version: 1.0
