Ultimate Starter Kit for Raspberry Pi Pico 2 WH

Product Information

• Product Name: Ultimate Starter Kit for Raspberry Pi Pico 2 WH

• Product SKU: KZ-0084

Product Description

Congratulations on purchasing the 52Pi Raspberry Pi Pico 2W Ultimate Starter Kit! This comprehensive kit is designed for beginners, educators, and hobbyists who want to explore the world of electronics and programming with the powerful Raspberry Pi Pico 2W microcontroller.

Kit Components

Our Ultimate Starter Kit includes a variety of sensors and components to help you learn and experiment:

Features

• Comprehensive Learning Tool: Provides hands-on experience with different types of sensors and electronic components
• Easy to Use: Clear documentation and straightforward connections make it accessible for beginners
• Versatile Projects: Create a wide range of projects from simple LED blinking to complex environmental monitoring systems
• Educational Resource: Perfect for schools, makerspaces, and self-learners
• Well-organized Components: All parts are carefully selected and tested for compatibility with Raspberry Pi Pico 2W

Getting Started

1. Connect Components: Use the included DuPont wires to connect sensors to the breadboard and then to your Raspberry Pi Pico 2W
2. Upload Code: Use Thonny or another MicroPython-compatible IDE to upload example code to your Pico
3. Experiment and Learn: Modify the code and connections to explore different functionalities

Who Should Use This Kit

• Beginners: Those new to electronics and programming who want to learn through hands-on experimentation
• Educators: Teachers looking for engaging STEM teaching tools
• Hobbyists: DIY enthusiasts interested in creating interactive projects
• Makers: Creators developing prototypes for innovative IoT devices

Additional Resources

For detailed tutorials, wiring diagrams, technical explanations, and MicroPython demo codes for each component, please visit our official documentation website: 52Pi Docs

Our website also offers video demonstrations to guide you through each experiment step-by-step.

Pinout

Getting Start

• Install Programming IDE
• Download the latest MicroPython Firmware
• Put Your Pico 2 WH into Bootloader Mode
• Flash the MicroPython Firmware
• Configure Thonny IDE to Work with Pico 2 WH
• Testing Your Setup

Demo Projects

• Experiment 1: Blinking a LED
• Experiment 2: Reading a Flame Sensor
• Experiment 3: Measuring Soil Moisture
• Experiment 4: Controlling a Servo Motor
• Experiment 5: Measuring Distance with an Ultrasonic Sensor
• Experiment 6: Detecting Light Intensity with a Light Sensor
• Experiment 7: Control the duration of led by using HW-233 slid pot
• Experiment 8: Detecting Sound with a Sound Sensor
• Experiment 9: Controlling a Buzzer
• Experiment 10: Using a Rotary Encoder
• Experiment 11: 1.3inch IPS_LCD display
• Experiment 12: 1.3inch IPS_LCD display imagebox

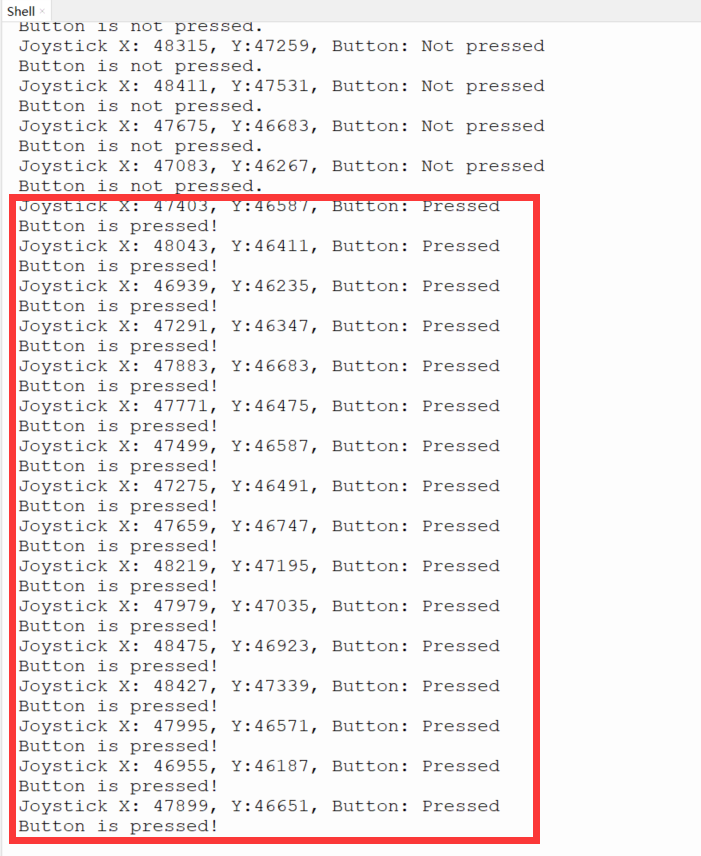

• Experiment 13: Using PS2 Joystick

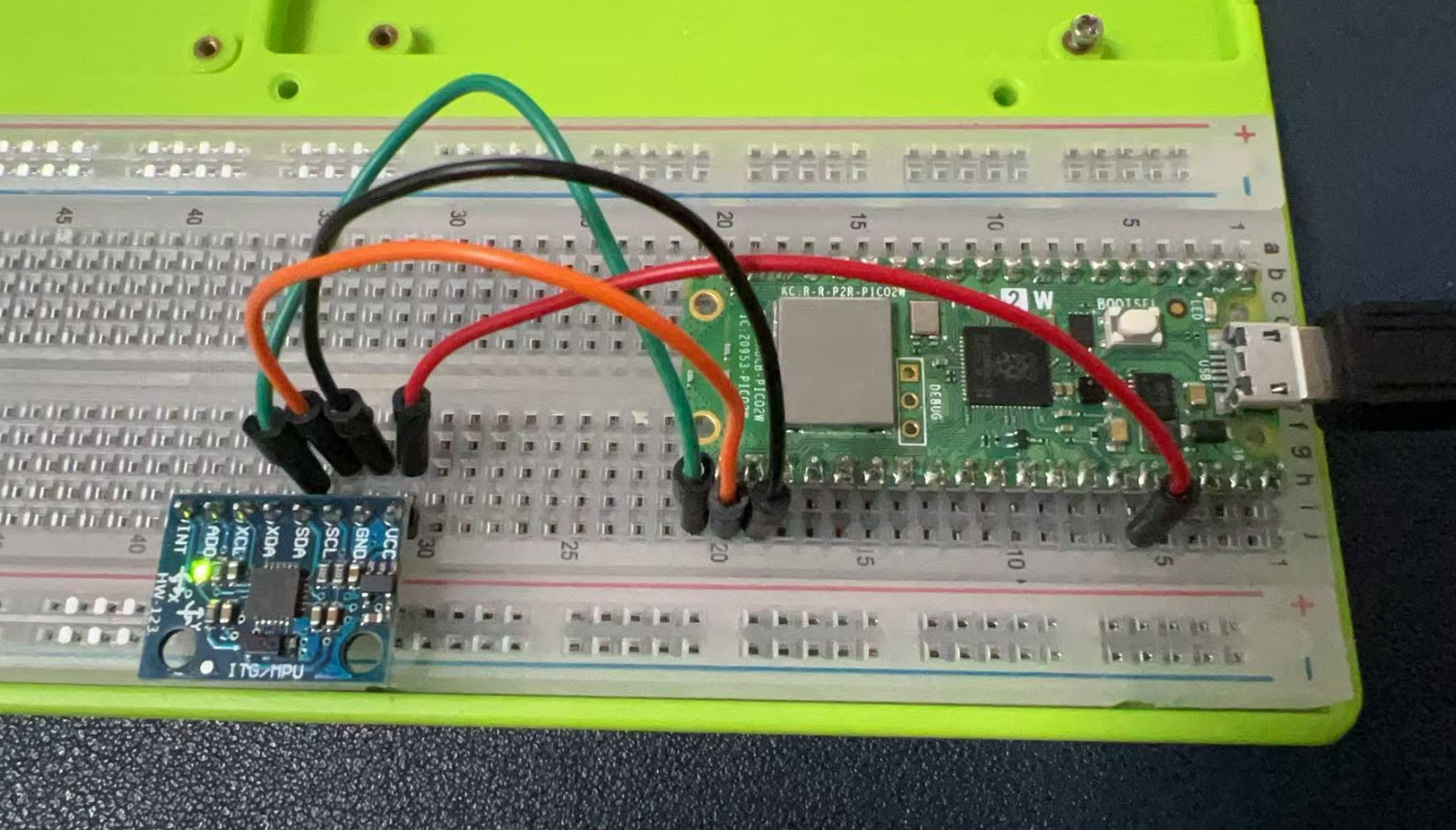

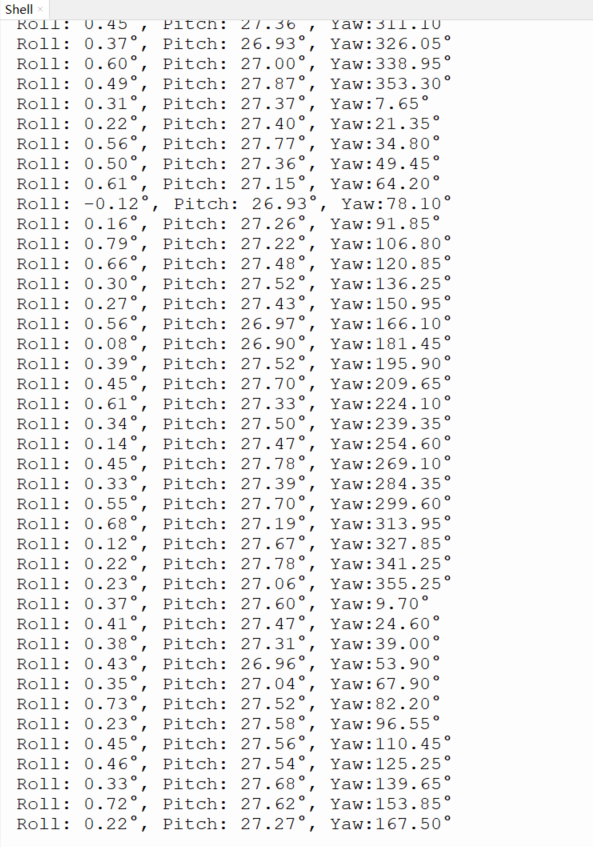

• Experiment 14: MPU6050 Gyroscope and Accelerometer Module
• Experiment 15: Raindrop Module

Experiment 1: Blinking a LED

Application Scenario

Create a simple LED blinker to signal an event, such as a heartbeat monitor or a warning indicator.

Working Principle

The LED is connected to one of the GPIO pins of the Pico 2 WH. By toggling the pin's voltage between HIGH and LOW, the LED will turn on and off.

Circuit Wiring

1. Connect the longer leg (anode) of the LED to GPIO pin 15.
2. Connect the shorter leg (cathode) of the LED to a 220Ω resistor.
3. Connect the other end of the resistor to the GND pin on the Pico 2 WH.

MicroPython Demo Code

from machine import Pin
import time

# Define the GPIO pin connected to the LED
led = Pin(15, Pin.OUT)

while True:
    led.value(1)  # Turn on the LED
    time.sleep(1)  # Wait for 1 second
    led.value(0)  # Turn off the LED
    time.sleep(1)  # Wait for 1 second

Code Explanation

• Pin(15, Pin.OUT): Initializes GPIO pin 15 as an output pin.
• led.value(1): Sets the pin to HIGH, turning on the LED.
• time.sleep(1): Pauses the program for 1 second.
• led.value(0): Sets the pin to LOW, turning off the LED.

Experiment 2: Reading a Flame Sensor

Application Scenario

Detect the presence of fire or flame in a room for a safety monitoring system.

Working Principle

The flame sensor detects infrared light emitted by flames and outputs a digital signal (HIGH or LOW) based on the presence of fire.

Circuit Wiring

• Connect the VCC pin of the flame sensor to the 3.3V pin on the Pico 2 WH.
• Connect the GND pin of the flame sensor to the GND pin on the Pico 2 WH.
• Connect the OUT pin of the flame sensor to GPIO pin 14 on the Pico 2 WH.

MicroPython Demo Code

from machine import Pin
import time

# Define the GPIO pin connected to the flame sensor
flame_sensor = Pin(14, Pin.IN)

while True:
    if flame_sensor.value() == 1:
        print("Flame detected!")
    else:
        print("No flame detected.")
    time.sleep(0.5)

Code Explanation

• Pin(14, Pin.IN): Initializes GPIO pin 14 as an input pin.
• flame_sensor.value(): Reads the digital value from the flame sensor (1 for flame detected, 0 for no flame).
• print(): Outputs the result to the console.

NOTE: Please note that when using a lighter, be sure to prevent fires. If minors are to use it, they must be accompanied by an adult.

The detection accuracy and trigger level of the sensor can be adjusted using screws. By using a screwdriver to adjust the potentiometer, turn it until the trigger LED turns off. At this point, the sensitivity has been properly adjusted. You just need to turn on the lighter, and the LED will light up.

Experiment 3: Measuring Soil Moisture

Application Scenario

Monitor the moisture level of a plant's soil to automate watering.

Working Principle

The soil moisture sensor measures the conductivity of the soil. Higher conductivity indicates more moisture.

Circuit Wiring

• Connect the VCC pin of the soil moisture sensor to the 3.3V pin on the Pico 2 WH.
• Connect the GND pin of the sensor to the GND pin on the Pico 2 WH.
• Connect the OUT pin of the sensor to GPIO pin 13 on the Pico 2 WH.

MicroPython Demo Code

from machine import Pin
import time

# Define the GPIO pin connected to the soil moisture sensor
soil_sensor = Pin(13, Pin.IN)

while True:
    if soil_sensor.value() == 1:
        print("Soil is dry.")
    else:
        print("Soil is moist.")
    time.sleep(1)

Code Explanation

• Pin(13, Pin.IN): Initializes GPIO pin 13 as an input pin.
• soil_sensor.value(): Reads the digital value from the soil moisture sensor (1 for dry soil, 0 for moist soil).
• print(): Outputs the moisture status to the console.

Test it with wet paper:

Monit the shell outputs:

Experiment 4: Controlling a Servo Motor

Application Scenario

Control a robotic arm or a small mechanical device using the servo motor.

Working Principle

The servo motor is controlled by a PWM (Pulse Width Modulation) signal. The position of the servo is determined by the duration of the pulse.

Circuit Wiring

• Connect the VCC pin of the servo to the 5V(VBUS) pin on the Pico 2 WH.
• Connect the GND pin of the servo to the GND pin on the Pico 2 WH.
• Connect the signal pin of the servo to GPIO pin 12 on the Pico 2 WH.

MicroPython Demo Code

• Step 1. Create a folder in /lib folder and named it servo on your raspberry Pi pico 2w.

• Step 2. Create a new file in /lib/servo/ and named it __init__.py, and copy following code and paste it into the file.

Code content:

import machine
import math

class Servo:
    def __init__(self,pin_id,min_us=544.0,max_us=2400.0,min_deg=0.0,max_deg=180.0,freq=50):
        self.pwm = machine.PWM(machine.Pin(pin_id))
        self.pwm.freq(freq)
        self.current_us = 0.0
        self._slope = (min_us-max_us)/(math.radians(min_deg)-math.radians(max_deg))
        self._offset = min_us

    def write(self,deg):
        self.write_rad(math.radians(deg))

    def read(self):
        return math.degrees(self.read_rad())

    def write_rad(self,rad):
        self.write_us(rad*self._slope+self._offset)

    def read_rad(self):
        return (self.current_us-self._offset)/self._slope

    def write_us(self,us):
        self.current_us=us
        self.pwm.duty_ns(int(self.current_us*1000.0))

    def read_us(self):
        return self.current_us

    def off(self):
        self.pwm.duty_ns(0)

• Step 3. Create a new file in /lib/servo/ and named it __main__.py and keep it empty as following figure:

Demo Code

import time
from servo import Servo

my_servo = Servo(pin_id=12)
while True:
    my_servo.write(30)
    time.sleep(2)
    my_servo.write(60)
    time.sleep(2)
    my_servo.write(30)
    time.sleep(2)
    my_servo.write(180)
    time.sleep(2)

Code Explanation

• Servo(Pin_id=12): Initializes GPIO pin 12 as a Servo.
• my_servo.write(30): Sets the angle to control the servo position (30 for 30°, 90 for 90°, 180 for 180°).
• time.sleep(2): Pauses the program for 2 second.

Experiment 5: Measuring Distance with an Ultrasonic Sensor

Application Scenario

Measure the distance to an object for applications like obstacle detection in robotics.

Working Principle

The ultrasonic sensor emits a sound wave and measures the time it takes for the echo to return. The distance is calculated using the speed of sound.

Circuit Wiring

• Connect the VCC pin of the ultrasonic sensor to the 5V(VBUS) pin on the Pico 2 WH.
• Connect the GND pin of the sensor to the GND pin on the Pico 2 WH.
• Connect the TRIG pin of the sensor to GPIO pin 11 on the Pico 2 WH.
• Connect the ECHO pin of the sensor to GPIO pin 10 on the Pico 2 WH.

MicroPython Demo Code

from machine import Pin, time_pulse_us
import time

# Define GPIO pins connected to the ultrasonic sensor
trig = Pin(11, Pin.OUT)
echo = Pin(10, Pin.IN)

while True:
    trig.value(0)
    time.sleep_us(2)
    trig.value(1)
    time.sleep_us(10)
    trig.value(0)

    pulse_time = time_pulse_us(echo, 1)
    distance = pulse_time * 0.034 / 2  # Speed of sound = 340 m/s
    print(f"Distance: {distance:.2f} cm")
    time.sleep(1)

Code Explanation

• trig.value(1): Sends a short pulse to the TRIG pin to start the measurement.
• time_pulse_us(echo, 1): Measures the duration of the ECHO pulse in microseconds.
• distance = pulse_time * 0.034 / 2: Calculates the distance in centimeters.
• print(): Outputs the distance to the console.

Experiment 6: Detecting Light Intensity with a Light Sensor

Application Scenario

Create an automatic lighting system that turns on when the ambient light is too low.

Working Principle

The light sensor detects the intensity of ambient light and outputs a digital level 0 or 1.

Circuit Wiring

1. Connect the VCC pin of the light sensor to the 3.3V pin on the Pico 2 WH.
2. Connect the GND pin of the sensor to the GND pin on the Pico 2 WH.
3. Connect the OUT pin of the sensor to GPIO pin 16 on the Pico 2 WH.

MicroPython Demo Code

from machine import Pin
import time

# Define the pin connected to the light sensor
light_sensor = Pin(16, Pin.IN)

while True:
    if light_sensor.value() == 1:
        print("No light detect...")
    else:
        print("Light detected...")
    time.sleep(1)

Code Explanation

• Pin(16, Pin.OUT): Initializes GPIO pin 16 as an digital input.
• 1: Light detected, 0: no light detected.
• print(): Outputs the light level to the console.

when you cover the light sensor, the output will change, think about which scenario can use this module?

Experiment 7: Control the duration of led by using HW-233 slid pot

Application Scenario

Control the interval time of led by using slid pot HW-233, read analog data from slid pot and then map the data to 0 to 60 seconds for the LED blink duration.

Working Principle

This experiment aims to control the blinking interval of an LED using the HW-233 slide potentiometer. The working principle of the experiment is as follows:

1. Potentiometer Reading: The HW-233 slide potentiometer is an analog input device whose output voltage is proportional to the position of the slider. As the slider moves along the potentiometer, it changes the resistance between the two ends, thus altering the output voltage.

2. Analog Signal Conversion: In the experiment, a microcontroller (such as an Arduino) will read the analog output of the potentiometer. This analog signal needs to be converted into a digital signal so that the microcontroller can process it. This is typically done through an Analog-to-Digital Converter (ADC).

3. Data Mapping: The analog data read will be mapped to a specific time range, i.e., 0.1 to 1 seconds. The mapping process involves converting the value of the analog signal into the corresponding time interval. This can be achieved by writing a specific algorithm or using a lookup table.

4. LED Control: Once the analog data is mapped to the time interval, the microcontroller will use this time interval to control the blinking of the LED. Specifically, the microcontroller will set a timer, and when the timer reaches the set time interval, it will toggle the state of the LED (from on to off or from off to on).

5. Feedback Loop: This process is cyclical, with the microcontroller continuously reading the value of the potentiometer and updating the LED's blinking interval based on the new value. In this way, users can adjust the blinking speed of the LED in real-time by moving the slider of the potentiometer.

Through this method, the experiment demonstrates how to use a simple analog input device to control the behavior of a digital output device, which is a fundamental concept in electronics and embedded system design.

Circuit Wiring

Components Required:

1. Raspberry Pi Pico
2. LED Light
3. 220-ohm Resistor
4. Slide Potentiometer (with terminals labeled OTA, OTB, VCC, and GND)

Wiring Instructions:

1. LED Connection:
2. Connect the longer leg (anode) of the LED to one of the GPIO pins on the Raspberry Pi Pico (e.g., GPIO 15).
3. Connect the shorter leg (cathode) of the LED to one end of the 220-ohm resistor.

4. Connect the other end of the 220-ohm resistor to a GND pin on the Raspberry Pi Pico.

5. Slide Potentiometer Connection:

6. Connect the VCC terminal of the slide potentiometer to a 3.3V pin on the Raspberry Pi Pico.
7. Connect the GND terminal of the slide potentiometer to a GND pin on the Raspberry Pi Pico.
8. Connect the OTA terminal of the slide potentiometer to an analog input pin on the Raspberry Pi Pico (e.g., GPIO 26).This pin will be used to read the analog value from the potentiometer.
9. The OTB terminal of the slide potentiometer is typically not used in this setup and can be left unconnected.

Details:

Circuit Overview:

• The LED is connected in series with a resistor to limit the current flowing through it, protecting it from burning out.
• The slide potentiometer is used to vary the resistance, which in turn varies the voltage at the OTA terminal. This analog voltage is read by the Raspberry Pi Pico to determine the LED's blinking interval.

Final Setup:

• Once all components are connected and the program is uploaded to the Raspberry Pi Pico, you should be able to adjust the blinking interval of the LED by moving the slider on the potentiometer.

This setup allows you to control the LED's blinking duration dynamically using the slide potentiometer, demonstrating a practical application of analog input in a microcontroller-based project.

MicroPython Demo Code

Demo code

from machine import Pin, ADC
import time


#init pins
led = Pin(15, Pin.OUT)

# set slid pot pin
slid_pot = ADC(26)

# Define minmum blink time and max blink time
MIN_BLINK_TIME = 0.1 # 100ms
MAX_BLINK_TIME = 1 # max interval 1 secounds


def map_value(value, from_min, from_max, to_min, to_max):
    """map the value from an range to another range"""
    return (value - from_min) / (from_max - from_min) * (to_max - to_min) + to_min


def read_potentiometer():
    """read data from the slid pot"""
    value = slid_pot.read_u16()
    print(value)
    # adc reading range from 0-65535 map to 0-60s
    mapped_time = map_value(value, 0, 65535, MIN_BLINK_TIME, MAX_BLINK_TIME)
    return mapped_time


def blink_led(blink_time):
    """control the led blinking via by sending the blink_time"""
    led.value(1)
    time.sleep(blink_time)
    led.value(0)
    time.sleep(blink_time)


# main loop
while True:
    blink_time = read_potentiometer()
    print(blink_time)
    blink_led(blink_time)

Code Explanation

• ADC(26): Initializes GPIO pin 26 as an ADC input.
• adc.read_u16(): Reads the raw 16-bit ADC value.
• map_value: Mapping the reading data of slid pot from range 0-65535 to 0.1 to 1 seconds
• print(): Outputs the temperature to the console.

Demo video

Experiment 8: Detecting Sound with a Sound Sensor

Application Scenario

Create a noise detector to trigger an alarm when a loud sound is detected.

Working Principle

The sound sensor detects sound pressure levels and outputs a digital signal when the sound exceeds a certain threshold.

Circuit Wiring

1. Connect the VCC pin of the sound sensor to the 3.3V pin on the Pico 2 WH.
2. Connect the GND pin of the sensor to the GND pin on the Pico 2 WH.
3. Connect the OUT pin of the sensor to GPIO pin 1 on the Pico 2 WH.

MicroPython Demo Code

from machine import Pin
import time

# Define the GPIO pin connected to the sound sensor
sound_sensor = Pin(1, Pin.IN)

while True:
    if sound_sensor.value() == 1:
        print("Loud sound detected!")
    else:
        print("No sound detected.")
    time.sleep(0.5)

Code Explanation

• Pin(16, Pin.IN): Initializes GPIO pin 16 as an input pin.
• sound_sensor.value(): Reads the digital value from the sound sensor (1 for loud sound, 0 for no sound).
• print(): Outputs the sound detection status to the console.

Experiment 9: Controlling a Buzzer

Application Scenario

Create an alarm system that buzzes when a specific condition is met (e.g., motion detected).

Working Principle

The buzzer generates sound by vibrating a diaphragm. It can be controlled by toggling the GPIO pin's voltage.

Circuit Wiring

1. Connect the positive pin of the buzzer to GPIO pin VBUS (5V) on the Pico 2 WH.
2. Connect the negative pin of the buzzer to the 17 pin on the Pico 2 WH.

MicroPython Demo Code

from machine import Pin
import time

# Define the GPIO pin connected to the buzzer
buzzer = Pin(17, Pin.OUT)

while True:
    buzzer.value(1)  # Turn on the buzzer
    time.sleep(0.5)  # Buzz for 0.5 seconds
    buzzer.value(0)  # Turn off the buzzer
    time.sleep(1)  # Wait for 1 second

Code Explanation

• Pin(17, Pin.OUT): Initializes GPIO pin 17 as an output pin.
• buzzer.value(1): Sets the pin to HIGH, turning on the buzzer.
• time.sleep(0.5): Pauses the program for 0.5 seconds.
• buzzer.value(0): Sets the pin to LOW, turning off the buzzer.

Experiment 10: Using a Rotary Encoder

Application Scenario

Create a volume control or menu navigation system using the rotary encoder.

Working Principle

The rotary encoder converts mechanical rotation into digital pulses. It outputs two signals (A and B) that can be used to determine rotation direction and speed.

Circuit Wiring

1. Connect the VCC(+) pin of the rotary encoder to the 5V(VBUS) pin on the Pico 2 WH.
2. Connect the GND pin of the encoder to the GND pin on the Pico 2 WH.
3. Connect the CLK pin to GPIO pin 14.
4. Connect the DT pin to GPIO pin 13.
5. Connect the SW pin to GPIO pin 12.

MicroPython Demo Code

from machine import Pin
import time

# init pins
clk = Pin(14, Pin.IN, Pin.PULL_UP)  # CLK pin
dt = Pin(13, Pin.IN, Pin.PULL_UP)   # DT pin
sw = Pin(12, Pin.IN, Pin.PULL_UP)   # button pin

# init variables
encoder_pos = 0
last_clk_state = clk.value()

# handle encoder
def handle_encoder(pin):
    global encoder_pos, last_clk_state
    current_clk_state = clk.value()
    if current_clk_state != last_clk_state:
        if dt.value() != current_clk_state:
            encoder_pos += 1
        else:
            encoder_pos -= 1
        last_clk_state = current_clk_state

# register interrupt
clk.irq(trigger=Pin.IRQ_RISING | Pin.IRQ_FALLING, handler=handle_encoder)

# main loop.
while True:
    print("Encoder Position:", encoder_pos)
    time.sleep(0.1)

Code Explanation

from machine import Pin
import time

# init pins
clk = Pin(14, Pin.IN, Pin.PULL_UP)  # CLK pin
dt = Pin(13, Pin.IN, Pin.PULL_UP)   # DT pin
sw = Pin(12, Pin.IN, Pin.PULL_UP)   # button pin

# init variables
encoder_pos = 0
last_clk_state = clk.value()

# handle encoder
def handle_encoder(pin):
    global encoder_pos, last_clk_state
    current_clk_state = clk.value()
    if current_clk_state != last_clk_state:
        if dt.value() != current_clk_state:
            encoder_pos += 1
        else:
            encoder_pos -= 1
        last_clk_state = current_clk_state

# register interrupt
clk.irq(trigger=Pin.IRQ_RISING | Pin.IRQ_FALLING, handler=handle_encoder)

# main loop.
while True:
    print("Encoder Position:", encoder_pos)
    time.sleep(0.1)

Summary

This code sets up a rotary encoder connected to the Raspberry Pi Pico. It uses GPIO pins to read the encoder's clock (CLK) and direction (DT) signals. The handle_encoder function is called whenever the CLK signal changes, and it updates the encoder_pos variable based on the direction of rotation. The main loop continuously prints the current position of the encoder to the console.

Result:

Experiment 11: 1.3inch IPS_LCD display

Application Scenario

The project aims to remotely send images from a computer to a Raspberry Pi Pico 2W microcontroller, which is connected to a network and equipped with a 1.3-inch IPS LCD screen. The goal is to display these images on the small screen using a Python script.

Components Involved

• Raspberry Pi Pico 2W: A microcontroller board with Wi-Fi capabilities.
• 1.3-inch IPS LCD Screen: A small display screen connected to the Pico 2W.
• Python Script: A program running on a computer that sends images over the network.
• MicroPython Firmware: The software running on the Raspberry Pi Pico 2W to handle network communication and display images.

Work Principle

3.1 Image Preparation

• Images are stored in a directory on a computer.
• These images are encoded in a format suitable for transmission over a network (e.g., JPEG, PNG).

3.2 Network Communication

1. Computer Side:
2. The Python script running on the computer establishes a network connection to the Raspberry Pi Pico 2W.
3. The script reads the images from the directory and converts them into a binary format suitable for transmission.

4. The script sends the image data over the network to the Pico 2W.

5. Raspberry Pi Pico 2W Side:

6. The Pico 2W is connected to the same network as the computer.
7. It runs a MicroPython script that listens for incoming connections.
8. When it receives image data, it decodes the binary data and prepares it for display on the LCD screen.

3.3 Display on the LCD Screen

• The Pico 2W uses its GPIO pins to interface with the 1.3-inch IPS LCD screen.
• The MicroPython script on the Pico 2W converts the received image data into a format that the LCD screen can display.
• The image is then rendered on the LCD screen.

4. Challenges and Limitations

• MicroPython Firmware Version: The official MicroPython firmware may have limitations in handling network communication or large image data.
• CYW43 Wi-Fi Driver: The official CYW43 Wi-Fi driver for the Raspberry Pi Pico may have bugs or compatibility issues, especially with certain Wi-Fi networks.
• 2.4GHz Network Support: The Wi-Fi module on the Pico 2W only supports 2.4GHz networks, which may be less reliable or have connectivity issues compared to 5GHz networks.
• Retry Mechanism: Due to these limitations, the project may require multiple attempts to successfully send and display images.

5. Detailed Steps

5.1 Computer Script

1. Establish Network Connection:
2. The script connects to the Pico 2W using a TCP/IP connection.

3. It may use a predefined IP address or discover the Pico 2W on the network.

4. Read and Encode Images:

5. The script reads images from a specified directory.

6. Each image is encoded into a binary format (e.g., using libraries like Pillow in Python).

7. Send Image Data:

8. The binary data is sent over the network to the Pico 2W.
9. The script may include headers or metadata to indicate the size and format of the image data.

5.2 Pico 2W Script

1. Listen for Connections:
2. The Pico 2W runs a MicroPython script that sets up a TCP/IP server.

3. It listens for incoming connections from the computer.

4. Receive and Decode Image Data:

5. When data is received, the Pico 2W decodes the binary data.

6. It may use libraries like ustruct to handle the binary data.

7. Render Image on LCD:

8. The decoded image data is converted into a format suitable for the LCD screen.
9. The Pico 2W uses its GPIO pins to control the LCD screen and display the image.

6. Conclusion

This project demonstrates the possibility of sending images over a network to a microcontroller and displaying them on a small LCD screen. Despite potential challenges due to firmware and hardware limitations, it provides a practical example of remote image transmission and display using Wi-Fi and MicroPython.

Circuit Wiring

MicroPython Demo Code

• LCD.py driver Just click Stop button on the thonny IDE and create a new file, and then copy and paste follow code into it, save it to Raspberry Pi Pico 2W's /lib folder, name it LCD.py will be ok.

from machine import Pin, SPI
import time

class ST7789:
    def __init__(self):
        self.LCD_SCK = Pin(2)
        self.LCD_MOSI = Pin(3)
        self.LCD_DC = Pin(4, Pin.OUT)
        self.LCD_CS = Pin(5, Pin.OUT, value=1)
        self.LCD_RST = Pin(6, Pin.OUT, value=1)
        self.LCD_BL = Pin(7, Pin.OUT, value=0)

        self.spi = SPI(0, baudrate=1_000_000, polarity=0, phase=0, sck=self.LCD_SCK, mosi=self.LCD_MOSI)

        self.init_lcd()

    def cs_select(self):
        self.LCD_CS(0)

    def cs_deselect(self):
        self.LCD_CS(1)

    def write_cmd(self, cmd):
        self.LCD_DC(0)
        self.cs_select()
        self.spi.write(bytes([cmd]))
        self.cs_deselect()

    def write_data(self, data):
        self.LCD_DC(1)
        self.cs_select()
        self.spi.write(bytes([data]))
        self.cs_deselect()

    def address_set(self, x1, y1, x2, y2):
        self.write_cmd(0x2A)
        self.write_data(x1 >> 8)
        self.write_data(x1 & 0xFF)
        self.write_data(x2 >> 8)
        self.write_data(x2 & 0xFF)

        self.write_cmd(0x2B)
        self.write_data(y1 >> 8)
        self.write_data(y1 & 0xFF)
        self.write_data(y2 >> 8)
        self.write_data(y2 & 0xFF)

        self.write_cmd(0x2C)

    def init_lcd(self):
        self.LCD_RST(1)
        time.sleep_ms(100)
        self.LCD_RST(0)
        time.sleep_ms(100)
        self.LCD_RST(1)

        # Memory Data Access Control
        self.write_cmd(0x36);
        self.write_data(0x00);
        # RGB 5-6-5-bit
        self.write_cmd(0x3A);
        self.write_data(0x65);
        # Porch Setting
        self.write_cmd(0xB2);
        self.write_data(0x0C);
        self.write_data(0x0C);
        self.write_data(0x00);
        self.write_data(0x33);
        self.write_data(0x33);
        #  Gate Control
        self.write_cmd(0xB7);
        self.write_data(0x35);
        # VCOM Setting
        self.write_cmd(0xBB);
        self.write_data(0x19);
        # LCM Control
        self.write_cmd(0xC0);
        self.write_data(0x2C);
        # VDV and VRH Command Enable
        self.write_cmd(0xC2);
        self.write_data(0x01);
        # VRH Set
        self.write_cmd(0xC3);
        self.write_data(0x12);
        # VDV Set
        self.write_cmd(0xC4);
        self.write_data(0x20);
        # Frame Rate Control in Normal Mode
        self.write_cmd(0xC6);
        self.write_data(0x0F);
        # Power Control 1
        self.write_cmd(0xD0);
        self.write_data(0xA4);
        self.write_data(0xA1);
        # Positive Voltage Gamma Control
        self.write_cmd(0xE0);
        self.write_data(0xD0);
        self.write_data(0x04);
        self.write_data(0x0D);
        self.write_data(0x11);
        self.write_data(0x13);
        self.write_data(0x2B);
        self.write_data(0x3F);
        self.write_data(0x54);
        self.write_data(0x4C);
        self.write_data(0x18);
        self.write_data(0x0D);
        self.write_data(0x0B);
        self.write_data(0x1F);
        self.write_data(0x23);
        # Negative Voltage Gamma Control
        self.write_cmd(0xE1);
        self.write_data(0xD0);
        self.write_data(0x04);
        self.write_data(0x0C);
        self.write_data(0x11);
        self.write_data(0x13);
        self.write_data(0x2C);
        self.write_data(0x3F);
        self.write_data(0x44);
        self.write_data(0x51);
        self.write_data(0x2F);
        self.write_data(0x1F);
        self.write_data(0x1F);
        self.write_data(0x20);
        self.write_data(0x23);
        # Display Inversion On
        self.write_cmd(0x21);
        # Sleep Out
        self.write_cmd(0x11);
        time.sleep(0.1)
        self.write_cmd(0x29);

        self.LCD_BL(1)  # 开启背光

    def fill(self, x, y, length, width, data):
        self.address_set(x, y, x + length - 1, y + width - 1)
        self.LCD_DC(1)
        self.cs_select()
        self.spi.write(data)
        self.cs_deselect()

Code Explanation

This ST7789 class is a driver for an ST7789 LCD display, typically used with microcontrollers like the Raspberry Pi Pico. It provides a set of methods to initialize the display, set the display area, and write pixel data to the screen. Below is a detailed explanation of the key components and methods in this driver:

1. Initialization (__init__ method)

def __init__(self):
    self.LCD_SCK = Pin(2)
    self.LCD_MOSI = Pin(3)
    self.LCD_DC = Pin(4, Pin.OUT)
    self.LCD_CS = Pin(5, Pin.OUT, value=1)
    self.LCD_RST = Pin(6, Pin.OUT, value=1)
    self.LCD_BL = Pin(7, Pin.OUT, value=0)

    self.spi = SPI(0, baudrate=1_000_000, polarity=0, phase=0, sck=self.LCD_SCK, mosi=self.LCD_MOSI)

    self.init_lcd()

2. Chip Select Methods

def cs_select(self):
    self.LCD_CS(0)

def cs_deselect(self):
    self.LCD_CS(1)

3. Command and Data Writing

def write_cmd(self, cmd):
    self.LCD_DC(0)
    self.cs_select()
    self.spi.write(bytes([cmd]))
    self.cs_deselect()

def write_data(self, data):
    self.LCD_DC(1)
    self.cs_select()
    self.spi.write(bytes([data]))
    self.cs_deselect()

4. Address Setting

def address_set(self, x1, y1, x2, y2):
    self.write_cmd(0x2A)
    self.write_data(x1 >> 8)
    self.write_data(x1 & 0xFF)
    self.write_data(x2 >> 8)
    self.write_data(x2 & 0xFF)

    self.write_cmd(0x2B)
    self.write_data(y1 >> 8)
    self.write_data(y1 & 0xFF)
    self.write_data(y2 >> 8)
    self.write_data(y2 & 0xFF)

    self.write_cmd(0x2C)

5. Display Initialization

def init_lcd(self):
    self.LCD_RST(1)
    time.sleep_ms(100)
    self.LCD_RST(0)
    time.sleep_ms(100)
    self.LCD_RST(1)

    # ... (many initialization commands)

    self.LCD_BL(1)  # Turn on the backlight

6. Filling the Display

def fill(self, x, y, length, width, data):
    self.address_set(x, y, x + length - 1, y + width - 1)
    self.LCD_DC(1)
    self.cs_select()
    self.spi.write(data)
    self.cs_deselect()

Summary

This ST7789 class provides a comprehensive interface for controlling an ST7789 LCD display. It handles initialization, command and data writing, address setting, and pixel data transmission. By using this driver, you can easily display images or graphics on the LCD screen connected to a microcontroller.

App demo code

• main.py demo code for Raspberry Pico 2W

from LCD import ST7789
import network
import socket
import struct
import machine
import time

ssid = "REPLACE_HERE_WITH_YOUR_2.4GHZ_NETWORK_SSID"
password = "REPLACE_HERE_WITH_YOUR_2.4GHZ_NETWORK_PASSWORD"


wlan = network.WLAN(network.STA_IF)
wlan.active(True)
wlan.connect(ssid, password)

while not wlan.isconnected():
    pass

print("Connected, IP address:", wlan.ifconfig()[0])

lcd = ST7789()

if wlan.isconnected():
    PORT = 49152
    ACK_PAYLOAD = b'OK'
    sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    sock.bind(('0.0.0.0', PORT))
    sock.listen(1)
    sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)

    print(f"Listening on port {PORT}...")

def handle_client(client_sock):
    try:
        while True:
            header = client_sock.recv(8)
            if len(header) < 8:
                print("Client disconnected or header too short")
                break

            x, y, length, width = struct.unpack("!HHHH", header)
            expected_data_len = length * width * 2

            print(f"Received: x={x}, y={y}, length={length}, width={width}")

            pixel_data = bytearray()
            while len(pixel_data) < expected_data_len:
                chunk = client_sock.recv(expected_data_len - len(pixel_data))
                if not chunk:
                    print("Client disconnected during data reception")
                    return
                pixel_data.extend(chunk)

            if len(pixel_data) == expected_data_len:
                lcd.fill(x, y, length, width, pixel_data)
                print("LCD updated")

            client_sock.send(ACK_PAYLOAD)
    except Exception as e:
        print("Error:", e)
    finally:
        client_sock.close()
        print("Connection closed")

while True:
    print("Connected, IP address:", wlan.ifconfig()[0])
    client, addr = sock.accept()
    print(f"Connection from {addr}")
    handle_client(client)

Code explanations

This code is a Python script designed to run on a microcontroller (such as the Raspberry Pi Pico) with a network interface and an ST7789 LCD display. It connects to a Wi-Fi network and sets up a TCP server to receive image data from a client, which it then displays on the LCD screen. Below is a detailed explanation of the code in English:

1. Wi-Fi Connection

ssid = "mywifi"
password = "passwordofwifi"

wlan = network.WLAN(network.STA_IF)
wlan.active(True)
wlan.connect(ssid, password)

while not wlan.isconnected():
    pass

print("Connected, IP address:", wlan.ifconfig()[0])

• Purpose: Connects the device to a Wi-Fi network.
• Details:
• ssid and password store the Wi-Fi network's name and password.
• network.WLAN(network.STA_IF) initializes the Wi-Fi interface in station mode (to connect to an access point).
• wlan.active(True) activates the Wi-Fi interface.
• wlan.connect(ssid, password) attempts to connect to the specified Wi-Fi network.
• The while loop waits until the connection is established.
• Once connected, it prints the IP address assigned to the device.

2. LCD Initialization

lcd = ST7789()

• Purpose: Initializes the ST7789 LCD display.
• Details:
• ST7789 is a class (likely defined in the LCD module) that handles communication with the ST7789 display.
• This line creates an instance of the ST7789 class, initializing the display and preparing it for use.

3. TCP Server Setup

if wlan.isconnected():
    PORT = 49152  # listen port
    ACK_PAYLOAD = b'OK'
    sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    sock.bind(('0.0.0.0', PORT))
    sock.listen(1)
    sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)

    print(f"Listening on port {PORT}...")

• Purpose: Sets up a TCP server to listen for incoming connections.
• Details:
• The server listens on port 49152.
• ACK_PAYLOAD is a byte string (b'OK') that will be sent to clients as an acknowledgment.
• socket.socket(socket.AF_INET, socket.SOCK_STREAM) creates a TCP socket.
• sock.bind(('0.0.0.0', PORT)) binds the socket to all available network interfaces on the specified port.
• sock.listen(1) allows the server to accept one incoming connection at a time.
• sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1) allows the socket to reuse the address, which can be useful for quick restarts of the server.

4. Handling Client Connections

def handle_client(client_sock):
    try:
        while True:
            header = client_sock.recv(8)
            if len(header) < 8:
                print("Client disconnected or header too short")
                break

            x, y, length, width = struct.unpack("!HHHH", header)
            expected_data_len = length * width * 2  # RGB565 format, 2 bytes per pixel

            print(f"Received: x={x}, y={y}, length={length}, width={width}")

            pixel_data = bytearray()
            while len(pixel_data) < expected_data_len:
                chunk = client_sock.recv(expected_data_len - len(pixel_data))
                if not chunk:
                    print("Client disconnected during data reception")
                    return
                pixel_data.extend(chunk)

            if len(pixel_data) == expected_data_len:
                lcd.fill(x, y, length, width, pixel_data)
                print("LCD updated")

            client_sock.send(ACK_PAYLOAD)
    except Exception as e:
        print("Error:", e)
    finally:
        client_sock.close()
        print("Connection closed")

5. Main Loop

while True:
    print("Connected, IP address:", wlan.ifconfig()[0])
    client, addr = sock.accept()
    print(f"Connection from {addr}")
    handle_client(client)

Summary

This script sets up a TCP server on a Wi-Fi-connected device with an ST7789 LCD display. It listens for incoming connections, receives image data from clients, and displays the images on the LCD screen. The script handles network communication, data reception, and display updating, providing a basic framework for remote image display over a network.

Image Server

• This is a server that you can build on your own PC or raspberry Pi. you can create your own virtual environment by following steps.

Installing Python and setting up a virtual environment on Windows involves a few straightforward steps. Below is a detailed guide to help you through the process:

1. Install Python

Step 1: Download Python

1. Go to the official Python website.
2. Click on the "Download Python" button, which will download the latest version of Python for Windows.
3. Alternatively, you can choose a specific version from the "Downloads" section if you need an older version.

Step 2: Run the Installer

1. Locate the downloaded installer file (usually named python-x.x.x.exe).
2. Double-click the installer to run it.
3. In the installer window, make sure to check the box that says "Add Python to PATH". This will allow you to run Python from the command line.
4. Click on "Install Now" to start the installation process.
5. Wait for the installation to complete. Once done, you can close the installer.

Step 3: Verify Installation

1. Open a new Command Prompt window.
2. Type the following command and press Enter:

   python --version


   This should display the version of Python that you just installed, confirming that Python is correctly installed and added to your system's PATH.

2. Install virtualenv

Step 1: Install virtualenv Using pip

1. Open a Command Prompt window.
2. Install virtualenv using the Python package manager pip by running the following command:

   pip install virtualenv


   This command downloads and installs the virtualenv package.

Step 2: Verify Installation

1. After the installation completes, you can verify that virtualenv is installed by running:

   virtualenv --version


   This should display the version of virtualenv that you just installed.

3. Create a Virtual Environment

Step 1: Create a Project Directory

1. Create a directory for your project. For example, you can create a directory named my_project:

   mkdir my_project
   cd my_project


Step 2: Create a Virtual Environment

1. Inside your project directory, create a virtual environment by running:

   virtualenv venv


   This command creates a new directory named venv (you can name it anything you like) that contains the virtual environment.

Step 3: Activate the Virtual Environment

1. To activate the virtual environment, run the following command:

   .\venv\Scripts\activate


   Once activated, your command prompt will show the name of the virtual environment in the prompt (e.g., (venv)).

Step 4: Deactivate the Virtual Environment

1. When you are done working in the virtual environment, you can deactivate it by simply running:

   deactivate


Summary

1. Install Python: Download from the official website and run the installer, ensuring Python is added to your PATH.
2. Install virtualenv: Use pip install virtualenv to install the virtualenv package.
3. Create and Activate a Virtual Environment: Use virtualenv venv to create a virtual environment and .\venv\Scripts\activate to activate it.

By following these steps, you will have Python installed on your Windows system and be able to create and manage virtual environments for your projects.

To install the Python Imaging Library (PIL), you should actually install its more actively maintained fork called Pillow. Here’s how you can install Python, virtualenv, and Pillow on Windows:

Install Pillow

Once the virtual environment is activated, install Pillow using pip:

pip install pillow

Verify Installation

To verify that Pillow is installed correctly, you can run a simple Python script to check if it imports successfully:

from PIL import Image
print("Pillow is installed and working!")

Save this script as test_pillow.py and run it:

python test_pillow.py

If Pillow is installed correctly, you should see the message: Pillow is installed and working!.

Image server demo code

Get into the virtual environment, and activate it, create a python file and copy & paste following code into it and then save it as image_server.py. Below is the server-side code for sending images:

import socket
import struct
from PIL import Image
import os
import time

# Configure server information
# replace this ip address with your pico 2w' obtianed IP address.

SERVER_IP = '192.168.3.46' # Replace the IP address showed on LCD screen
SERVER_PORT = 49152  # Replace with the actual port

def rgb888_to_rgb565(r, g, b):
    """Convert RGB888 format to RGB565 format"""
    return ((r & 0xF8) << 8) | ((g & 0xFC) << 3) | (b >> 3)

def send_image_to_server(image_path):
    # Open and resize the image
    img = Image.open(image_path).resize((240, 240), Image.Resampling.LANCZOS)
    img = img.convert('RGB')

    # Create a TCP socket and connect
    sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    sock.connect((SERVER_IP, SERVER_PORT))

    # Loop through each row
    for y in range(240):
        # Construct the header (X=0, Y=y, Length=240, Width=1)
        header = struct.pack('!HHHH', 0, y, 240, 1)

        # Construct pixel data
        pixel_data = b''
        for x in range(240):
            r, g, b = img.getpixel((x, y))
            pixel_data += struct.pack('!H', rgb888_to_rgb565(r, g, b))

        # Combine the packet
        packet = header + pixel_data

        # Send the data
        sock.send(packet)
        print(f"Sent row {y}")

        # Wait for the client to return 'OK'
        while True:
            response = sock.recv(2).decode('utf-8')  # Receive a 2-byte response
            if response == 'OK':
                print(f"Received 'OK' for row {y}")
                break
            else:
                print(f"Unexpected response: {response}, waiting for 'OK'")

    # Close the connection
    sock.close()

while True:
    print("Start transmitting...")
    image_file = os.listdir(r"D:/kz-0084/PICO2W_TCP/")
    print(image_file)
    for picture in image_file:
        if picture.endswith((".png", ".jpg", ".gif")):
            full_path = os.path.join(os.getcwd(), picture)
            print(full_path)
            send_image_to_server(full_path)
            time.sleep(20)

Sending image to Pico 2w

• Step 1. Connect your Pico 2w to your PC and open thonny IDE and make sure the main.py is running.

• Step 2. Execute the image_server.py to send image to Pico 2W

python image_server.py

Explanation of the Code

1. Configuration:

2. The server's IP address (SERVER_IP) and port (SERVER_PORT) are defined. These should match the IP address and port of the TCP server running on the Raspberry Pi Pico 2W.

3. RGB Conversion Function:

4. rgb888_to_rgb565(r, g, b): Converts RGB888 (24-bit) color format to RGB565 (16-bit) format. This is necessary because the ST7789 display expects 16-bit color data.

5. Image Sending Function:

6. send_image_to_server(image_path):

   • Opens an image file and resizes it to 240x240 pixels.
   • Converts the image to RGB format.
   • Establishes a TCP connection to the server.
   • Sends the image data row by row:
   • Constructs a header with the row's coordinates and dimensions.
   • Converts each pixel to RGB565 format and appends it to the pixel data.
   • Combines the header and pixel data into a packet and sends it to the server.
   • Waits for an acknowledgment ('OK') from the server before sending the next row.
   • Closes the connection after all rows are sent.

7. Main Loop:

8. Continuously scans a directory (D:/kz-0084/PICO2W_TCP/) for image files.
9. Sends each image file to the server using the send_image_to_server function.
10. Waits for 6 seconds between sending each image.

Key Points

• Directory Scanning: The script scans a specified directory for image files (.png, .jpg, .gif).
• Image Processing: Each image is resized to fit the display dimensions (240x240) and converted to RGB format.
• Network Communication: The script establishes a TCP connection to the server, sends image data row by row, and waits for an acknowledgment after each row.
• Error Handling: The script waits for the expected 'OK' response from the server. If an unexpected response is received, it continues waiting until the correct response is received.

This script effectively sends images to a remote display over a network, ensuring that each row of pixel data is correctly acknowledged by the server.

Experiment 12: 1.3inch IPS_LCD display imagebox

Application Scenario

Build an imagebox by using the same circuit as Experiment 11.

Working Principle

Using the Pico 2W and a 1.3-inch IPS-LCD together to create a picture box that loops through images can be quite fun. By using Python code on a computer to convert favorite images into binary bin files, uploading them to the imgs directory of the Pico 2W via Thonny, and then displaying each image using MicroPython, the process can be very enjoyable. Below is the complete method of operation.

Circuit Wiring

How-To

• Step 1. Preparation
• Step 2. Convert image to binary file
• Step 3. Upload binary file to Raspberry Pi Pico 2W
• Step 4. Upload main.py file to Raspberry Pi Pico 2W

First, you need to create an empty directory on your computer. Inside this directory, create two subdirectories: one named input and the other named output. Place the images you want to display on the 1.3-inch IPS-LCD screen into the input directory, ensuring that the file formats are either *.jpg, *.png, or *.jpeg.

Make sure you have a Python interpreter installed on your computer. If you don't have one, you can download and install Python from the official website at python.org. During the installation process, ensure that the option to add Python to your system's PATH is selected. This will allow you to run Python from the command line.

If you have just installed the Python interpreter, you will need to install the Pillow library using the pip command. You can do this by running the following command in your terminal or command prompt:

pip install pillow

For more detailed instructions, please refer to the documentation of the previous project.

Next, create a file named convert.py and fill it with the necessary code. Once the file is ready, execute it in your current environment by running:

python convert.py

If the process completes successfully, check the output directory to see if the corresponding *.bin files have been generated. If the files are successfully created, you can proceed with the subsequent steps.

Demo Code for Convertor

import os
from PIL import Image

def convert_to_rgb565(r, g, b):
    return ((r & 0xF8) << 8) | ((g & 0xFC) << 3) | (b >> 3)

def convert_image(source_path, dest_path):
    img = Image.open(source_path).convert("RGB")
    img = img.resize((240, 240))

    with open(dest_path, "wb") as f:
        for y in range(img.height):
            for x in range(img.width):
                r, g, b = img.getpixel((x, y))
                pixel = convert_to_rgb565(r, g, b)
                f.write(pixel.to_bytes(2, 'big'))

def batch_convert(source_dir, dest_dir):
    os.makedirs(dest_dir, exist_ok=True)
    for filename in os.listdir(source_dir):
        if filename.lower().endswith(('.png', '.jpg', '.jpeg')):
            source = os.path.join(source_dir, filename)
            dest = os.path.join(dest_dir, f"{os.path.splitext(filename)[0]}.bin")
            convert_image(source, dest)

# convert the image
batch_convert("input", "output")

Convert images

Check output folder

Upload converted binary file to Pico 2W

• Step.1 Open Thonny IDE and click View, select Files.

• Step.2 Navigate to binary files location.

• Create a folder called imgs on Pico 2W

• Enter into imgs folder and upload the binary files into it.

Move to next step, copy and paste following demo code into Raspberry Pi Pico 2W. and save it to pico 2W, named it main.py.

Demo code

• On Raspberry Pi Pico 2W

import os
import time
from LCD import ST7789

def show_images():
    lcd = ST7789()  # Initialize the ST7789 LCD display driver
    img_dir = "/imgs"  # Define the directory where the image files are stored

    while True:  # Loop indefinitely to continuously display images
        # Get all .bin files in the directory
        files = [f for f in os.listdir(img_dir) if f.endswith(".bin")]
        files.sort()  # Sort the files by name

        for filename in files:  # Iterate through each file in the sorted list
            filepath = f"{img_dir}/{filename}"  # Construct the full file path
            with open(filepath, "rb") as f:  # Open the file in binary read mode
                # Refresh line by line
                for y in range(240):  # Loop through each line (assuming 240 lines)
                    # Read one line of data (240 pixels * 2 bytes per pixel = 480 bytes)
                    line_data = f.read(480)
                    if not line_data:  # If no data is read, break the loop
                        break
                    # Draw the current line (starting at y, with a height of 1 pixel)
                    lcd.fill(0, y, 240, 1, line_data)  # Display the line on the LCD
            time.sleep(1)  # Display each image for 1 second

# Start the image display
show_images()

Image box

Code Explanation

The provided Python code is designed to display images stored as binary files on a display screen using the ST7789 LCD driver.

1. Imports:
2. os: Used to interact with the operating system, specifically to list files in a directory.
3. time: Provides the sleep function to introduce delays.

4. ST7789 from LCD: This is a driver for the ST7789 LCD display, which handles the low-level operations of displaying images on the screen.

5. Function Definition:

6. def show_images(): Defines a function to display images.

7. Initialization:

8. lcd = ST7789(): Initializes the LCD display driver.

9. img_dir = "/img": Specifies the directory where the binary image files are stored.

10. Infinite Loop:

11. while True: Ensures that the image display process runs continuously.

12. File Handling:

13. files = [f for f in os.listdir(img_dir) if f.endswith(".bin")]: Lists all files in the specified directory that have a .bin extension.

14. files.sort(): Sorts the files alphabetically by name.

15. Image Display:

16. The code iterates through each file in the sorted list.
17. For each file, it opens the file in binary read mode.
18. It reads the image data line by line (assuming each image is 240 lines high and each pixel is represented by 2 bytes).
19. The lcd.fill function is used to display each line of the image on the LCD screen.

20. After displaying an image, the code pauses for 1 second using time.sleep(1).

21. Continuous Display:

22. The while True loop ensures that the process repeats indefinitely, continuously cycling through the images.

This code is designed for a specific hardware setup involving an ST7789 LCD display and assumes that the images are stored as binary files in the /img directory. It reads these files line by line and displays them on the screen, creating a simple image slideshow.

Experiment 13: Using PS2 Joystick

Application Scenario

This experiment demonstrates how to interface a PS2 joystick with a Raspberry Pi Pico 2W. The joystick will be used to control various applications, such as moving a cursor on a screen, navigating through menus, or controlling a robot.

Working Principle

The PS2 joystick communicates with the Raspberry Pi Pico 2W via analog and digital signals. The analog signals from the joystick's axes are read using the ADC (Analog to Digital Converter) pins on the Pico, while the digital signal from the joystick's button is read using a GPIO pin.

Circuit Wiring

Here's how to wire the PS2 joystick to the Raspberry Pi Pico 2W:

• 1. Axis X: Connect to ADC pin 26 (GPIO 26)
• 1. Axis Y: Connect to ADC pin 27 (GPIO 27)
• 1. Button: Connect to GPIO pin 15
• 1. VCC: Connect to 3.3V or 5V(VBUS) on the Pico
• 1. GND: Connect to a Ground pin on the Pico

Details:

Circuit Diagram

    PS2 Joystick        Raspberry Pi Pico 2W
    ------------------  -------------------------
    Axis X       --> ADC 26 (GPIO 26)
    Axis Y       --> ADC 27 (GPIO 27)
    Button       --> GPIO 15
    VCC          --> 3.3V / 5V (VBUS)
    GND          --> GND

MicroPython Demo Code

from machine import Pin, ADC
import utime

# Initialize the ADC pins for the joystick axes
axis_x = ADC(26)  # Axis X connected to ADC 26
axis_y = ADC(27)  # Axis Y connected to ADC 27

# Initialize the GPIO pin for the joystick button
button = Pin(15, Pin.IN, Pin.PULL_UP)  # Button connected to GPIO 15, with pull-up

def read_joystick():
    # Read the X and Y axis values from the joystick
    x_value = axis_x.read_u16()  # Read the 16-bit value from X axis
    y_value = axis_y.read_u16()  # Read the 16-bit value from Y axis
    return x_value, y_value

def read_button():
    # Read the button state
    return button.value() == 0  # Button is pressed if the value is 0 (active low)

while True:
    # Read the joystick and button states
    x, y = read_joystick()
    button_pressed = read_button()

    # Print the status information
    print(f"Joystick X: {x}, Y: {y}, Button: {'Pressed' if button_pressed else 'Not Pressed'}")

    # Simple logic demonstration
    if button_pressed:
        print("Button is pressed!")
    else:
        print("Button is not pressed.")

    utime.sleep(0.1)  # Small delay to avoid overwhelming the output

On Thonny IDE:

Code Explanation

• Initialization:
• The ADC pins for the joystick axes (X and Y) are initialized.
• The GPIO pin for the joystick button is set up as an input with a pull-up resistor.
• Reading Joystick:
• The read_joystick function reads the 16-bit values from the ADC pins for the X and Y axes.
• The read_button function checks the state of the button by reading the GPIO pin.
• Main Loop:
• The main loop continuously reads the joystick and button states and prints them.
• It also includes a simple logic to print a message when the button is pressed.

This experiment provides a basic demonstration of how to interface and use a PS2 joystick with a Raspberry Pi Pico 2W using MicroPython.

Experiment 14: MPU6050 Gyroscope and Accelerometer Module

Application Scenario

This experiment demonstrates how to interface an MPU6050 sensor module with a Raspberry Pi Pico 2W. The MPU6050, which includes a 3-axis gyroscope and a 3-axis accelerometer, can be used for various applications such as motion detection, orientation sensing, and robotics.

Working Principle

The MPU6050 communicates with the Raspberry Pi Pico 2W via the I2C protocol. It provides 6-axis motion tracking by combining the data from the accelerometer and gyroscope, allowing for precise motion and orientation detection.

Circuit Wiring

Here's how to wire the MPU6050 to the Raspberry Pi Pico 2W:

1. VCC: Connect to 3.3V on the Pico
2. GND: Connect to a Ground pin on the Pico
3. SDA: Connect to GPIO 16 (SDA pin on Pico)
4. SCL: Connect to GPIO 17 (SCL pin on Pico)

Circuit Diagram

    MPU6050           Raspberry Pi Pico 2W
    ------------------  -------------------------
    VCC (Pin 18)       --> 3.3V
    GND (Pin 19)       --> GND
    SDA (Pin 21)       --> GPIO 16
    SCL (Pin 22)       --> GPIO 17

Demo Code

• Step 1. upload the mpu6050.py library to Raspberry Pi Pico 2WH as following figures:

Copy following codes into a new file and save it to /lib folder:

• full code of mpu6050.py

import machine


class accel():
    def __init__(self, i2c, addr=0x68):
        self.iic = i2c
        self.addr = addr
        #self.iic.start()
        self.iic.writeto(self.addr, bytearray([107, 0]))
        #self.iic.stop()

    def get_raw_values(self):
        #self.iic.start()
        a = self.iic.readfrom_mem(self.addr, 0x3B, 14)
        #self.iic.stop()
        return a

    def get_ints(self):
        b = self.get_raw_values()
        c = []
        for i in b:
            c.append(i)
        return c

    def bytes_toint(self, firstbyte, secondbyte):
        if not firstbyte & 0x80:
            return firstbyte << 8 | secondbyte
        return - (((firstbyte ^ 255) << 8) | (secondbyte ^ 255) + 1)

    def get_values(self):
        raw_ints = self.get_raw_values()
        vals = {}
        vals["AcX"] = self.bytes_toint(raw_ints[0], raw_ints[1])
        vals["AcY"] = self.bytes_toint(raw_ints[2], raw_ints[3])
        vals["AcZ"] = self.bytes_toint(raw_ints[4], raw_ints[5])
        vals["Tmp"] = self.bytes_toint(raw_ints[6], raw_ints[7]) / 340.00 + 36.53
        vals["GyX"] = self.bytes_toint(raw_ints[8], raw_ints[9])
        vals["GyY"] = self.bytes_toint(raw_ints[10], raw_ints[11])
        vals["GyZ"] = self.bytes_toint(raw_ints[12], raw_ints[13])
        return vals  # returned in range of Int16
        # -32768 to 32767

    def sleep(self):
        self.iic.start()
        self.iic.writeto_mem(self.addr, 0x6B, b'\x40')
        self.iic.stop()

    def wakeup(self):
        from time import sleep
        self.iic.start()
        self.iic.writeto_mem(self.addr, 0x6B, b'\x80')
        self.iic.stop()
        sleep(0.05)
        self.iic.start()
        self.iic.writeto_mem(self.addr, 0x68, b'\x07')
        self.iic.stop()
        sleep(0.05)
        self.iic.start()
        self.iic.writeto_mem(self.addr, 0x68, b'\x00')
        self.iic.stop()
        sleep(0.05)
        self.iic.start()
        self.iic.writeto_mem(self.addr, 0x6B, b'\x00')
        self.iic.stop()

    def val_test(self):  # ONLY FOR TESTING! Also, fast reading sometimes crashes IIC
        from time import sleep
        while 1:
            print(self.get_values())
            sleep(0.05)

select Raspberry Pi pico:

Navigate to lib folder:

Save it as mpu6050.py, please make sure the name is mpu6050.py, otherwise your main code may not work properly.

Demo code

• Open a new file and copy and paste following code:

from machine import Pin, I2C
from time import sleep
from mpu6050 import accel
import math


imu_data = {}

imu_i2c = I2C(0, scl=Pin(17), sda=Pin(16))

imu = accel(imu_i2c)

def get_mpu_data():
    """get imu data from mpu6050"""
    imu_data = imu.get_values()

    ax = imu_data['AcX']
    ay = imu_data['AcY']
    az = imu_data['AcZ']
    gx = imu_data['GyX']
    gy = imu_data['GyY']
    gz = imu_data['GyZ']

    return ax, ay, az, gx, gy, gz

def calculate_roll_pitch(ax, ay, az):
    """ calculate roll and pitch """
    roll = math.atan2(ay, az) * 180.0 / math.pi
    pitch = math.atan2(-ax, math.sqrt(ay * ay + az * az )) * 180.0 / math.pi
    return roll, pitch


def calculate_yaw(gx, gy, gz, dt):
    """ calculate yaw angle """
    global yaw
    yaw += gz * dt
    yaw = (yaw + 360) % 360
    return yaw


def main():
    """main loop"""
    global yaw
    yaw = 0   # init yaw angle to 0
    dt = 0.05 # time interval in seconds

    while True:
        ax, ay, az, gx, gy, gz = get_mpu_data()  # get data from mpu6050
        roll, pitch = calculate_roll_pitch(ax, ay, az)
        yaw = calculate_yaw(gx, gy, gz, dt)

        print(f"Roll: {roll:.2f}°, Pitch: {pitch:.2f}°, Yaw:{yaw:.2f}°")
        sleep(dt)


if __name__=="__main__":
    main()

when the program running you will see the output like:

once you move the experiment platform, the data will be changed as following figure.

Code Explanation

1. Initialization

import machine
import math
from time import sleep
from mpu6050 import accel

i2c = machine.I2C(0, scl=machine.Pin(1), sda=machine.Pin(0), freq=400000)
mpu = accel(i2c)

2. Data Acquisition

def get_mpu_data():
    data = mpu.get_values()
    ax = data["AcX"]
    ay = data["AcY"]
    az = data["AcZ"]
    gx = data["GyX"]
    gy = data["GyY"]
    gz = data["GyZ"]
    return ax, ay, az, gx, gy, gz

3. Calculating Roll and Pitch

def calculate_roll_pitch(ax, ay, az):
    roll = math.atan2(ay, az) * 180.0 / math.pi
    pitch = math.atan2(-ax, math.sqrt(ay * ay + az * az)) * 180.0 / math.pi
    return roll, pitch

4. Calculating Yaw

def calculate_yaw(gx, gy, gz, dt):
    global yaw
    yaw += gz * dt
    yaw = (yaw + 360) % 360
    return yaw
